09732645801 - HARTING

Description: Board Euro Connector, 64 Contact(s), 2 Row(s), Female, Right Angle, Solder Terminal

Download 09732645801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09732645801 - HARTING - PCB symbol
click to zoom
PCB Footprints

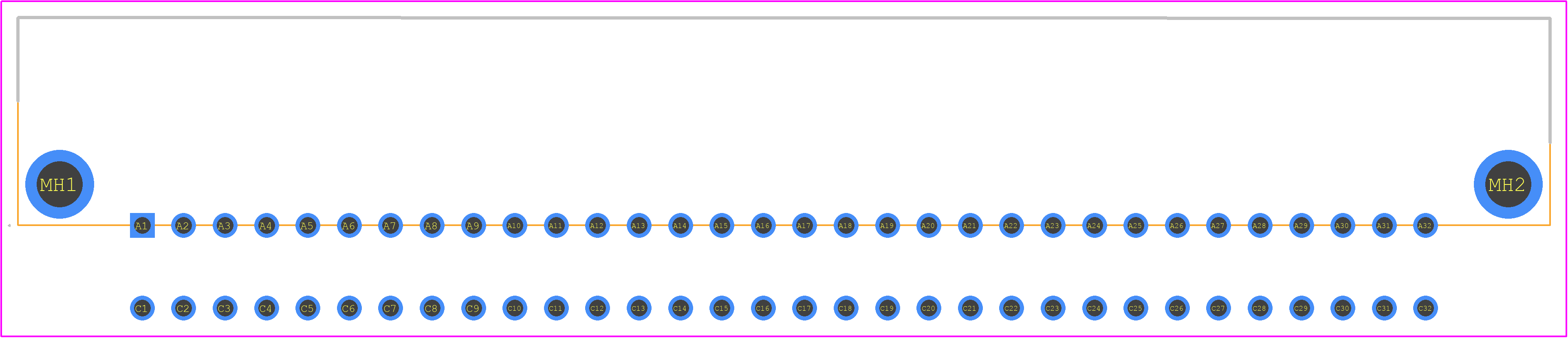

09732645801 - HARTING PCB footprint - Other - Other - 09732645801-4
click to zoom
3D Models
09732645801 - HARTING - 3D model - Other - 09732645801-4
click to zoom

09732645801 Details

  • Manufacturer Part Number:

    09732645801

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Gender:

    FEMALE

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09732645801 Overview

Use the download button to access the 09732645801 schematic symbol, PCB footprint, and 3D model.
