09732647801 - HARTING

Description: DIN R female angled, 64pin, PL3 (rows a,c loaded)

Download 09732647801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09732647801 - HARTING - PCB symbol
click to zoom
PCB Footprints

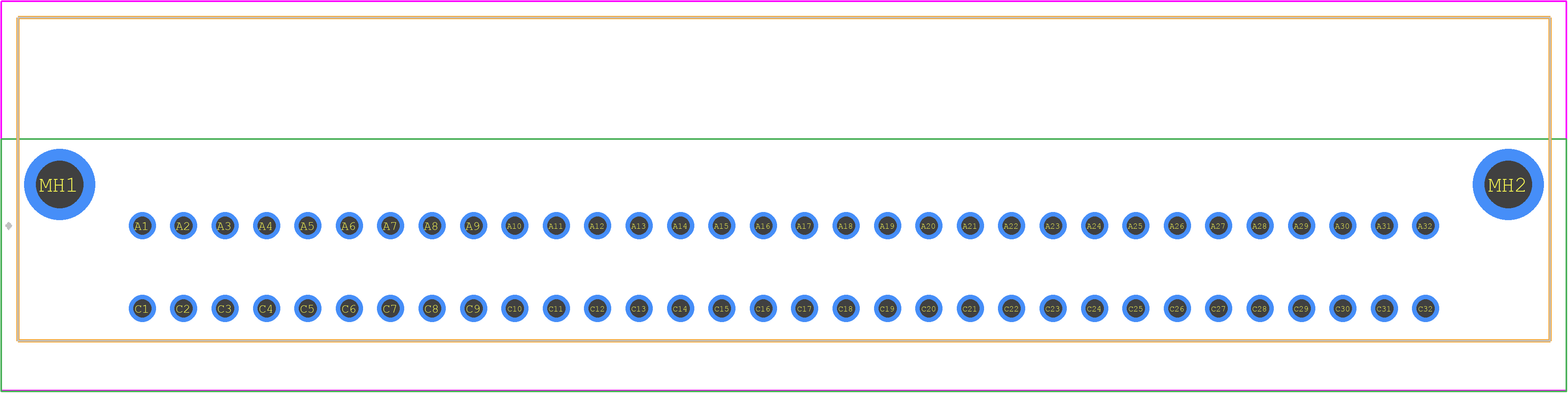

09732647801 - HARTING PCB footprint - Other - Other - 09732647801-1
click to zoom
3D Models
09732647801 - HARTING - 3D model - Other - 09732647801-1
click to zoom

09732647801 Details

  • Manufacturer Part Number:

    09732647801

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARD: IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

  • UL Flammability Code:

    94V-0

09732647801 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the connector is 0.5 Nm to 1.5 Nm, as specified in the HARTING application notes.
  • Yes, the 09732647801 connector is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
  • Yes, the connector is designed to withstand high-vibration environments, making it suitable for use in industrial, transportation, and other applications where vibration is a concern.
  • The maximum operating temperature of the 09732647801 connector is 125°C, as specified in the datasheet.
  • Yes, the 09732647801 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09732647801 Overview

Use the download button to access the 09732647801 schematic symbol, PCB footprint, and 3D model.
