Technical Content
Part Image

09751206504 - HARTING

Description: DIN 3Q male straight 20pin, 5.0mm press-in, PL2, w/o fixing flange

Download 09751206504 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

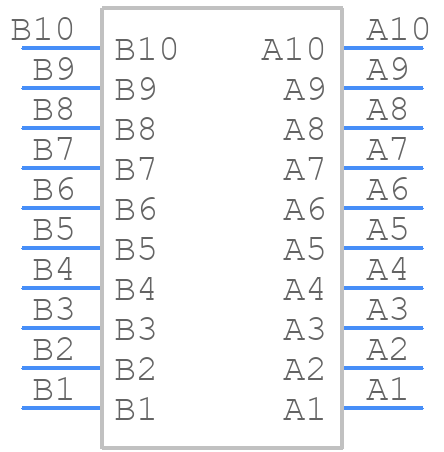

Symbol
09751206504 - HARTING - PCB symbol
click to zoom

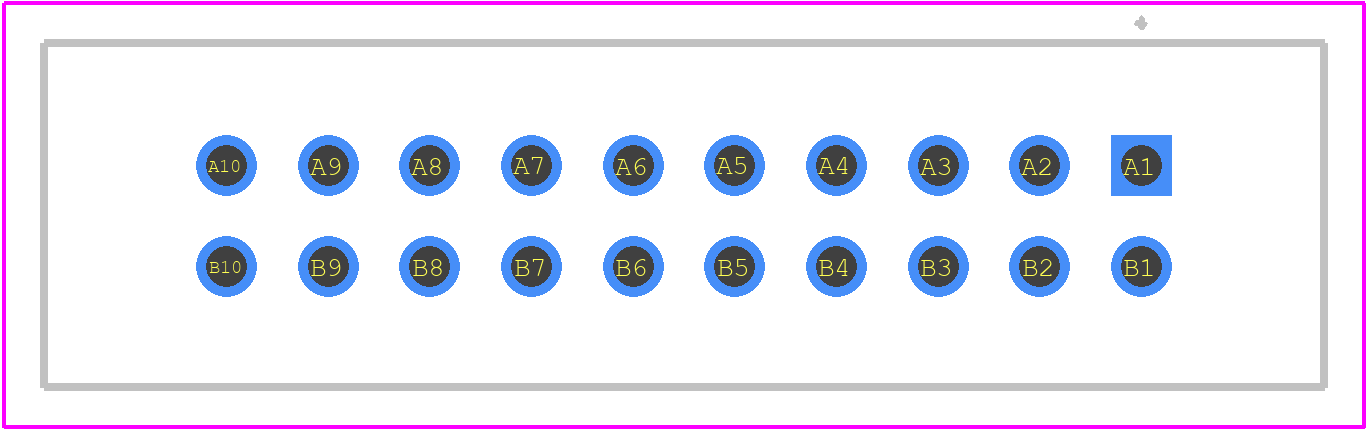

PCB Footprints
09751206504 - HARTING PCB footprint - Other - Other - 09751206504-2
click to zoom
3D Models
09751206504 - HARTING - 3D model - Other - 09751206504-2
click to zoom

09751206504 Details

  • Manufacturer Part Number:

    09751206504

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09751206504 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09751206504 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09751206504 connector is designed to be used in harsh environments, including outdoor applications, and meets the IP67 rating for protection against dust and water ingress.
  • Yes, the 09751206504 connector is designed to withstand high-vibration environments, with a vibration resistance of up to 10g according to IEC 60068-2-6.
  • The 09751206504 connector has an operating temperature range of -40°C to +125°C, making it suitable for use in a wide range of applications.
  • Yes, the 09751206504 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09751206504 Overview

Use the download button to access the 09751206504 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09751, or try a keyword search, such as Headers and Edge Type Connectors
