09751206974 - HARTING

Description: DIN 3Q male straight 20pin, 13mm press-in, PL2 (posts PL3 Au)

Download 09751206974 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

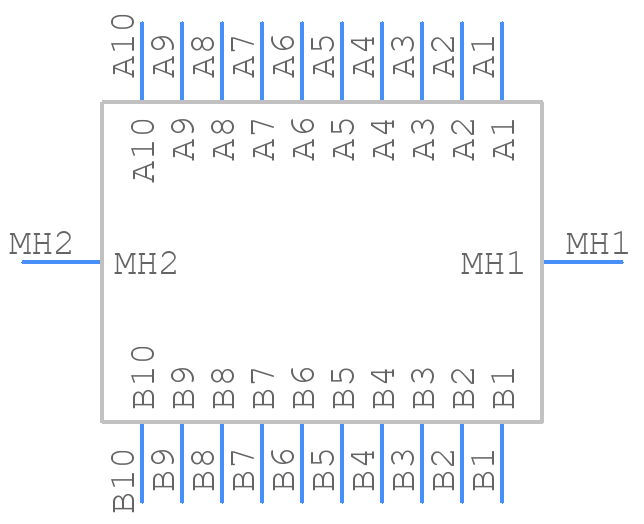

09751206974 - HARTING - PCB symbol
click to zoom
PCB Footprints

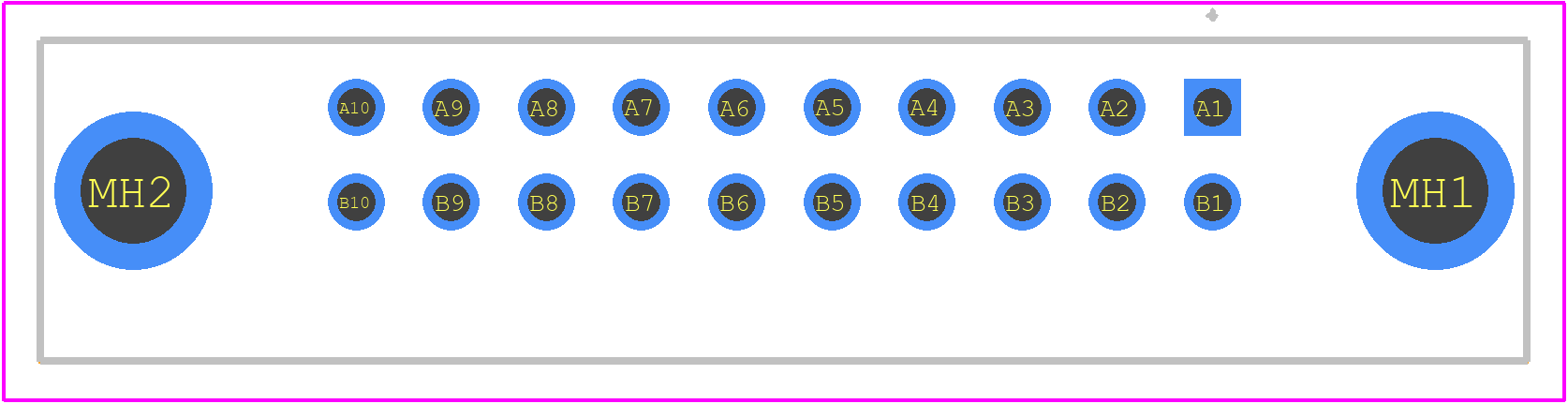

09751206974 - HARTING PCB footprint - Other - Other - 09751206974-2
click to zoom
3D Models
09751206974 - HARTING - 3D model - Other - 09751206974-2
click to zoom

09751206974 Details

  • Manufacturer Part Number:

    09751206974

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09751206974 Overview

Use the download button to access the 09751206974 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09751, or try a keyword search, such as Headers and Edge Type Connectors
