09752206804 - HARTING

Description: DIN 3Q female angled, 20pin, PL2, THR/SMC

Download 09752206804 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

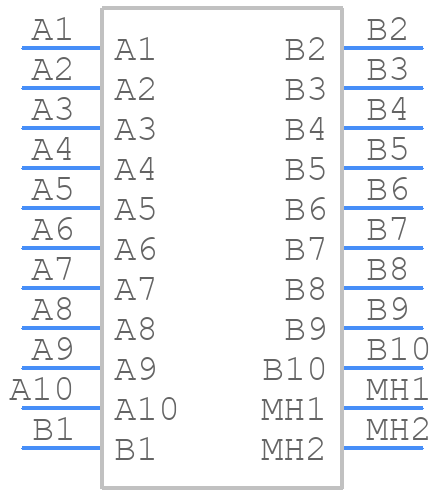

09752206804 - HARTING - PCB symbol
click to zoom
PCB Footprints

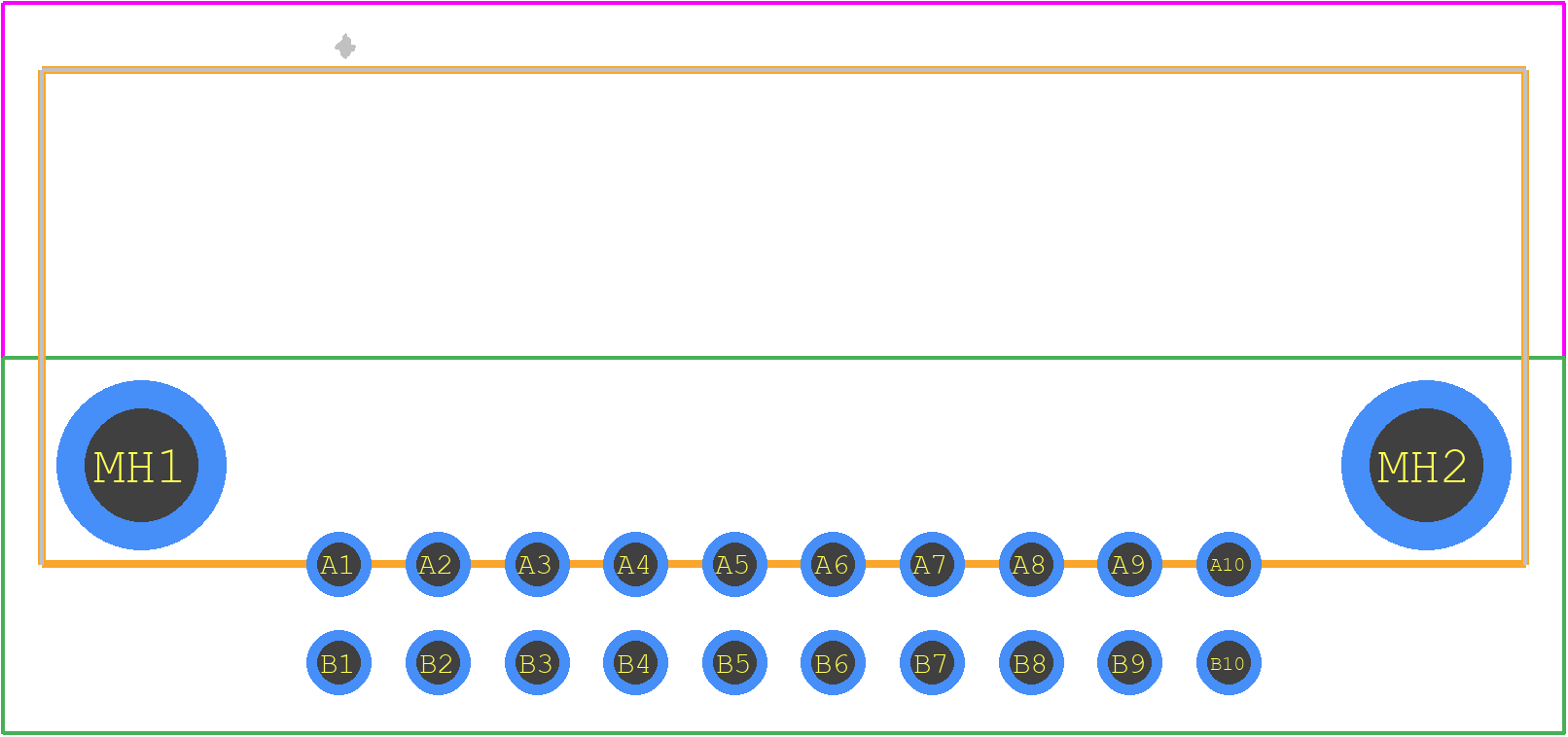

09752206804 - HARTING PCB footprint - Other - Other - 09752206804-3
click to zoom
3D Models
09752206804 - HARTING - 3D model - Other - 09752206804-3
click to zoom

09752206804 Details

  • Manufacturer Part Number:

    09752206804

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Material:

    NOT SPECIFIED

09752206804 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09752206804 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09752206804 connector is designed for outdoor use and can withstand harsh environmental conditions, including moisture, dust, and extreme temperatures.
  • Yes, the 09752206804 connector is designed to withstand high-vibration applications, such as those found in industrial machinery, transportation, and construction equipment.
  • The maximum operating temperature of the 09752206804 connector is 125°C, making it suitable for use in high-temperature applications.
  • Yes, the 09752206804 connector is part of the HARTING Han series and is compatible with other Han series connectors, allowing for easy integration into existing systems.
