Technical Content
Part Image

09792966801 - HARTING

Description: DIN R (HE11) female angled, 96pin, PL2

Download 09792966801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09792966801 - HARTING - PCB symbol
click to zoom

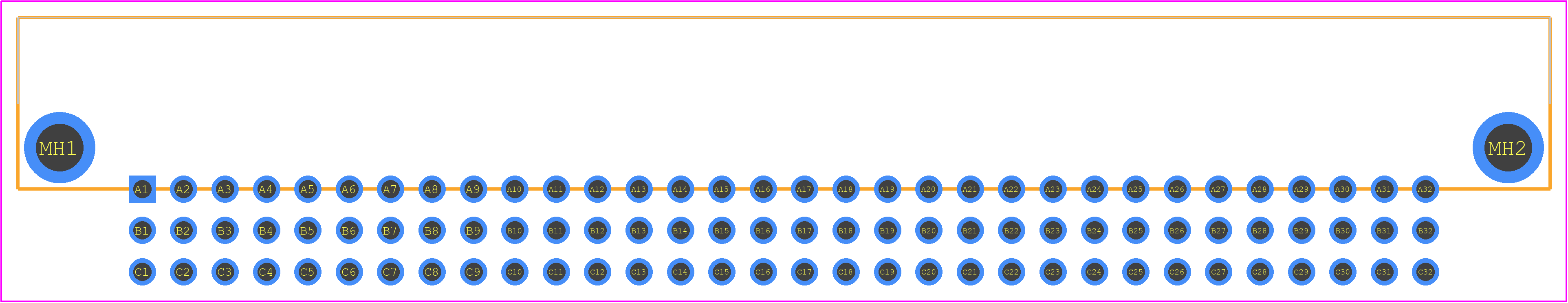

PCB Footprints
09792966801 - HARTING PCB footprint - Other - Other - 09792966801-1
click to zoom
3D Models
09792966801 - HARTING - 3D model - Other - 09792966801-1
click to zoom

09792966801 Details

  • Manufacturer Part Number:

    09792966801

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Germany

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    STANDARDS: MIL-C-55302; DIN 41612; IEC 60603-2

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    YES

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    96

  • UL Flammability Code:

    94V-0

09792966801 Frequently Asked Questions (FAQs)

  • The operating temperature range of the 09792966801 connector is -40°C to 125°C, making it suitable for use in a wide range of industrial and automotive applications.
  • Yes, the 09792966801 connector is designed to withstand vibration and shock according to IEC 61373 Cat. 2 and EN 61373 Cat. 2 standards, making it suitable for use in harsh environments.
  • Yes, the 09792966801 connector is designed to operate in high-humidity environments and meets the requirements of IEC 60529 IP67 and IP69K standards for ingress protection.
  • The 09792966801 connector has a mating cycle life of at least 500 cycles, making it suitable for use in applications where frequent mating and unmating is required.
  • Yes, the 09792966801 connector is part of the HARTING Han series and is compatible with other Han series connectors, making it easy to integrate into existing systems.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09792966801 Overview

Use the download button to access the 09792966801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09792, or try a keyword search, such as Headers and Edge Type Connectors
