Technical Content
Part Image

09794646801 - HARTING

Description: DIN R (HE11) female angled, 64pin, w/ board locks, PL2 (row a loaded)

Download 09794646801 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
09794646801 - HARTING - PCB symbol
click to zoom

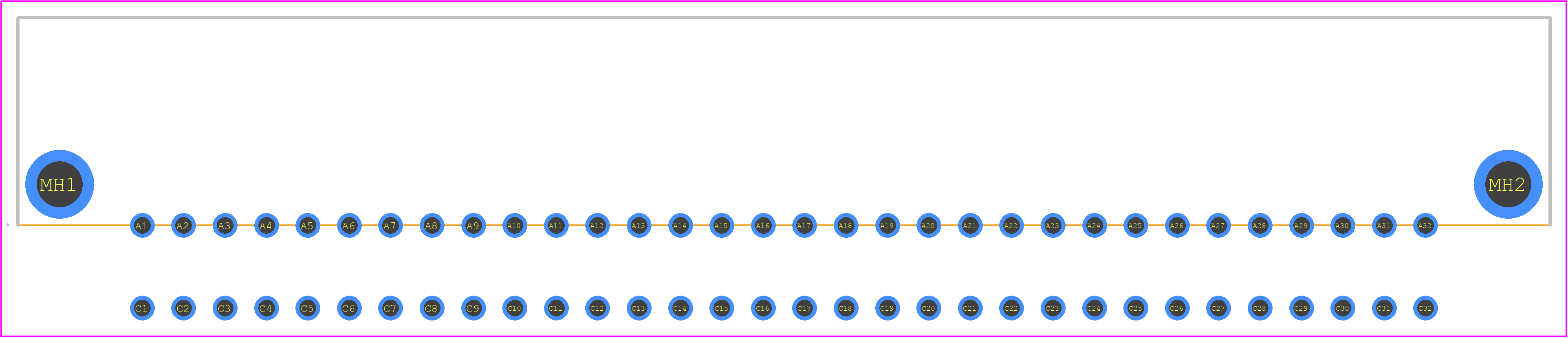

PCB Footprints
09794646801 - HARTING PCB footprint - Other - Other - 09794646801-2
click to zoom
3D Models
09794646801 - HARTING - 3D model - Other - 09794646801-2
click to zoom

09794646801 Details

  • Manufacturer Part Number:

    09794646801

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Italy

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    HARTING Technology Group

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED

  • Connector Type:

    BOARD EURO CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    YES

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    3

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    64

09794646801 Frequently Asked Questions (FAQs)

  • The recommended torque for screwing the 09794646801 connector is 0.5 Nm to 1.5 Nm, depending on the specific application and environmental conditions.
  • Yes, the 09794646801 connector is designed to withstand high-vibration applications, with a vibration resistance of up to 10g (according to IEC 61373 Cat. 2).
  • Yes, the 09794646801 connector is designed for use in harsh environments, with an operating temperature range of -40°C to +125°C and a humidity rating of IP67 (dust-tight and protected against immersion in water up to 1m).
  • The 09794646801 connector has a mating cycle life of at least 500 cycles, depending on the specific application and environmental conditions.
  • The 09794646801 connector is designed to be compatible with other HARTING connectors and some third-party connectors, but compatibility should be verified before use.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

09794646801 Overview

Use the download button to access the 09794646801 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 09794, or try a keyword search, such as Headers and Edge Type Connectors
