0999040.ZXN - LITTELFUSE

Description: 40 A 58 V Fuse Automotive Requires Holder Blade, Max

Download 0999040.ZXN Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this 0999040.ZXN model

Email notifications will be applied after download.

Send part feedback

Symbol

0999040.ZXN - LITTELFUSE - PCB symbol

PCB Footprints

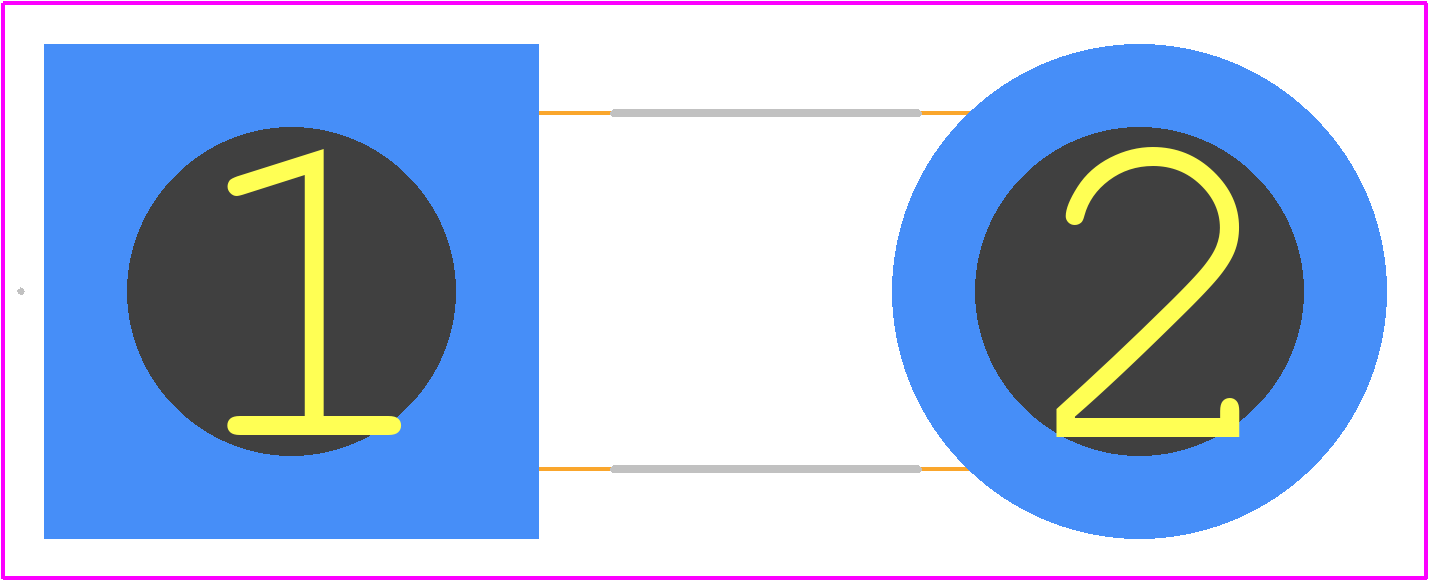

0999040.ZXN - LITTELFUSE PCB footprint - Other - Other - 0999040.ZXN-7

3D Models

0999040.ZXN - LITTELFUSE - 3D model - Other - 0999040.ZXN-7

Datasheet Download Datasheet
Stock & Prices Price & Stock for 0999040.ZXN
Part Number 0999040.ZXN
Manufacturer LITTELFUSE
Pin Count 2
Part Category Fuse
Package Category Other
Footprint Name Other - 0999040.ZXN-7
Released Date Aug 12, 2025
Last Modified Date Aug 12, 2025 10:21 AM UTC
Pinout / Pin List Click Here (Member Only)

0999040.ZXN Details

Manufacturer Part Number:
0999040.ZXN
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
Manufacturer:
Littelfuse Inc
YTEOL:
7.18
Blow Characteristic:
SLOW
Body Breadth:
8.9 mm
Body Height:
21.6 mm
Body Length or Diameter:
29.2 mm
Circuit Protection Type:
ELECTRIC FUSE
JESD-609 Code:
e4
Joule Integral-Nom:
8500 J
Mounting Feature:
INLINE/HOLDER
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Packing Method:
BULK
Rated Breaking Capacity:
1000 A
Rated Current:
40 A
Rated Voltage(DC):
58 V
Reference Standard:
CSA; UL
Surface Mount:
NO
Terminal Finish:
SILVER
Terminal Shape:
TAB/BLADE
Trip Time or Delay:
0.04 s

0999040.ZXN Frequently Asked Questions (FAQs)

The recommended mounting torque for the 0999040.ZXN is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the 0999040.ZXN is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
The maximum operating temperature range for the 0999040.ZXN is -40°C to 150°C (-40°F to 302°F).
Yes, the 0999040.ZXN is designed for high-reliability applications and meets the requirements of various industry standards, including AEC-Q200.
The typical response time for the 0999040.ZXN is 1-2 ms (milliseconds).
