0FLQ002.T - LITTELFUSE

Description: Industrial & Electrical Fuses 2A 500VAC Midget

Download 0FLQ002.T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
0FLQ002.T - LITTELFUSE - PCB symbol
click to zoom

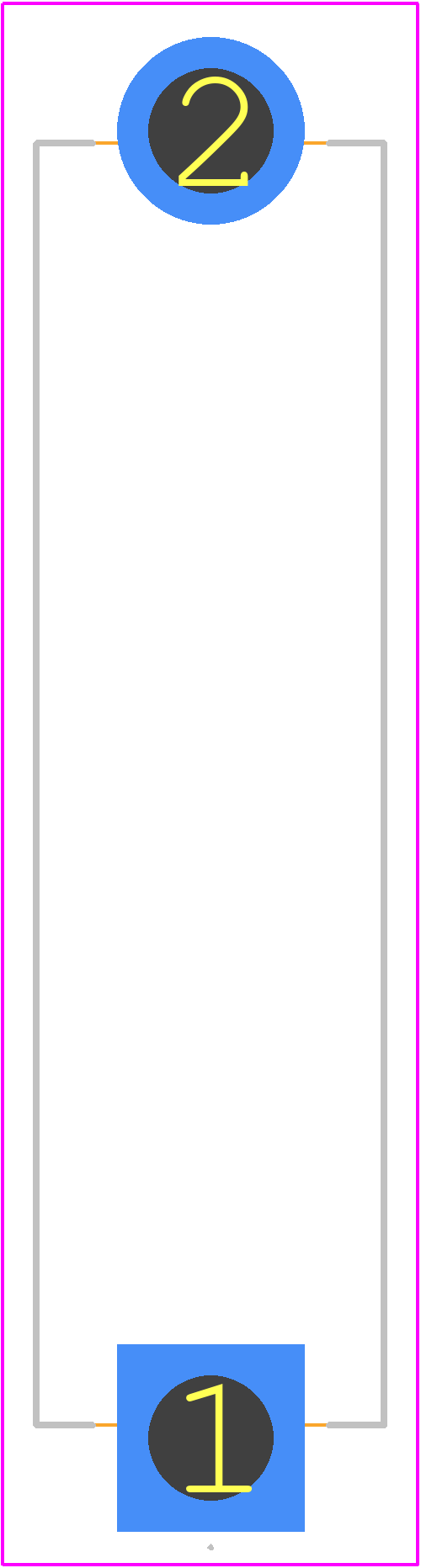

PCB Footprints
0FLQ002.T - LITTELFUSE PCB footprint - Other - Other - 0FLQ002.T-3
click to zoom
3D Models
0FLQ002.T - LITTELFUSE - 3D model - Other - 0FLQ002.T-3
click to zoom

0FLQ002.T Details

  • Manufacturer Part Number:

    0FLQ002.T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    7.06

  • Blow Characteristic:

    TIME DELAY

  • Body Height:

    38.1 mm

  • Body Length or Diameter:

    10.31 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • Fuse Size:

    10x38mm

  • Mounting Feature:

    INLINE/HOLDER

  • Rated Breaking Capacity:

    10000 A

  • Rated Current:

    2 A

  • Rated Voltage(AC):

    500 V

  • Rated Voltage(DC):

    300 V

  • Reference Standard:

    CE; CSA; UL

  • Surface Mount:

    NO

  • Terminal Shape:

    END CAP

0FLQ002.T Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the 0FLQ002.T is between 250°C to 260°C for a maximum of 10 seconds.
  • Yes, the 0FLQ002.T is compatible with lead-free soldering processes and meets the requirements of the RoHS directive.
  • The maximum surge current rating for the 0FLQ002.T is 100 A for a duration of 8.3 ms.
  • Yes, the 0FLQ002.T is rated for operation up to 150°C, making it suitable for high-temperature applications.
  • Yes, the 0FLQ002.T meets the requirements of the AEC-Q200 standard for automotive applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0FLQ002.T Overview

Use the download button to access the 0FLQ002.T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 0FLQ0, or try a keyword search, such as Electric Fuses
