0SPF012.HXR - LITTELFUSE

Description: Industrial & Electrical Fuses 1000VDC 12AMP Midget PCB Tabs

Download 0SPF012.HXR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

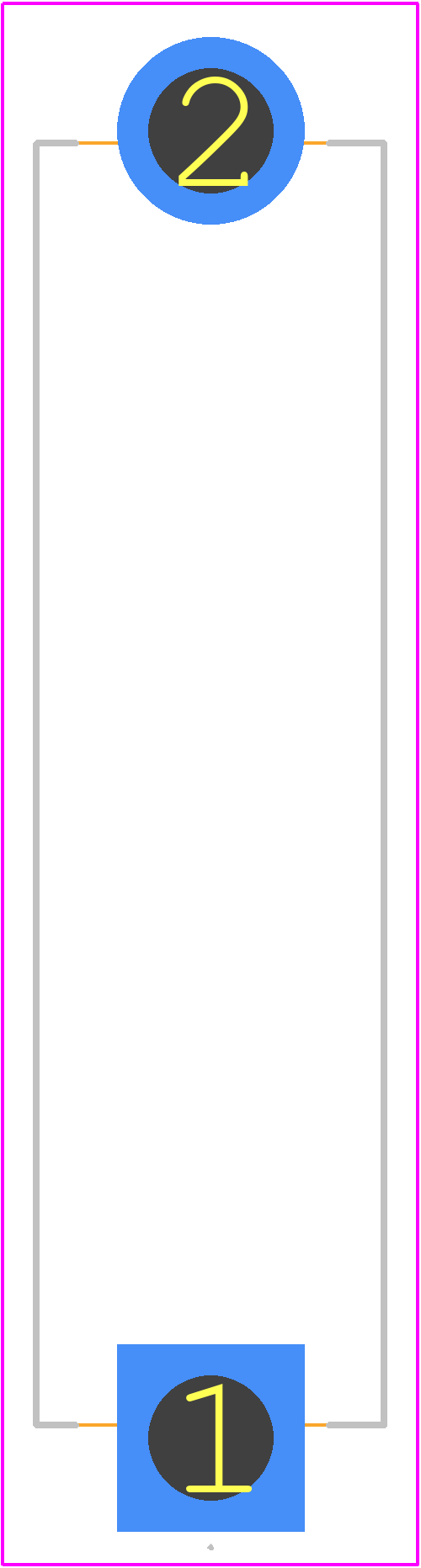

0SPF012.HXR - LITTELFUSE PCB footprint - Other - Other - 0SPF012.HXR-2
click to zoom
3D Models
0SPF012.HXR - LITTELFUSE  - 3D model - Other - 0SPF012.HXR-2
click to zoom

0SPF012.HXR Details

  • Manufacturer Part Number:

    0SPF012.HXR

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Direct Group:

    FP010030037600010000000000010000000500240019

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.10.00.40

  • Manufacturer:

    Littelfuse Inc

  • YTEOL:

    6.68

  • Blow Characteristic:

    FAST

  • Body Height:

    38.1 mm

  • Body Length or Diameter:

    10.31 mm

  • Circuit Protection Type:

    ELECTRIC FUSE

  • Fuse Size:

    10x38mm

  • Joule Integral-Nom:

    642 J

  • Mounting Feature:

    THROUGH HOLE

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BULK

  • Rated Breaking Capacity:

    20000 A

  • Rated Current:

    12 A

  • Rated Voltage(DC):

    1000 V

  • Reference Standard:

    CSA; TUV; UL

  • Surface Mount:

    NO

  • Terminal Shape:

    FLAT

  • Trip Time or Delay:

    240 s

0SPF012.HXR Frequently Asked Questions (FAQs)

  • The recommended PCB layout for the 0SPF012.HXR involves keeping the component away from high-current carrying traces, using a solid ground plane, and minimizing the distance between the fuse and the circuit it's protecting. A good layout also ensures that the fuse is easily accessible for replacement.
  • The 0SPF012.HXR is designed to operate in temperatures ranging from -40°C to 125°C. However, its performance may degrade at higher temperatures, and the fuse may trip earlier than expected. It's essential to consider the operating temperature when selecting a fuse for a specific application.
  • The 0SPF012.HXR is rated for a maximum voltage of 12V. Using it in high-voltage applications may lead to premature failure or reduced performance. It's recommended to choose a fuse with a higher voltage rating for high-voltage applications.
  • When replacing the 0SPF012.HXR, ensure the power is turned off, and the circuit is de-energized. Remove the faulty fuse, and replace it with a new one of the same rating and type. Verify the new fuse is properly seated and the circuit is functioning correctly before re-energizing the system.
  • The 0SPF012.HXR is designed to handle inrush currents, but its performance may vary depending on the specific application. It's essential to consider the inrush current requirements of the circuit and choose a fuse with an appropriate I²t rating to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

0SPF012.HXR Overview

Use the download button to access the 0SPF012.HXR schematic symbol, PCB footprint, and 3D model.
