1-101381-01 - Sensirion

Description: Sensor: temperature and humidity; 0÷100%RH; -40÷125°C; DFN8; SHT

Download 1-101381-01 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

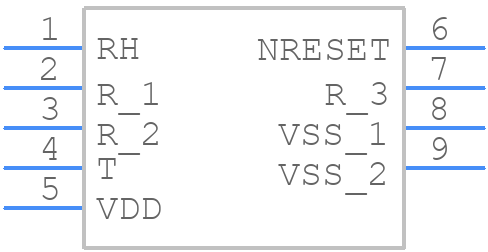

1-101381-01 - Sensirion - PCB symbol
click to zoom
PCB Footprints
1-101381-01 - Sensirion PCB footprint - Other - Other - 8-Pin DFN
click to zoom
3D Models
1-101381-01 - Sensirion - 3D model - Other - 8-Pin DFN
click to zoom

1-101381-01 Details

  • Manufacturer Part Number:

    1-101381-01

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • Manufacturer:

    Sensirion

  • Additional Feature:

    AEC-Q100

  • Body Breadth:

    2.5 mm

  • Body Height:

    0.9 mm

  • Body Length or Diameter:

    2.5 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    ANALOG

  • Output Type:

    ANALOG VOLTAGE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOLCC8,.09,20

  • Package Shape/Style:

    SQUARE

  • Screening Level:

    AEC-Q100

  • Sensors/Transducers Type:

    HUMIDITY AND TEMPERATURE SENSOR

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

1-101381-01 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the 1-101381-01 sensor is -20°C to 70°C (-4°F to 158°F).
  • The 1-101381-01 sensor is designed to operate in humid environments and can withstand condensation. However, it's essential to ensure proper sealing and protection to prevent water ingress.
  • The response time of the 1-101381-01 sensor is typically around 1-2 seconds, depending on the specific application and environmental conditions.
  • The 1-101381-01 sensor is not designed for use in explosive or hazardous environments. It's essential to ensure compliance with relevant safety standards and regulations.
  • The 1-101381-01 sensor can be affected by dust or contamination, which may impact its accuracy and reliability. Regular cleaning and maintenance are recommended to ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-101381-01 Overview

Use the download button to access the 1-101381-01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-101, or try a keyword search, such as Other Sensors/Transducers
