1-103168-2 - TE Connectivity

Description: PCB Mount Header, Vertical, Board-to-Board, 28 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Gold (Au), Through Hole - Solder, AMPMODU Headers

Download 1-103168-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-103168-2 - TE Connectivity - PCB symbol
click to zoom

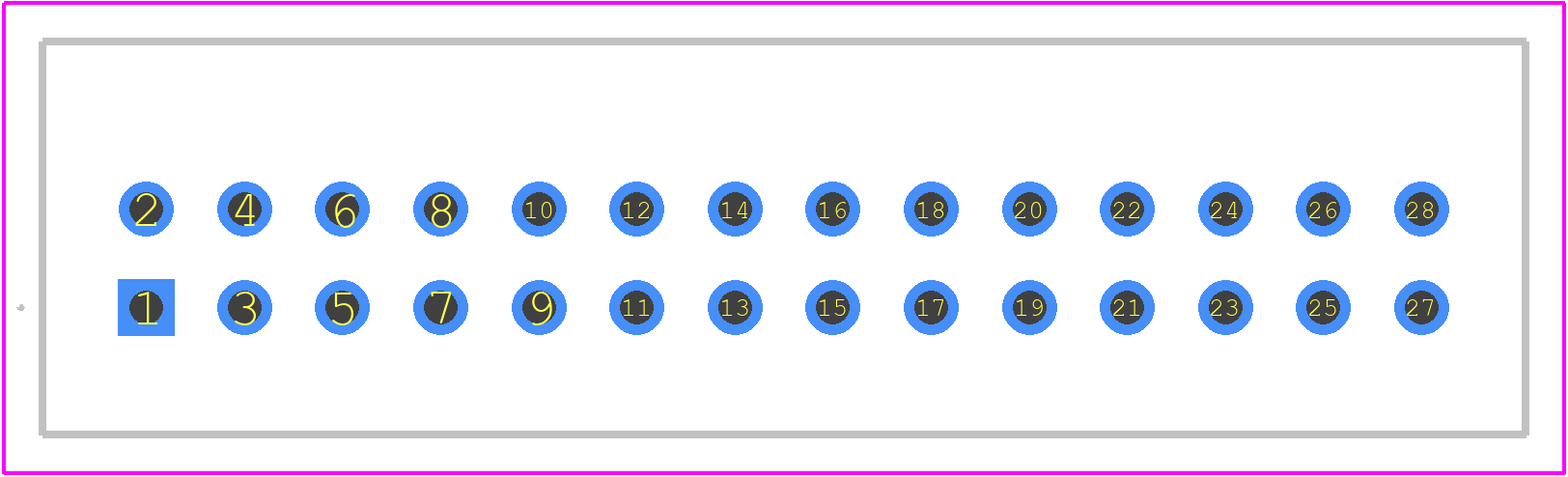

PCB Footprints
1-103168-2 - TE Connectivity PCB footprint - Other - Other - 1-103168-2-2
click to zoom
3D Models
1-103168-2 - TE Connectivity - 3D model - Other - 1-103168-2-2
click to zoom

1-103168-2 Details

  • Manufacturer Part Number:

    1-103168-2

  • Brand Name:

    AMP

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Additional Feature:

    AMPMODU

  • Body Breadth:

    0.4 inch

  • Body Depth:

    0.44 inch

  • Body Length:

    1.512 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin/Lead (Sn/Pb) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLACK

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e0

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mating Contact Pitch:

    0.1 inch

  • Mating Contact Row Spacing:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    DETENTS

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    2.54 mm

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    CSA, LR, U

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    28

  • UL Flammability Code:

    94V-0

1-103168-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this value to ensure proper connection and prevent damage to the connector.
  • Yes, the 1-103168-2 connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and secure the connector to the PCB or panel to prevent damage or disconnection.
  • The 1-103168-2 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. However, it's not suitable for direct exposure to harsh outdoor environments or immersion in water. For outdoor or harsh environmental applications, consider using connectors with higher IP ratings or additional protection measures.
  • While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes. However, you should ensure the wire size is compatible with the connector's terminal size and that the wire insulation is compatible with the connector's materials. Consult with TE Connectivity or a qualified engineer for guidance on using non-recommended wire sizes.
  • Yes, it's essential to follow proper PCB layout and design guidelines when using the 1-103168-2 connector. Ensure the PCB hole size and spacing match the connector's pin spacing, and provide adequate clearance around the connector to prevent interference with other components. Consult the TE Connectivity application notes or a qualified engineer for guidance on PCB design.
