- Part Number 1-103327-8
- Manufacturer TE Connectivity
- Pin Count 18
- Part Category Connector
- Package Category Header, Vertical

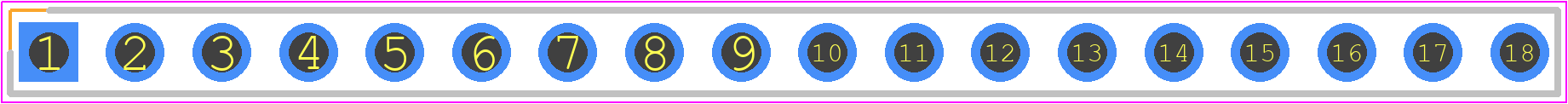

- Footprint Name Header, Vertical - 1-103327-8
- Released Date Aug 30, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-103327-8 Details
-
Manufacturer Part Number:
1-103327-8
-
Brand Name:
AMP
-
Pbfree Code:
No
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
18 Weeks
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Additional Feature:
AMPMODU
-
Body Breadth:
0.092 inch
1-103327-8 Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 1-103327-8 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 1-103327-8 connector has a IP67 rating, which means it's protected against dust and water ingress. However, it's essential to follow proper sealing and installation procedures to maintain the IP67 rating. Additionally, consider using additional protection measures, such as conformal coating or potting, for extreme environmental conditions.
-
While the datasheet recommends using AWG 20-24 wires, it's possible to use other wire sizes. However, you should ensure the wire size is compatible with the connector's terminal design and that the wire insulation is not damaged during insertion. Consult with TE Connectivity or a qualified engineer for guidance on using non-recommended wire sizes.
-
To ensure reliable connections and prevent terminal screw loosening, apply a thread-locking compound, such as Loctite, to the screw threads. Additionally, consider using a screw-locking mechanism or a connector with a built-in screw-locking feature.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-103327-8 Overview
Use the download button to access the 1-103327-8 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-103,
or try a keyword search, such as Headers and Edge Type Connectors
