1-1123723-6 - TE Connectivity

Description: Headers & Wire Housings VERTICAL HDR 6P low-profile

Download 1-1123723-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1123723-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

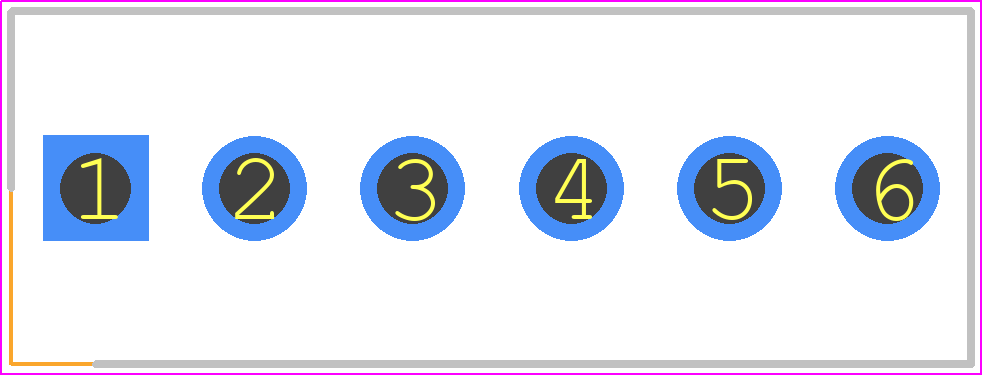

1-1123723-6 - TE Connectivity PCB footprint - Header, Shrouded - Straight PTH Box - Header, Shrouded - Straight PTH Box - 1-1123723-6
click to zoom
3D Models
1-1123723-6 - TE Connectivity - 3D model - Header, Shrouded - Straight PTH Box - 1-1123723-6
click to zoom

1-1123723-6 Details

  • Manufacturer Part Number:

    1-1123723-6

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.6

  • Additional Feature:

    LOW PROFILE

  • Body Breadth:

    0.421 inch

  • Body Depth:

    0.32 inch

  • Body Length:

    0.933 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Arrangement:

    S0P6

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    20 mΩ

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • Durability:

    50 Cycles

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulation Resistance:

    1000000000 Ω

  • Insulator Color:

    NATURAL

  • Insulator Material:

    GLASS FILLED POLYBUTYLENE TEREPHTHALATE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    39.37u inch

  • Rated Current (Signal):

    8 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.146 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

1-1123723-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1123723-6 connector is 0.5-1.5 Nm (4.4-13.4 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific torque recommendations tailored to your application.
  • While the 1-1123723-6 connector is designed to be robust, it's crucial to assess the specific vibration requirements of your application. TE Connectivity recommends consulting their vibration testing data and performing additional testing to ensure the connector meets your application's vibration requirements.
  • The 1-1123723-6 connector is designed to operate within a temperature range of -40°C to 125°C. However, for harsh environments, it's recommended to consult TE Connectivity's environmental testing data and application notes to ensure the connector meets your specific requirements.
  • The 1-1123723-6 connector is rated for a minimum of 500 mating cycles. However, this may vary depending on the application, usage, and environmental conditions. It's recommended to consult TE Connectivity's testing data and application notes for more information.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines to ensure proper connector operation and minimize signal integrity issues. Consult the TE Connectivity application notes and PCB layout recommendations for specific guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1123723-6 Overview

Use the download button to access the 1-1123723-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-112, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
