1-1318750-2 - TE Connectivity

Description: PCB Mount Header, Horizontal, Wire-to-Board, 50 Position, 2.2 mm / 4 mm [.087 in / .157 in] Centerline, Fully Shrouded, Tin, 0.64/025 Connector System

Download 1-1318750-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1318750-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

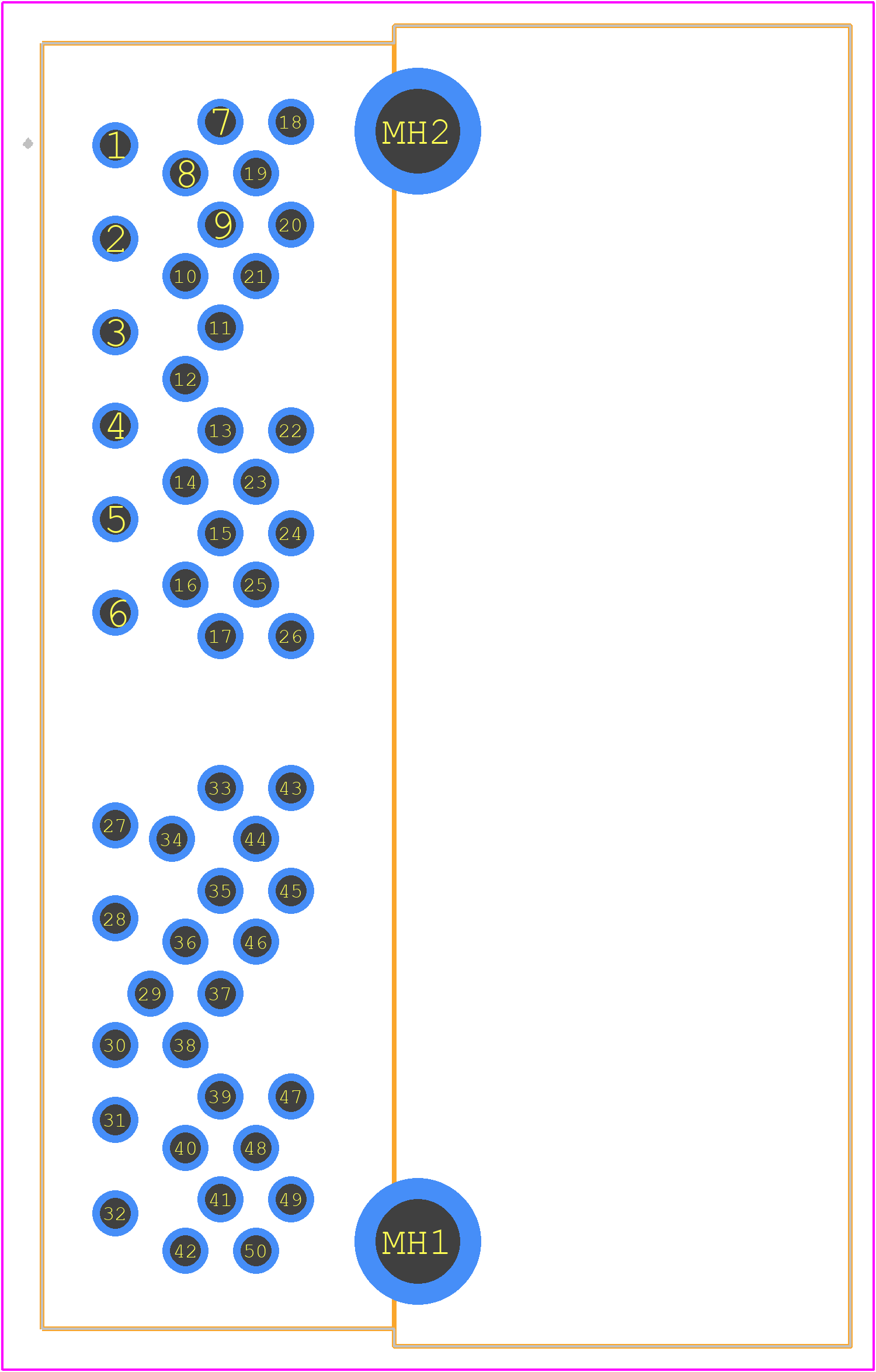

1-1318750-2 - TE Connectivity PCB footprint - Other - Other - 1-1318750-2-2
click to zoom
3D Models
1-1318750-2 - TE Connectivity - 3D model - Other - 1-1318750-2-2
click to zoom

1-1318750-2 Details

  • Manufacturer Part Number:

    1-1318750-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    2.224 inch

  • Body Depth:

    1.362 inch

  • Body Length:

    1.315 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Number of Rows Loaded:

    3

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -30 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    12 V

  • Reference Standard:

    UL

  • Shell Material:

    SYNDIOTACTIC POLYSTYRENE

  • Terminal Pitch:

    2.2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    50

  • UL Flammability Code:

    94-HB

1-1318750-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1-1318750-2 connector is designed to withstand vibrations and is suitable for use in high-vibration environments. However, it's essential to follow proper mounting and installation procedures to ensure the connector remains secure.
  • The 1-1318750-2 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's essential to provide additional protection, such as a waterproof enclosure or sealant, to ensure reliable operation.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some limitations. However, it's essential to consult with TE Connectivity or a qualified engineer to determine the suitability of the connector for your specific wire size requirements.
  • The 1-1318750-2 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure that the connector is used within this temperature range to maintain reliable operation and prevent damage.
