1-1318772-8 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

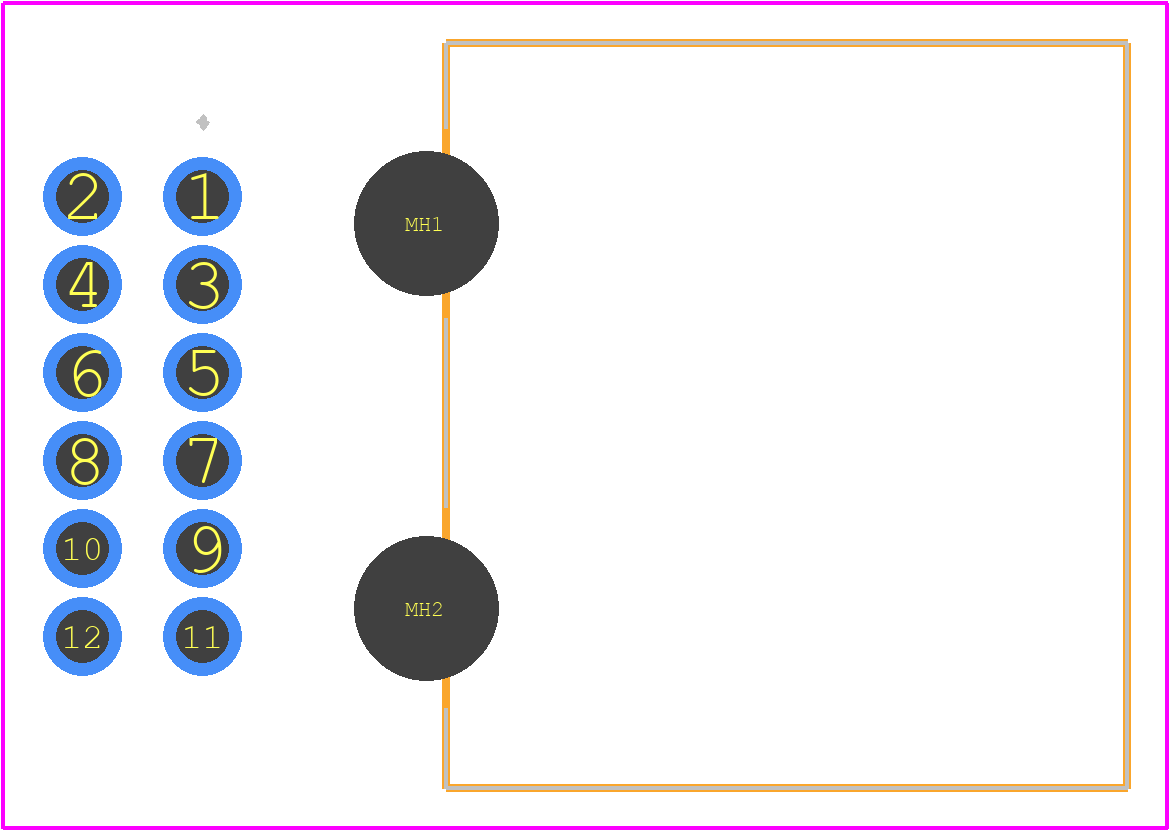

PCB Footprints

1-1318772-8 - TE Connectivity PCB footprint - Other - Other - 1-1318772-8-1

click to zoom

3D Models

1-1318772-8 - TE Connectivity - 3D model - Other - 1-1318772-8-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1318772-8
Part Number 1-1318772-8
Manufacturer TE Connectivity
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - 1-1318772-8-1
Released Date Mar 18, 2020
Last Modified Date Dec 15, 2024 9:33 PM UTC
Pinout / Pin List Click Here (Member Only)

1-1318772-8 Details

Manufacturer Part Number:
1-1318772-8
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
18 Weeks
Manufacturer:
TE Connectivity
YTEOL:
8
Body Breadth:
0.732 inch
Body Length:
0.963 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-30 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
12 V
Terminal Pitch:
2.2 mm
Termination Type:
SOLDER
Total Number of Contacts:
12

1-1318772-8 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 1-1318772-8 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
The 1-1318772-8 connector has a rating of IP20, which means it provides some protection against solid objects and fingers, but it's not fully sealed against moisture or water. For outdoor use, consider using a connector with a higher IP rating or applying additional sealing measures.
While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to ensure the wire size and insulation diameter are compatible with the connector's terminal design to prevent damage or poor connections.
The 1-1318772-8 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain its performance and reliability.

Trust Checks

Expert Contribution

System Verified

Community Approved

1-1318772-8 Overview

Use the download button to access the 1-1318772-8 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-131, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
