1-1318853-3 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

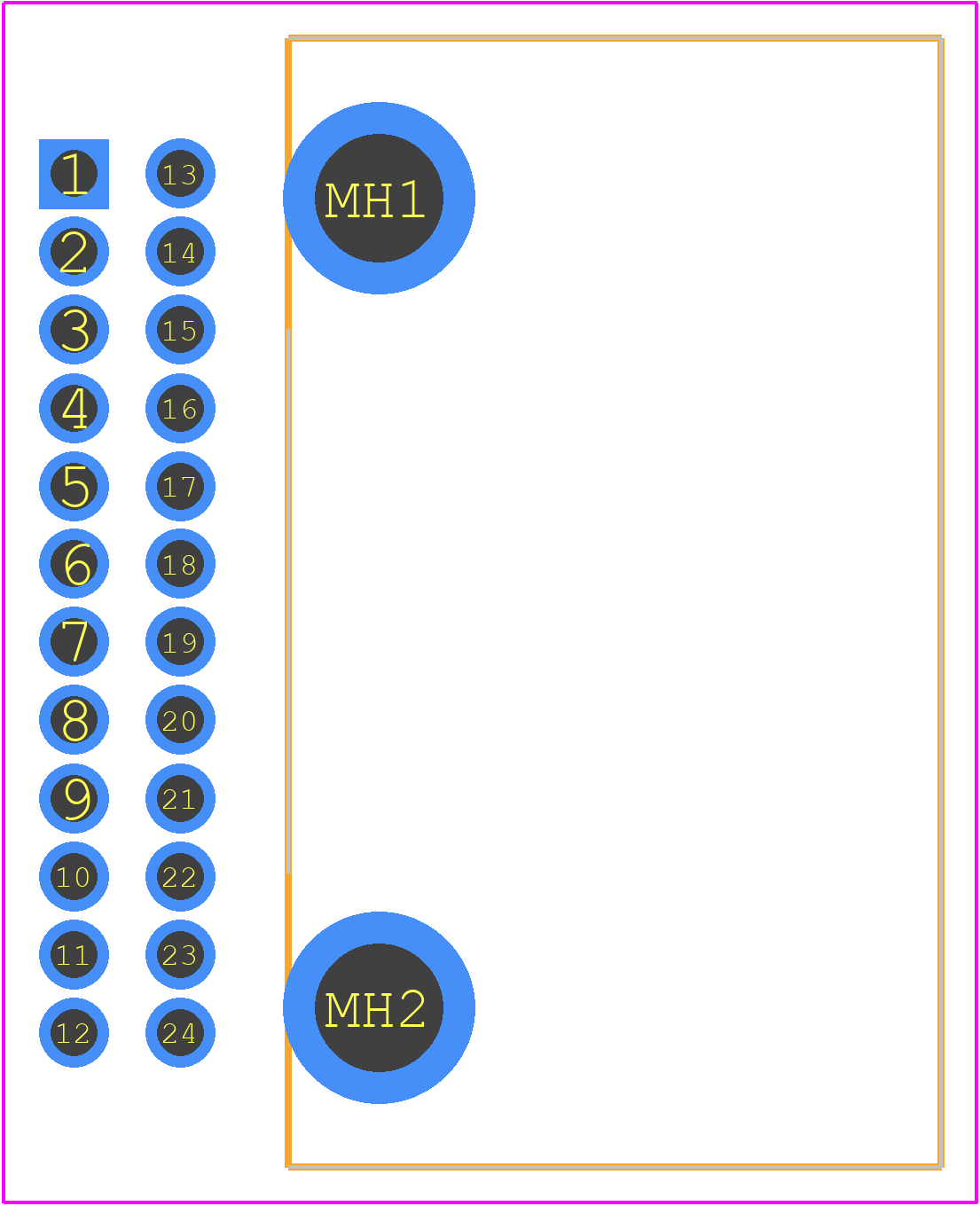

1-1318853-3 - TE Connectivity PCB footprint - Other - Other - 1-1318853-3-1

click to zoom

3D Models

1-1318853-3 - TE Connectivity - 3D model - Other - 1-1318853-3-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1318853-3
Part Number 1-1318853-3
Manufacturer TE Connectivity
Pin Count 26
Part Category Connector
Package Category Other
Footprint Name Other - 1-1318853-3-1
Released Date Sep 27, 2019
Last Modified Date Dec 15, 2024 9:33 PM UTC
Pinout / Pin List Click Here (Member Only)

1-1318853-3 Details

Manufacturer Part Number:
1-1318853-3
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Japan
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
8
Body Breadth:
0.61 inch
Body Depth:
0.963 inch
Body Length:
1.252 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
SYNDIOTACTIC POLYSTYRENE
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mating Information:
1717112-1
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-30 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
12 V
Terminal Pitch:
2.2 mm
Termination Type:
SOLDER
Total Number of Contacts:
24

1-1318853-3 Frequently Asked Questions (FAQs)

The recommended torque value for the 1-1318853-3 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque specifications.
Yes, the 1-1318853-3 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
The 1-1318853-3 connector is rated for operating temperatures ranging from -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95%. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific requirements of your application.
The 1-1318853-3 connector is designed for a minimum of 500 mating cycles. However, the actual mating cycle life may vary depending on factors such as usage, environment, and maintenance.
The 1-1318853-3 connector is designed to be compatible with other TE Connectivity products within the same series. However, compatibility with third-party connectors should be verified through testing and consultation with TE Connectivity's documentation and technical support.

Trust Checks

Expert Contribution

System Verified

Community Approved

1-1318853-3 Overview

Use the download button to access the 1-1318853-3 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-131, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
