1-1376350-4 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

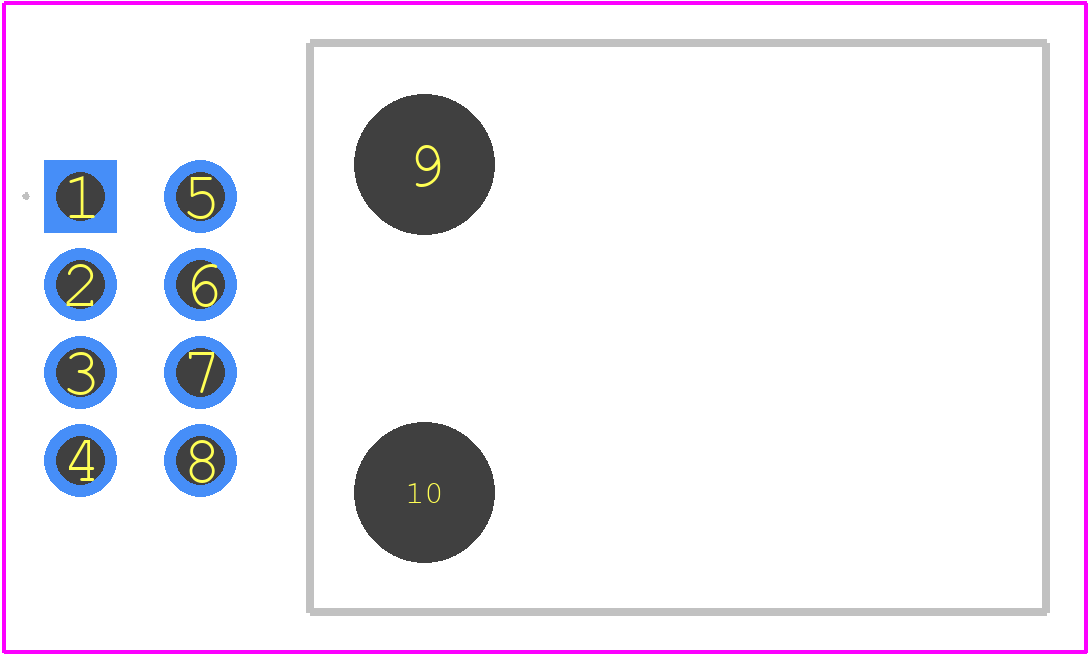

1-1376350-4 - TE Connectivity PCB footprint - Other - Other - 1-1376350-4-3

click to zoom

3D Models

1-1376350-4 - TE Connectivity - 3D model - Other - 1-1376350-4-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1376350-4
Part Number 1-1376350-4
Manufacturer TE Connectivity
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - 1-1376350-4-3
Released Date Nov 7, 2024
Last Modified Date Dec 15, 2024 9:33 PM UTC
Pinout / Pin List Click Here (Member Only)

1-1376350-4 Details

Manufacturer Part Number:
1-1376350-4
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
19 Weeks, 1 Day
Manufacturer:
TE Connectivity
Body Breadth:
0.559 inch
Body Depth:
0.963 inch
Body Length:
0.963 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
Contact Style:
SQ PIN-SKT
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL Conformance:
NO
Mains Connector Rating:
115/230VAC
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-30 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Voltage:
12 V
Reference Standard:
UL
Terminal Pitch:
2.2 mm
Termination Type:
SOLDER
Total Number of Contacts:
8
UL Flammability Code:
94-HB

1-1376350-4 Frequently Asked Questions (FAQs)

The recommended torque value for the 1-1376350-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque specifications.
Yes, the 1-1376350-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 standard for vibration resistance, making it suitable for applications with high vibration levels.
The 1-1376350-4 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and humidity levels. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific environmental requirements of your application.
The 1-1376350-4 connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
Yes, the 1-1376350-4 connector is designed to be compatible with other TE Connectivity products, including cables, backshells, and accessories. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure compatibility and proper mating.
