1-1376430-0 - TE Connectivity

Description: Connector Header Through Hole, Right Angle 135 position 0.087" (2.20mm)

Download 1-1376430-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1376430-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

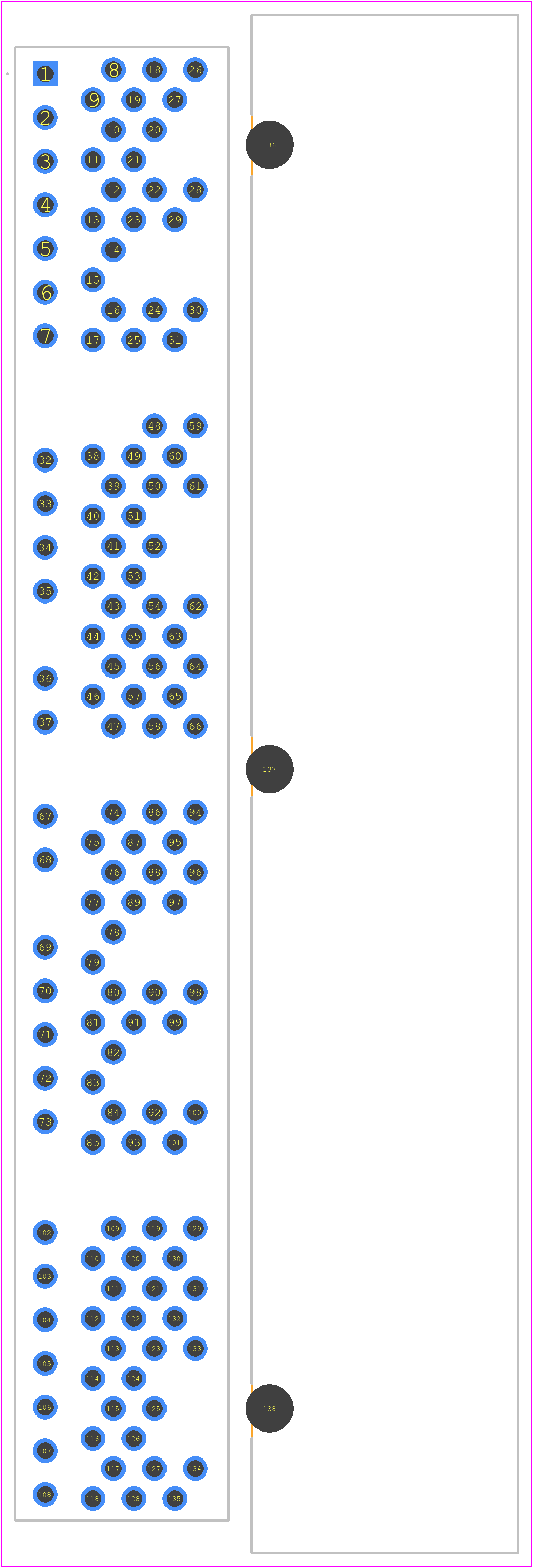

1-1376430-0 - TE Connectivity PCB footprint - Other - Other - 1-1376430-0-2
click to zoom
3D Models
1-1376430-0 - TE Connectivity - 3D model - Other - 1-1376430-0-2
click to zoom

1-1376430-0 Details

  • Manufacturer Part Number:

    1-1376430-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    3

  • Body Breadth:

    0.894 inch

  • Body Depth:

    1.648 inch

  • Body Length:

    4.437 inch

  • Connector Type:

    COMBINATION LINE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD

  • Number of Rows Loaded:

    4

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    135

1-1376430-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-1376430-0 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs) for the screw locks, and 0.2-0.5 Nm (1.8-4.4 in-lbs) for the jack screws.
  • Yes, the 1-1376430-0 connector is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • Yes, the 1-1376430-0 connector is designed to operate in harsh environments, with an operating temperature range of -40°C to 125°C (-40°F to 257°F) and meeting IP67 and IP69K ingress protection ratings.
  • The 1-1376430-0 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications where frequent mating and unmating are required.
  • Yes, the 1-1376430-0 connector is designed for automated assembly, with a pick-and-place compatible design and a tape-and-reel packaging option available.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1376430-0 Overview

Use the download button to access the 1-1376430-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-137, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
