- Part Number 1-1379602-1
- Manufacturer TE Connectivity
- Pin Count 42
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1-1379602-1-5
- Released Date Jan 13, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-1379602-1 Details
-
Manufacturer Part Number:
1-1379602-1
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Not Recommended
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
TE Connectivity
-
YTEOL:
3
-
Board Mounting Option:
BOARD LOCK
-
Body Breadth:
0.5 inch
-
Body Length:
2.362 inch
-
Connector Type:
BOARD CONNECTOR
1-1379602-1 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
-
Yes, the 1-1379602-1 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
-
The 1-1379602-1 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's essential to ensure proper sealing and protection of the connector and its connections to maintain its environmental rating.
-
While the datasheet recommends using AWG 20-24 wire sizes, it's possible to use other wire sizes with the 1-1379602-1 connector. However, it's essential to ensure that the wire size and insulation meet the connector's specifications and that the connections are secure and reliable.
-
To ensure reliable connections with the 1-1379602-1 connector, follow proper termination techniques, use the recommended wire sizes and insulation, and ensure that the connections are clean and free of oxidation. Additionally, apply the recommended torque to the screw terminals and ensure that the connector is properly secured to the PCB or mounting surface.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-1379602-1 Overview

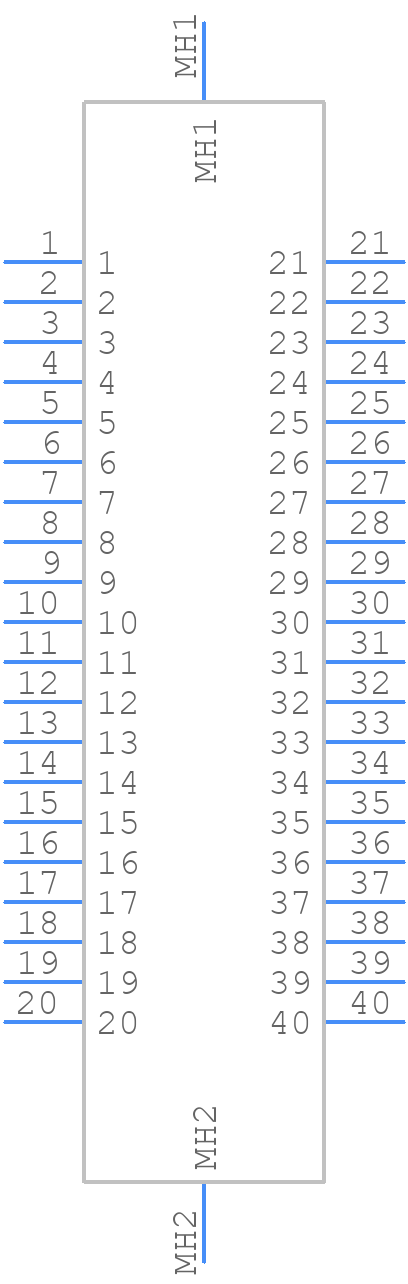

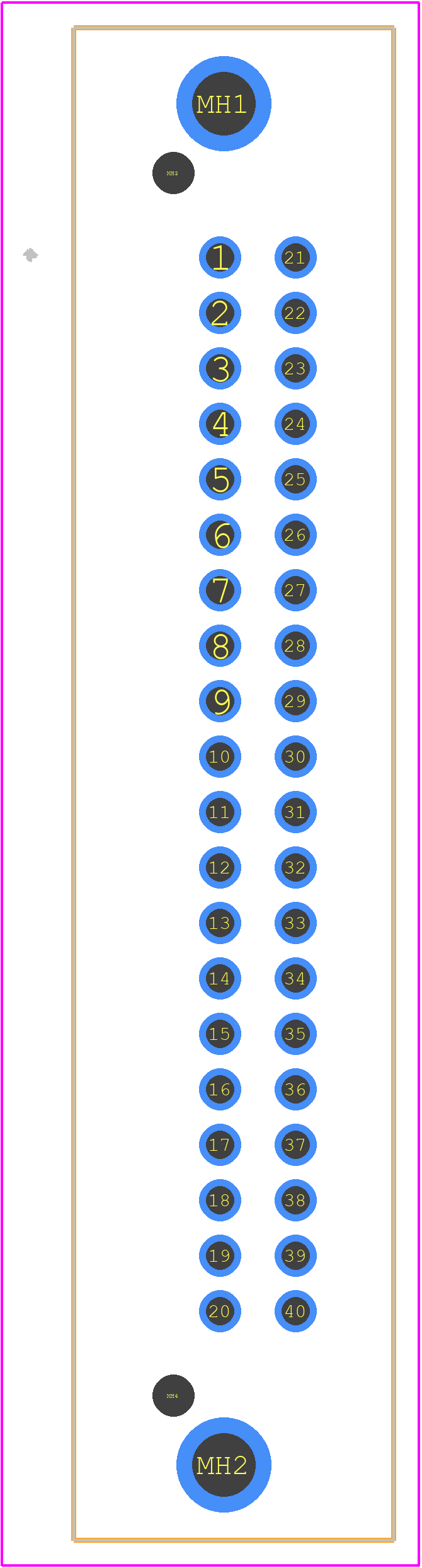

Use the download button to access the 1-1379602-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-137,
or try a keyword search, such as Headers and Edge Type Connectors
