1-1393824-0 - TE Connectivity

Description: Relay Sockets Polycarbonate PC Pin Through Hole

Download 1-1393824-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

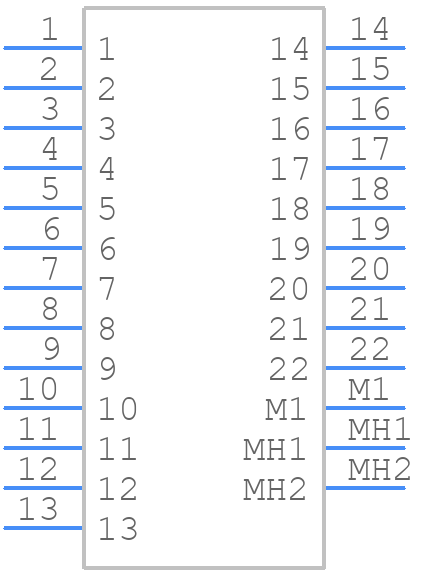

1-1393824-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

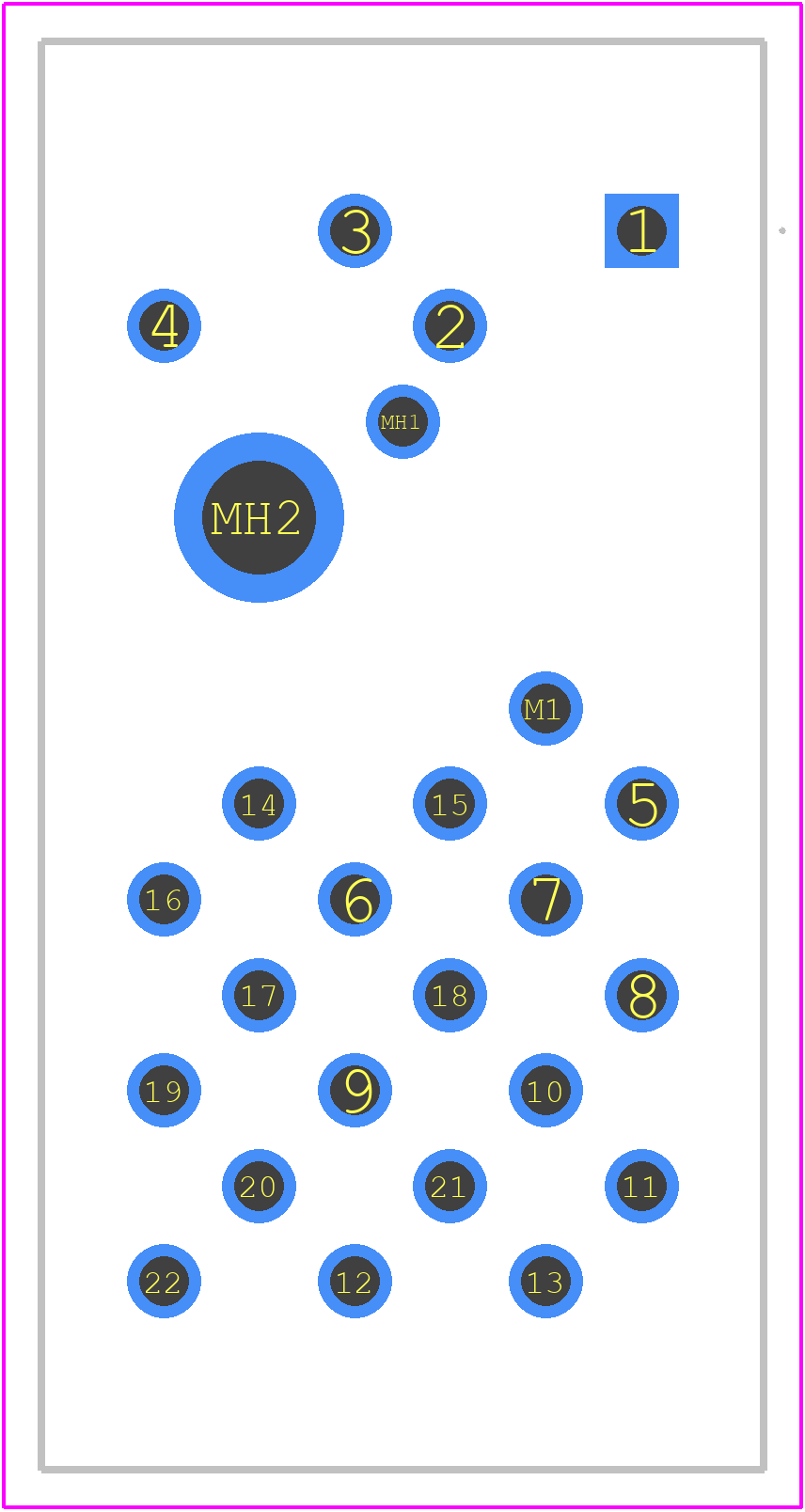

1-1393824-0 - TE Connectivity PCB footprint - Other - Other - 1-1393824-0-3
click to zoom
3D Models
1-1393824-0 - TE Connectivity - 3D model - Other - 1-1393824-0-3
click to zoom

1-1393824-0 Details

  • Manufacturer Part Number:

    1-1393824-0

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

  • Device Socket Type:

    IC SOCKET

  • Housing Material:

    POLYCARBONATE

  • Termination Type:

    SOLDER
