1-1418773-1 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 32 Position, 2.54 mm [.1 in] Centerline, Fully Shrouded, Tin, Through Hole - Solder, Signal, Blue, MQS

Download 1-1418773-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

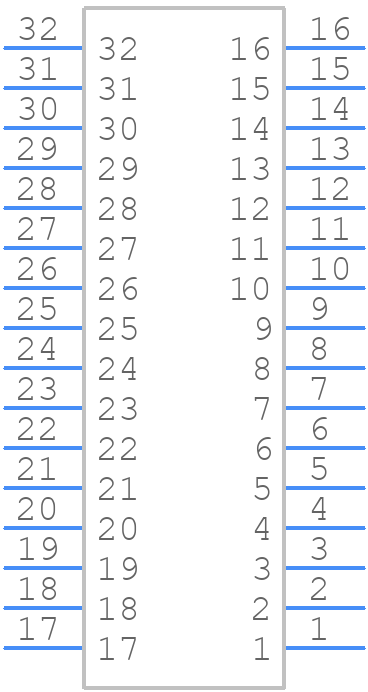

Symbol
1-1418773-1 - TE Connectivity - PCB symbol
click to zoom

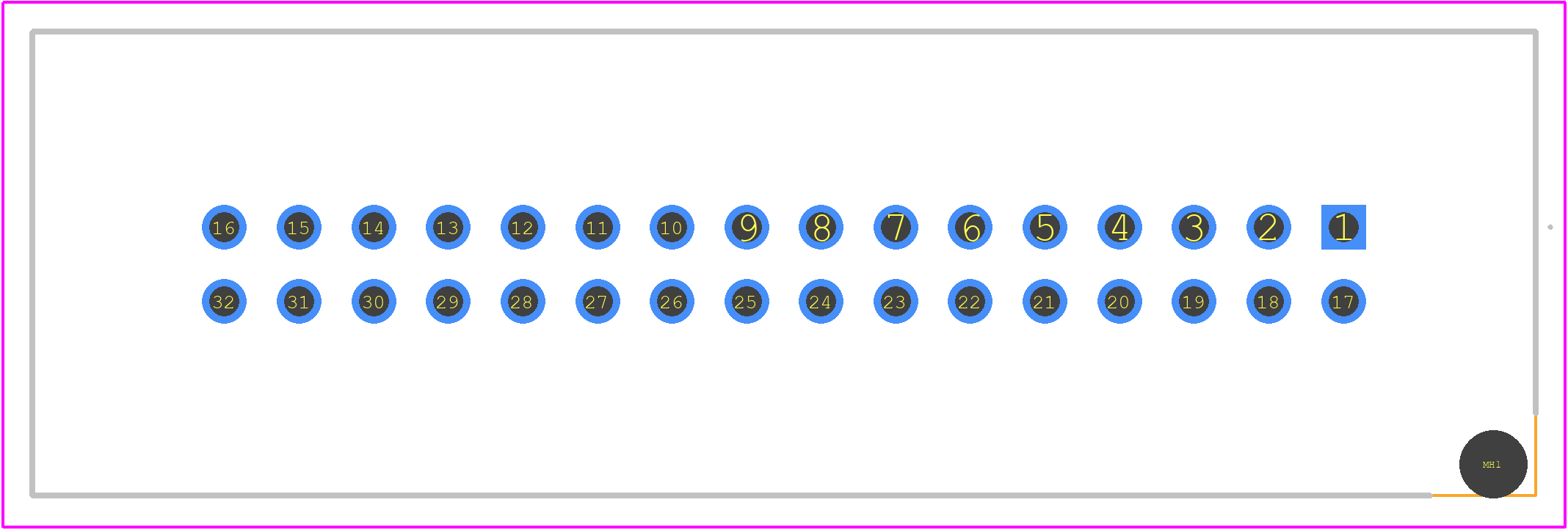

PCB Footprints
1-1418773-1 - TE Connectivity PCB footprint - Other - Other - 1-1418773-1-1
click to zoom
3D Models
1-1418773-1 - TE Connectivity - 3D model - Other - 1-1418773-1-1
click to zoom

1-1418773-1 Details

  • Manufacturer Part Number:

    1-1418773-1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    25 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    9.1

  • Board Mounting Option:

    BOARD LOCK

  • Body Breadth:

    0.622 inch

  • Body Depth:

    0.795 inch

  • Body Length:

    2.016 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Finish Termination:

    Tin (Sn)

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Style:

    SQ PIN-SKT

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLUE

  • Insulator Material:

    GLASS FILLED POLYPHTHALAMIDE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    14 V

  • Terminal Length:

    0.11 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

1-1418773-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-1418773-1 connector is typically between 0.5-1.5 Nm (5-15 in-lbs), but it's best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • The 1-1418773-1 connector is designed to meet the requirements of various industries, including automotive and industrial, which often involve high-vibration environments. However, it's essential to evaluate the specific application and consult with TE Connectivity or a qualified engineer to ensure the connector meets the necessary vibration and shock requirements.
  • The 1-1418773-1 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand some humidity. However, it's crucial to review the specific environmental requirements of your application and consult with TE Connectivity or a qualified engineer to ensure the connector meets the necessary standards and specifications.
  • The mating cycle life of the 1-1418773-1 connector is typically around 500-1000 cycles, depending on the specific application and environmental conditions. However, it's recommended to consult the TE Connectivity datasheet or application notes for more detailed information.
  • The 1-1418773-1 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult with TE Connectivity or a qualified engineer to ensure proper mating and performance.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1418773-1 Overview

Use the download button to access the 1-1418773-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-141, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
