1-1452228-9 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

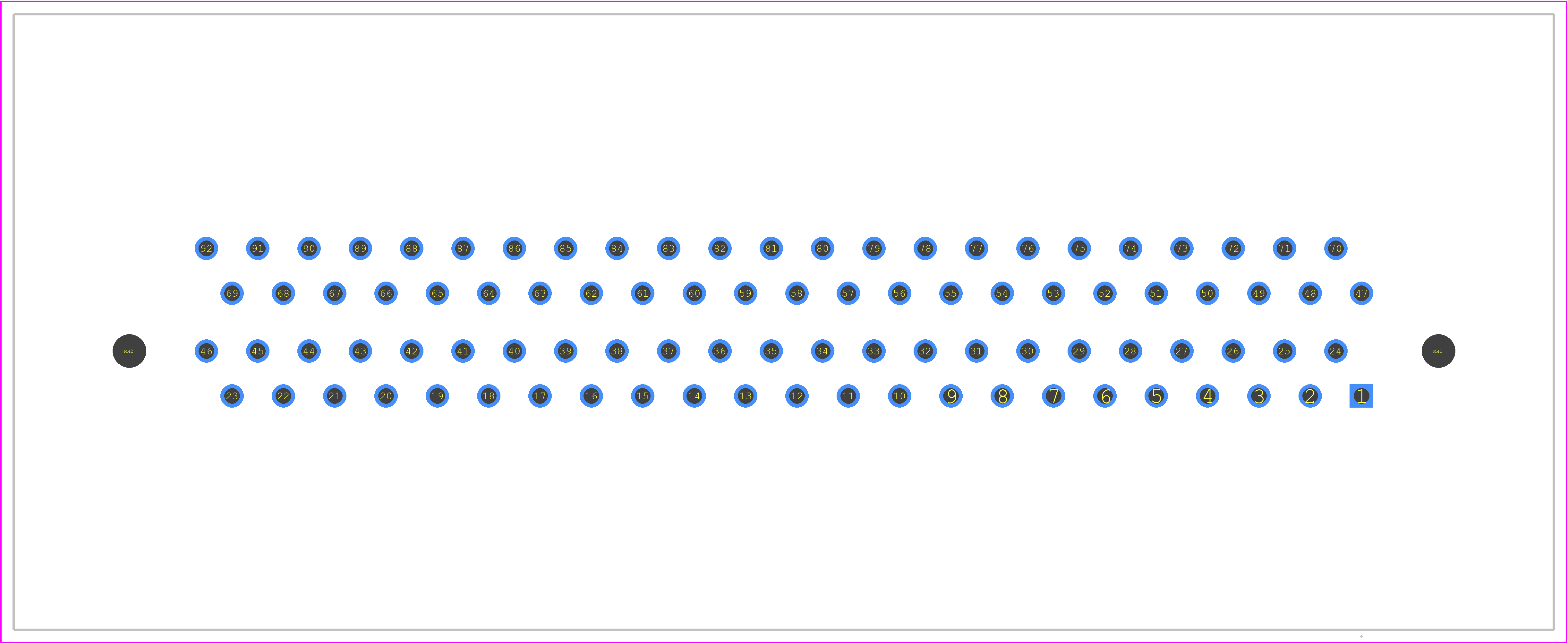

PCB Footprints

1-1452228-9 - TE Connectivity PCB footprint - Other - Other - 1-1452228-9-10

click to zoom

3D Models

1-1452228-9 - TE Connectivity - 3D model - Other - 1-1452228-9-10

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1452228-9
Part Number 1-1452228-9
Manufacturer TE Connectivity
Pin Count 92
Part Category Connector
Package Category Other
Footprint Name Other - 1-1452228-9-10
Released Date Apr 18, 2023
Last Modified Date Dec 15, 2024 9:33 PM UTC
Pinout / Pin List Click Here (Member Only)

1-1452228-9 Details

Manufacturer Part Number:
1-1452228-9
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
13 Weeks
Manufacturer:
TE Connectivity
YTEOL:
7.84
Body Breadth:
1.71 inch
Body Depth:
1.476 inch
Body Length:
4.72 inch
Connector Type:
COMBINATION LINE CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
20A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number of Ports:
1
Number of Rows Loaded:
4
Option:
GENERAL PURPOSE
Panel Mount:
NO
Polarization Key:
POLARIZED
Rated Current (Signal):
20 A
Terminal Pitch:
4 mm
Termination Type:
SOLDER
Total Number of Contacts:
92

1-1452228-9 Frequently Asked Questions (FAQs)

The recommended torque value for the 1-1452228-9 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque specifications.
Yes, the 1-1452228-9 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat. 2 standard for vibration resistance, making it suitable for applications with high vibration levels.
The 1-1452228-9 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95% RH. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific requirements of your application.
The 1-1452228-9 connector is rated for a minimum of 500 mating cycles, making it suitable for applications that require frequent connections and disconnections.
Yes, the 1-1452228-9 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors. However, it's essential to verify compatibility and consult TE Connectivity's documentation to ensure seamless integration.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1-1452228-9 Overview

Use the download button to access the 1-1452228-9 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-145, or try a keyword search, such as Combination Line Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
