Part Image

1-1462051-2 - TE Connectivity

Description: RELAY RF SPDT (1 Form C) 2A 5V Gull Wing Latching, Dual Coil

Download 1-1462051-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

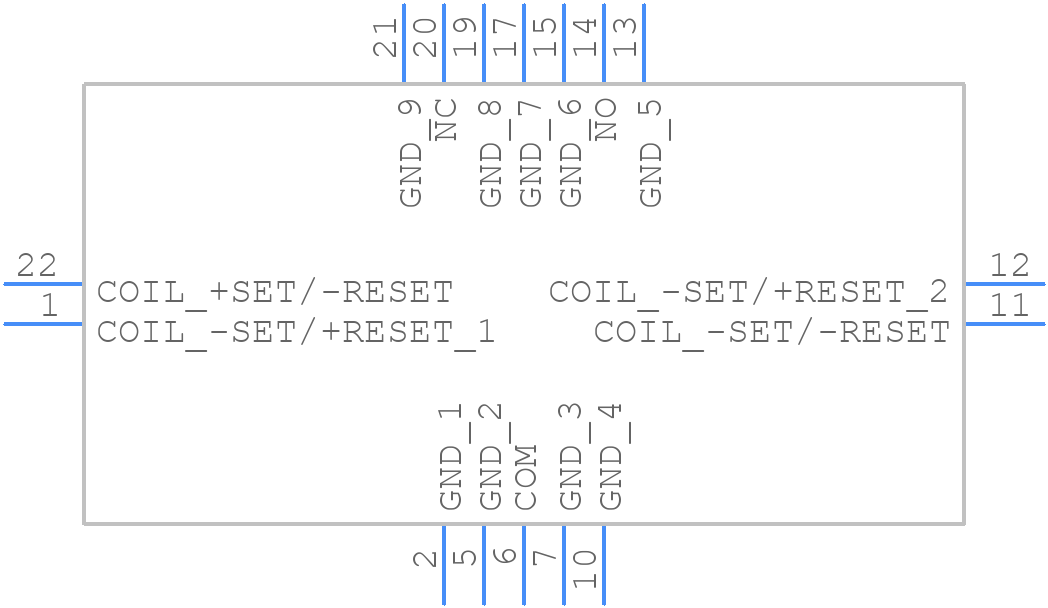

Symbol
1-1462051-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1-1462051-2 - TE Connectivity PCB footprint - Other - Other - 1-1462051-2-4
click to zoom
3D Models
1-1462051-2 - TE Connectivity - 3D model - Other - 1-1462051-2-4
click to zoom

1-1462051-2 Details

  • Manufacturer Part Number:

    1-1462051-2

  • Brand Name:

    Axicom

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    55 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.25

  • Body Breadth:

    7.2 mm

  • Body Height:

    10 mm

  • Body Length or Diameter:

    14.6 mm

  • Characteristic Impedance:

    50 Ω

  • Coil Current(DC)-Max:

    0.028 A

  • Coil Operate Voltage(DC):

    3.75 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    3.75 V

  • Coil Resistance:

    178 Ω

  • Coil Voltage(AC)-Max:

    5 V

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@250VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1000 Vrms

  • Dielectric Strength Between Open Contacts:

    600 Vrms

  • End Contact Material:

    NICKEL

  • Insertion Loss-Max:

    -0.03 dB

  • Insulation Resistance:

    1000000000000 Ω

  • Isolation-Max:

    -80 dB

  • Mounting Feature:

    PANEL MOUNT

  • Operate Time:

    8 ms

  • Operating Frequency-Max:

    3000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BOX; TR

  • Physical Dimension:

    14.6 X 7.2 X 9.1

  • Reference Standard:

    UL

  • Relay Action:

    LATCHED

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    8 ms

  • Sealing:

    IP67; RT3

  • Surface Mount:

    NO

  • Switching Time:

    16 ms

  • Termination Type:

    SOLDER/QUICK CONNECT

  • VSWR:

    1.05

1-1462051-2 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1462051-2 connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance on torque values for your specific application.
  • While the 1-1462051-2 connector is designed to be robust, it's essential to evaluate its performance in high-vibration environments. TE Connectivity recommends consulting their application notes and performing thorough testing to ensure the connector meets the specific requirements of your application.
  • The 1-1462051-2 connector is designed to operate within a specific temperature range (-40°C to 125°C). For harsh environments, it's crucial to consult TE Connectivity's environmental testing data and application notes to ensure the connector meets the specific requirements of your application.
  • The mating cycle life of the 1-1462051-2 connector is typically 500-1000 cycles, depending on the specific application and environmental conditions. However, it's recommended to consult TE Connectivity's product documentation and application notes for more detailed information.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines for the 1-1462051-2 connector to ensure proper mating and to prevent damage to the connector or PCB. Consult TE Connectivity's application notes and PCB layout recommendations for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1462051-2 Overview

Use the download button to access the 1-1462051-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-146, or try a keyword search, such as RF Relays

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
