1-1462052-7 - TE Connectivity

Description: Signal Relays, 220 VDC Contact Voltage, 250 VAC Contact Voltage, 140 mW Coil Power (DC), Printed Circuit Board, PCB-SMT, Axicom HF6

Download 1-1462052-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

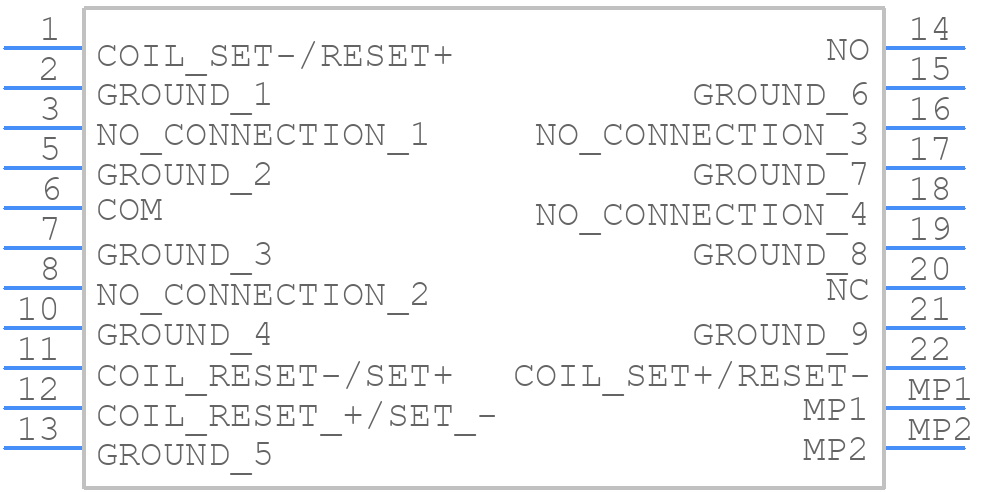

1-1462052-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints
1-1462052-7 - TE Connectivity PCB footprint - Other - Other - 1-1462052-7-5
click to zoom
3D Models
1-1462052-7 - TE Connectivity - 3D model - Other - 1-1462052-7-5
click to zoom

1-1462052-7 Details

  • Manufacturer Part Number:

    1-1462052-7

  • Brand Name:

    Axicom

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.49.00.50

  • Factory Lead Time:

    55 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.25

  • Body Breadth:

    7.5 mm

  • Body Height:

    10.5 mm

  • Body Length or Diameter:

    15 mm

  • Characteristic Impedance:

    50 Ω

  • Coil Current(DC)-Max:

    0.028 A

  • Coil Operate Voltage(DC):

    3.75 V

  • Coil Power:

    140 mW

  • Coil Release Voltage(DC):

    3.75 V

  • Coil Resistance:

    178 Ω

  • Coil Voltage(AC)-Max:

    5 V

  • Coil Voltage(DC)-Max:

    5 V

  • Coil/Input Supply Type:

    DC

  • Contact (AC) Max Rating R Load:

    2A@250VAC

  • Contact Current(AC)-Max:

    2 A

  • Contact Current(DC)-Max:

    2 A

  • Contact (DC) Max Rating R Load:

    2A@220VDC

  • Contact Voltage(AC)-Max:

    250 V

  • Contact Voltage(DC)-Max:

    220 V

  • Contact/Output Supply Type:

    AC/DC

  • Dielectric Strength Between Coil and Contacts:

    1000 Vrms

  • Dielectric Strength Between Open Contacts:

    600 Vrms

  • End Contact Material:

    NICKEL

  • Input Power-Max:

    50 W

  • Insertion Loss-Max:

    -0.8 dB

  • Insulation Resistance:

    1000000000000 Ω

  • Isolation-Max:

    -30 dB

  • Mounting Feature:

    PANEL MOUNT

  • Operate Time:

    8 ms

  • Operating Frequency-Max:

    6000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -55 °C

  • Packing Method:

    BOX; TR

  • Physical Dimension:

    14.9 X 7.5 X 10.5

  • Reference Standard:

    UL

  • Relay Action:

    LATCHED

  • Relay Form:

    1 FORM C

  • Relay Function:

    SPDT

  • Relay Type:

    RF RELAY

  • Release Time:

    8 ms

  • Sealing:

    IP67; RT3

  • Surface Mount:

    NO

  • Switching Time:

    16 ms

  • Termination Type:

    SOLDER/QUICK CONNECT

  • VSWR:

    1.4
