1-1473776-7 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

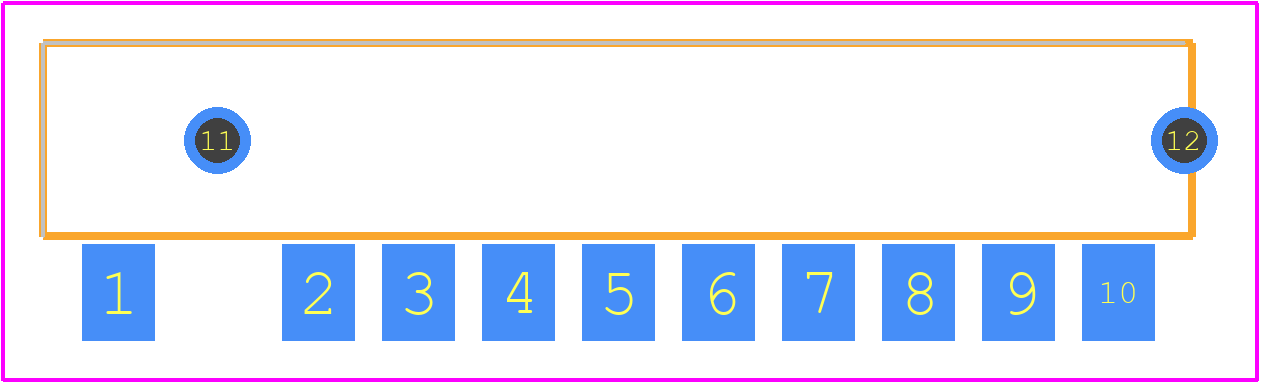

PCB Footprints

1-1473776-7 - TE Connectivity PCB footprint - Other - Other - 1-1473776-7-2

click to zoom

3D Models

1-1473776-7 - TE Connectivity - 3D model - Other - 1-1473776-7-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1473776-7
Part Number 1-1473776-7
Manufacturer TE Connectivity
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - 1-1473776-7-2
Released Date Jan 31, 2019
Pinout / Pin List Click Here (Member Only)

1-1473776-7 Details

Manufacturer Part Number:
1-1473776-7
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
Board Mounting Option:
LOCATING POST
Body/Shell Style:
RECEPTACLE
Connector Type:
PCB CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mains Connector Rating:
6A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Operating Temperature-Max:
80 °C
Operating Temperature-Min:
-20 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Rated Current (Signal):
6 A
Rated Voltage:
30 V
Terminal Pitch:
2.5 mm
Termination Type:
SOLDER
Total Number of Contacts:
10

1-1473776-7 Frequently Asked Questions (FAQs)

The recommended torque value for the 1-1473776-7 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes and torque guidelines for specific instructions.
Yes, the 1-1473776-7 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 1 Class B vibration standard, making it suitable for applications with high vibration levels.
The 1-1473776-7 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity levels up to 95% RH. However, it's crucial to consult the datasheet and application notes for specific environmental requirements.
The 1-1473776-7 connector is rated for a minimum of 500 mating cycles, ensuring reliable connections and minimizing the risk of wear and tear.
Yes, the 1-1473776-7 connector is designed to be compatible with other TE Connectivity products, including cable assemblies and PCB connectors. Consult the TE Connectivity website or contact their technical support for specific compatibility information.
