1-1586037-6 - TE Connectivity

Description: Rectangular Power Connectors, Header, Plug, Wire-to-Board, 16 Position, 4.2 mm [.165 in] Centerline, Printed Circuit Board, UL 94V-2

Download 1-1586037-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1586037-6 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

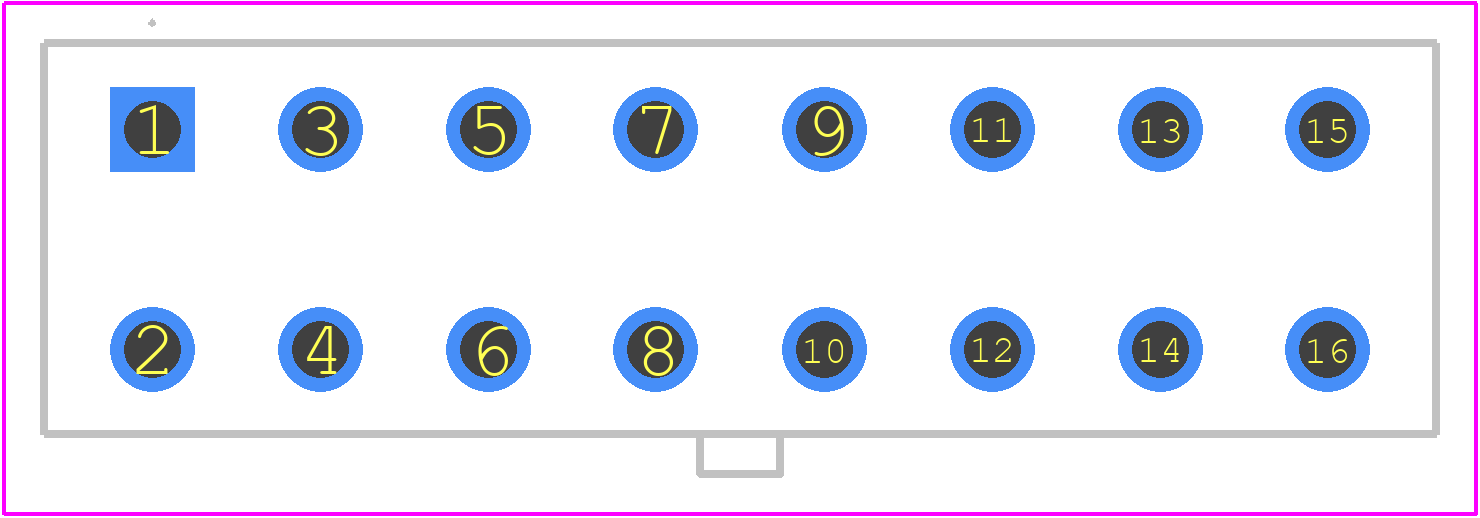

1-1586037-6 - TE Connectivity PCB footprint - Other - Other - 1-1586037-6-2
click to zoom
3D Models
1-1586037-6 - TE Connectivity - 3D model - Other - 1-1586037-6-2
click to zoom

1-1586037-6 Details

  • Manufacturer Part Number:

    1-1586037-6

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Connector Type:

    BOARD CONNECTOR

1-1586037-6 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1586037-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific torque recommendations tailored to your application.
  • While the 1-1586037-6 connector is designed to be robust, its suitability for high-vibration environments depends on the specific application and vibration levels. TE Connectivity recommends consulting their technical support or application notes for guidance on using this connector in high-vibration environments.
  • The 1-1586037-6 connector is designed to operate within a specific temperature range (-40°C to 125°C) and may not be suitable for extreme environments. Consult TE Connectivity's technical support or application notes for guidance on using this connector in harsh environments.
  • The mating cycle life of the 1-1586037-6 connector is typically around 500-1000 cycles, depending on the application and usage. However, this value may vary depending on factors like connector quality, mating forces, and environmental conditions. Consult TE Connectivity's technical support for more information.
  • Yes, proper PCB layout is crucial for reliable connector performance. TE Connectivity recommends following their application notes and PCB layout guidelines to ensure optimal performance and minimize signal integrity issues.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1586037-6 Overview

Use the download button to access the 1-1586037-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-158, or try a keyword search, such as Headers and Edge Type Connectors
