1-1734309-7 - TE Connectivity

Description: USB Connectors TRIPLE STACK USB A 15GOLD

Download 1-1734309-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

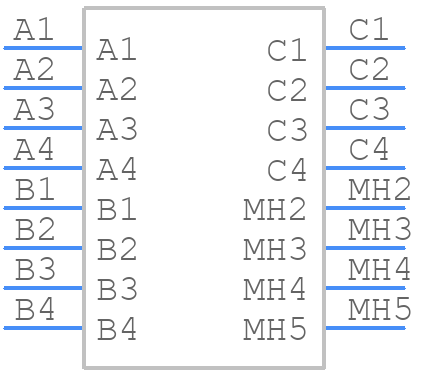

1-1734309-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

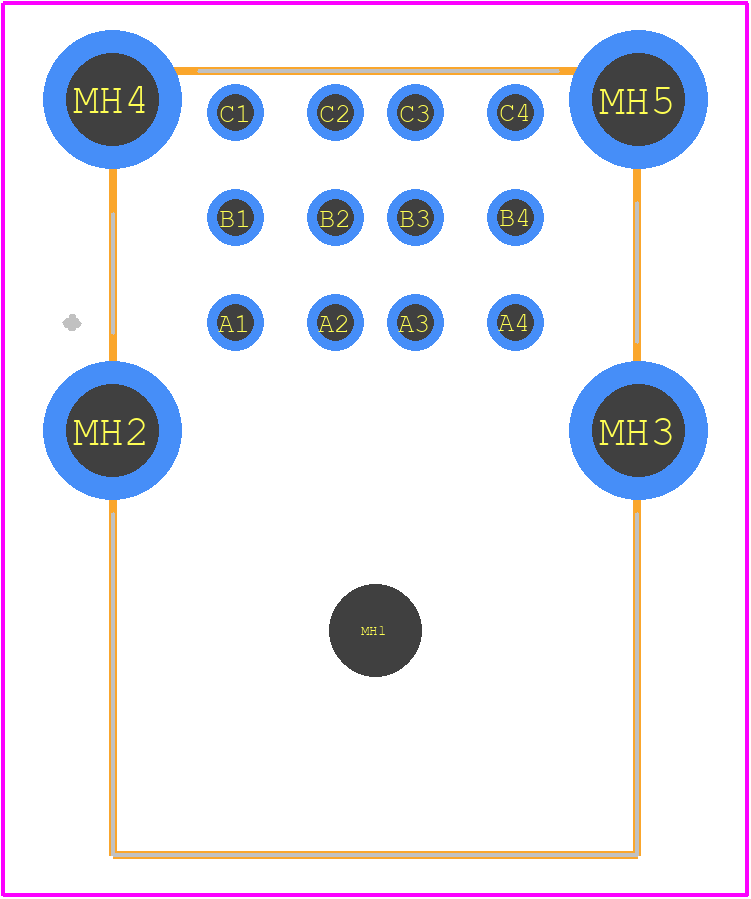

1-1734309-7 - TE Connectivity PCB footprint - Other - Other - 1-1734309-7-1
click to zoom
3D Models
1-1734309-7 - TE Connectivity - 3D model - Other - 1-1734309-7-1
click to zoom

1-1734309-7 Details

  • Manufacturer Part Number:

    1-1734309-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    9 Weeks

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    0

  • Additional Feature:

    OTHER STATCK CONNECTOR CONTACTS: 8

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    USB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    GLASS FILLED POLYAMIDE6T

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Shell Finish:

    TIN

  • Shell Material:

    PHOSPHOR BRONZE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

  • UL Flammability Code:

    94V-0

1-1734309-7 Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
  • Yes, the connector is suitable for outdoor use, but it's recommended to use a sealant or conformal coating to protect it from moisture and environmental factors.
  • Yes, the 1-1734309-7 connector is designed to withstand vibrations and can be used in high-vibration applications, but it's recommended to follow proper mounting and securing procedures.
  • The maximum operating temperature for the 1-1734309-7 connector is 125°C (257°F), but it's recommended to derate the current carrying capacity at higher temperatures.
  • Yes, the 1-1734309-7 connector is designed for automated assembly processes and can be used with pick-and-place machines and other automation equipment.
