- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1-1734839-3
- Part Number 1-1734839-3
- Manufacturer TE Connectivity
- Pin Count 15
- Part Category Connector
- Package Category Other
- Footprint Name Other - 1-1734839-3-1
- Released Date Sep 7, 2022
- Pinout / Pin List Click Here (Member Only)
1-1734839-3 Details
-
Manufacturer Part Number:
1-1734839-3
-
Brand Name:
AMP
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Reach Compliance Code:
Compliant
-
ECCN Code:
EAR99
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Body Breadth:
0.2 inch
-
Body Depth:
0.08 inch
-
Body Length:
0.47 inch
1-1734839-3 Frequently Asked Questions (FAQs)
-
The recommended torque value for the 1-1734839-3 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for the most accurate information.
-
The 1-1734839-3 connector is designed to withstand moderate vibration levels. However, for high-vibration applications, it's recommended to consult TE Connectivity's vibration testing data and consider additional securing methods, such as cable ties or potting, to ensure reliable connections.
-
The 1-1734839-3 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F). While it can withstand some humidity, it's essential to consult TE Connectivity's environmental testing data and consider additional protection methods, such as conformal coating or sealing, for extreme environmental conditions.
-
The 1-1734839-3 connector is rated for a minimum of 500 mating cycles. However, this can vary depending on the application, usage, and environmental conditions. It's recommended to consult TE Connectivity's testing data and consider the specific requirements of your application.
-
Yes, it's essential to follow TE Connectivity's recommended PCB layout guidelines for the 1-1734839-3 connector to ensure proper mating and to prevent damage to the connector or PCB. Consult the datasheet and application notes for specific layout recommendations.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-1734839-3 Overview

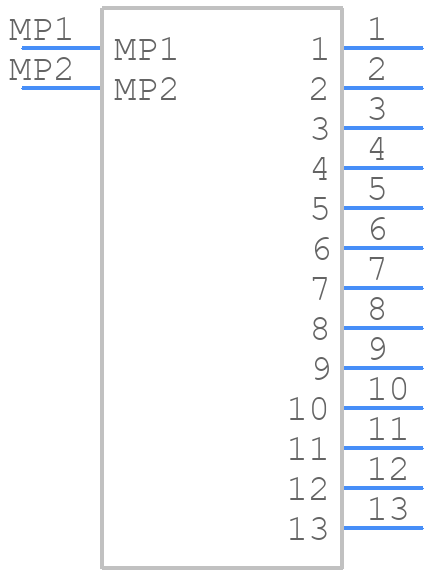

Use the download button to access the 1-1734839-3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-173,
or try a keyword search, such as Headers and Edge Type Connectors
