1-1735583-1 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

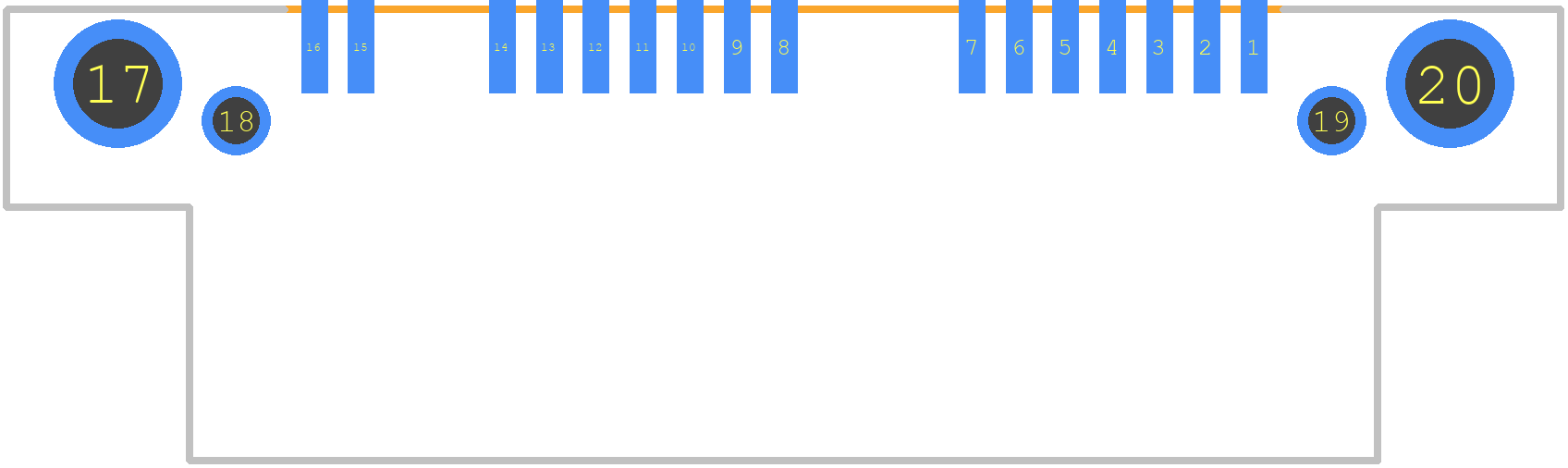

PCB Footprints

1-1735583-1 - TE Connectivity PCB footprint - Other - Other - 1-1735583-1

click to zoom

3D Models

1-1735583-1 - TE Connectivity - 3D model - Other - 1-1735583-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1735583-1
Part Number 1-1735583-1
Manufacturer TE Connectivity
Pin Count 16
Part Category Connector
Package Category Other
Footprint Name Other - 1-1735583-1
Released Date Nov 9, 2017
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

1-1735583-1 Details

Manufacturer Part Number:
1-1735583-1
Brand Name:
TE Connectivity
Rohs Code:
Yes
Part Life Cycle Code:
Not Recommended
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
9 Weeks, 5 Days
Manufacturer:
TE Connectivity
YTEOL:
3
Board Mounting Option:
BOARD LOCK
Body Depth:
0.023 inch
Connector Type:
SCSI CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
POLYETHYLENE
MIL Conformance:
NO
Mains Connector Rating:
1.5A
Mating Contact Row Spacing:
0.5 inch
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
30u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
1.5 A
Reference Standard:
UL
Terminal Pitch:
1.27 mm
Termination Type:
SURFACE MOUNT
Total Number of Contacts:
16
UL Flammability Code:
94V-0

1-1735583-1 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
Yes, the 1-1735583-1 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
The operating temperature range for the 1-1735583-1 connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
The 1-1735583-1 connector has a sealed design, making it suitable for outdoor or harsh environments. However, it's crucial to ensure proper sealing and protection from moisture, dust, and other environmental factors.
The 1-1735583-1 connector is designed for specific wire gauges and types. Consult TE Connectivity's documentation or contact their technical support to determine the compatibility of the connector with your specific wire requirements.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

1-1735583-1 Overview

Use the download button to access the 1-1735583-1 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-173, or try a keyword search, such as Telecom and Datacom Connectors
