1-1744037-0 - TE Connectivity

Description: Configuration Features: Number of Positions 10 | Number of Rows 1 | Number of Power Positions 10 | PCB Mount Orientation Vertical | Contact Features: PCB Contact Termination Area Plating Material Thickness 1 MICM | Contact Mating Area Plating Material Thickness 80 MICIN | Contact Base Material Copper Alloy | PCB Contact Termination Area Plating Material Thickness .8 MICM | PCB Contact Termination Area Plating Material Thickness 39.37 MICIN | PCB Contact Termination Area Plating Material Tin | Contact Mating

Download 1-1744037-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1744037-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

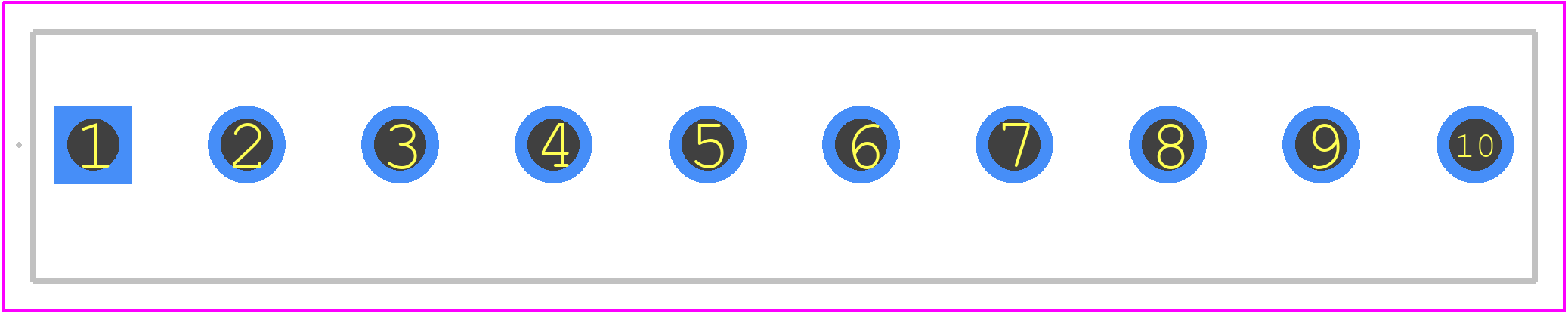

1-1744037-0 - TE Connectivity PCB footprint - Other - Other - 1-1744037-0-2
click to zoom
3D Models
1-1744037-0 - TE Connectivity - 3D model - Other - 1-1744037-0-2
click to zoom

1-1744037-0 Details

  • Manufacturer Part Number:

    1-1744037-0

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Body Breadth:

    0.323 inch

  • Body Depth:

    0.429 inch

  • Body Length:

    1.902 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE66

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Option 2:

    LATCHING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    80u inch

  • Rated Current (Signal):

    8 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.146 inch

  • Terminal Pitch:

    5.08 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

1-1744037-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-1744037-0 connector is typically between 0.5 to 1.5 Nm (4.4 to 13.3 in-lbs), but it's best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • The 1-1744037-0 connector is designed to meet the requirements of IEC 61373 Cat 2, which includes vibration testing. However, it's essential to evaluate the specific vibration requirements of your application and consult with TE Connectivity's technical support to ensure the connector meets your needs.
  • The 1-1744037-0 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F). While it's designed to be robust, it's crucial to evaluate the specific environmental requirements of your application and consult TE Connectivity's technical support to ensure the connector meets your needs. Additionally, you may need to consider additional protection or coatings for extreme environments.
  • The 1-1744037-0 connector is designed for a minimum of 500 mating cycles, but this can vary depending on the application, usage, and environmental conditions. It's recommended to consult TE Connectivity's technical support for more information on the connector's mating cycle life and how it applies to your specific use case.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout and design guidelines to ensure proper connector performance and reliability. This includes considerations for PCB material, hole size, and spacing, as well as avoiding sharp corners and edges near the connector. Consult the TE Connectivity application notes or technical support for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1744037-0 Overview

Use the download button to access the 1-1744037-0 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-174, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
