- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for 1-1744418-2
- Part Number 1-1744418-2
- Manufacturer TE Connectivity
- Pin Count 12
- Part Category Connector
- Package Category Other

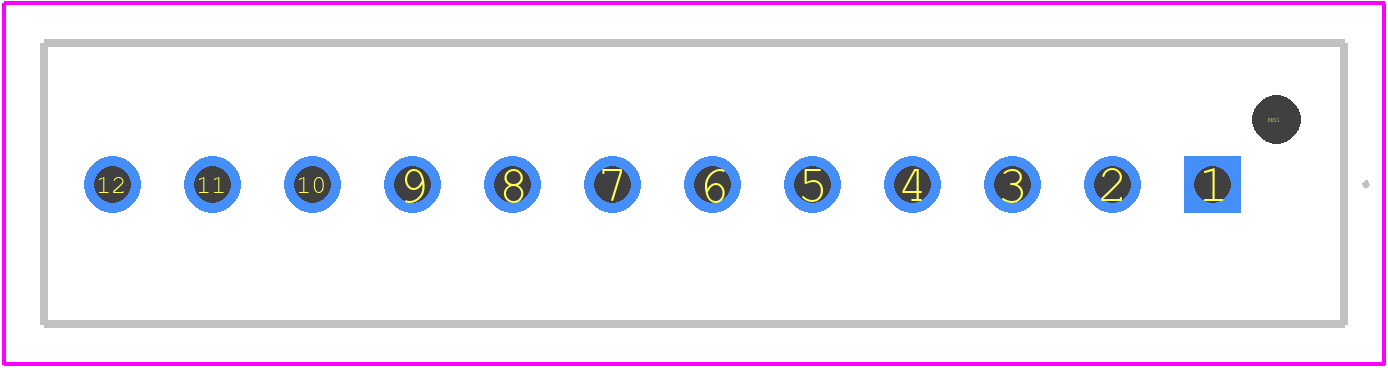

- Footprint Name Other - 1-1744418-2-2
- Released Date Oct 24, 2021
- Last Modified Date Dec 15, 2024 9:33 PM UTC
- Pinout / Pin List Click Here (Member Only)
1-1744418-2 Details
-
Manufacturer Part Number:
1-1744418-2
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Factory Lead Time:
15 Weeks, 5 Days
-
Manufacturer:
TE Connectivity
-
YTEOL:
8
-
Board Mounting Option:
SOLDERABLE RETENTION CLIPS
-
Body Depth:
0.346 inch
-
Body Length:
1.28 inch
1-1744418-2 Frequently Asked Questions (FAQs)
-
The recommended torque value for the 1-1744418-2 connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for proper torque specification.
-
Yes, the 1-1744418-2 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
-
The 1-1744418-2 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's crucial to consult the datasheet and TE Connectivity's guidelines for specific environmental requirements and any necessary derating.
-
The 1-1744418-2 connector is rated for a minimum of 500 mating cycles, ensuring reliable connections and minimizing the risk of wear and tear.
-
The 1-1744418-2 connector is designed to be compatible with other TE Connectivity products and some third-party connectors. However, it's essential to verify compatibility and consult TE Connectivity's guidelines before using the connector with other products.
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
1-1744418-2 Overview
Use the download button to access the 1-1744418-2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-174,
or try a keyword search, such as Headers and Edge Type Connectors
