Part Image

1-1744418-7 - TE Connectivity

Description: Configuration Features: Number of Positions 17 | Number of Loaded Positions 17 | Number of Rows 1 | PCB Mount Orientation Vertical | Number of Columns 17 | Number of Power Positions 17 | Contact Features: Contact Underplating Material Nickel | Contact Mating Area Plating Material Thickness 2.032 MICM | Contact Retention Within Housing Without | Contact Base Material Brass | Contact Underplating Material Thickness 50 MICIN | Contact Mating Area Plating Material Thickness 80 MICIN | Contact Type Pin | Contact

Download 1-1744418-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

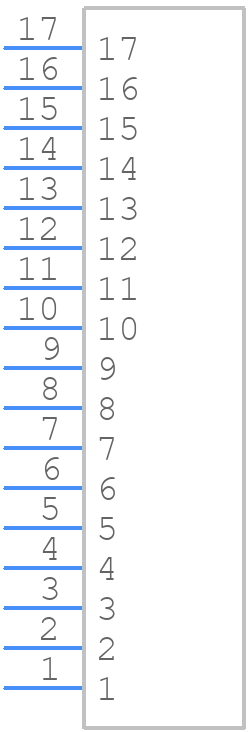

Symbol
1-1744418-7 - TE Connectivity - PCB symbol
click to zoom

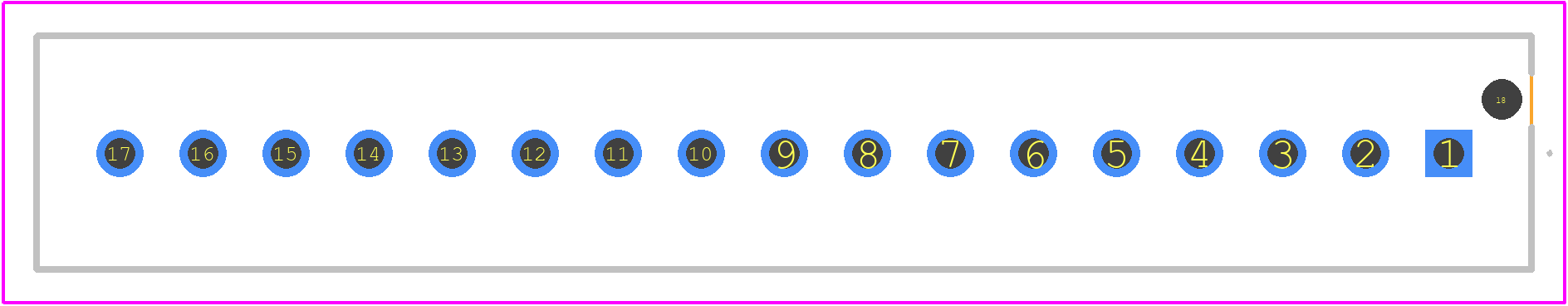

PCB Footprints
1-1744418-7 - TE Connectivity PCB footprint - Other - Other - 1-1744418-7-1
click to zoom
3D Models
1-1744418-7 - TE Connectivity - 3D model - Other - 1-1744418-7-1
click to zoom

1-1744418-7 Details

  • Manufacturer Part Number:

    1-1744418-7

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Breadth:

    0.251 inch

  • Body Depth:

    0.346 inch

  • Body Length:

    1.77 inch

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    4.2A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    80u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    4.2 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    17

  • UL Flammability Code:

    94V-0

1-1744418-7 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-1744418-7 connector is typically specified in the TE Connectivity application notes or installation instructions, but a general guideline is to apply 0.5-1.5 Nm (5-15 in-lbs) of torque.
  • The 1-1744418-7 connector is designed to meet the requirements of various industries, including automotive and industrial, which often involve high-vibration environments. However, it's essential to consult with TE Connectivity or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The 1-1744418-7 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand some exposure to chemicals. However, it's crucial to review the specific environmental requirements of your application and consult with TE Connectivity or a qualified engineer to ensure the connector meets those requirements.
  • The mating cycle life of the 1-1744418-7 connector is typically specified as 500-1000 mating cycles, depending on the application and environmental conditions. However, this information may not be readily available in the datasheet, and it's recommended to consult with TE Connectivity or a qualified engineer for more information.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout and design guidelines to ensure proper connector operation and prevent damage. These guidelines may include specific requirements for PCB thickness, hole size, and keep-out zones around the connector.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1744418-7 Overview

Use the download button to access the 1-1744418-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-174, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
