1-1744426-3 - TE Connectivity

Description: Header Housing Assy, EP 2.5 RA, 13 Pos.

Download 1-1744426-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1744426-3 - TE Connectivity - PCB symbol
click to zoom

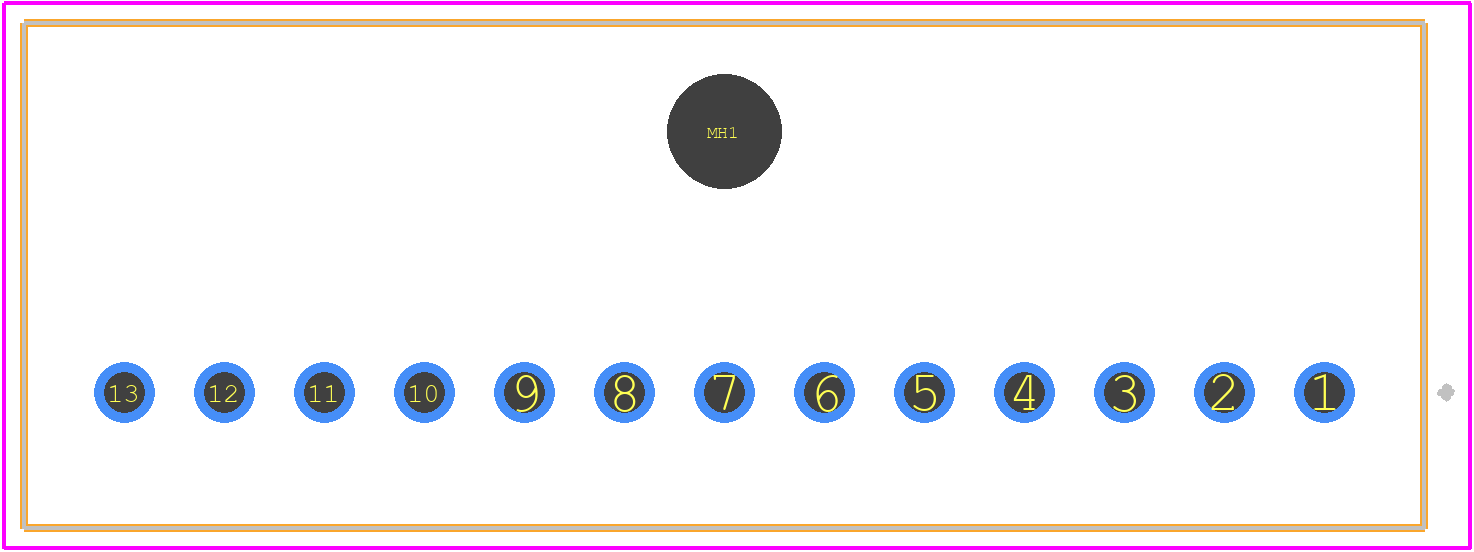

PCB Footprints
1-1744426-3 - TE Connectivity PCB footprint - Other - Other - 1-1744426-3-2
click to zoom
3D Models
1-1744426-3 - TE Connectivity - 3D model - Other - 1-1744426-3-2
click to zoom

1-1744426-3 Details

  • Manufacturer Part Number:

    1-1744426-3

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    8

  • Body Depth:

    0.299 inch

  • Body Length:

    1.377 inch

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    4.2A

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    200u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    4.2 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    13

  • UL Flammability Code:

    94V-0

  • Wire Size-Max:

    20 AWG

  • Wire Size-Min:

    26 AWG

1-1744426-3 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1744426-3 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's guidelines for proper torque specification.
  • Yes, the 1-1744426-3 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, industrial, and automotive.
  • The 1-1744426-3 connector is designed to operate in a wide temperature range of -40°C to 125°C (-40°F to 257°F). It also meets the IEC 60529 IP67 standard for ingress protection, making it suitable for use in harsh environments. However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for environmental considerations.
  • The 1-1744426-3 connector has a mating cycle life of 500 cycles minimum, making it suitable for applications that require frequent mating and unmating.
  • The 1-1744426-3 connector is designed to be compatible with other TE Connectivity products and third-party components that meet the same industry standards. However, it's essential to consult the specific application requirements and TE Connectivity's guidelines for compatibility and interoperability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1744426-3 Overview

Use the download button to access the 1-1744426-3 schematic symbol, PCB footprint, and 3D model.
