1-1744427-0 - TE Connectivity

Description: Configuration Features: Number of Rows 1 | Number of Power Positions 10 | PCB Mount Orientation Vertical | Number of Positions 10 | Contact Features: Contact Mating Area Plating Material Thickness 1 MICM | Contact Retention Within Housing Without | Contact Base Material Brass | Contact Layout Inline | Contact Mating Area Plating Material Tin | Contact Mating Area Plating Material Thickness 39.37 MICIN | PCB Contact Termination Area Plating Material Tin | PCB Contact Termination Area Plating Material Thickne

Download 1-1744427-0 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1744427-0 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

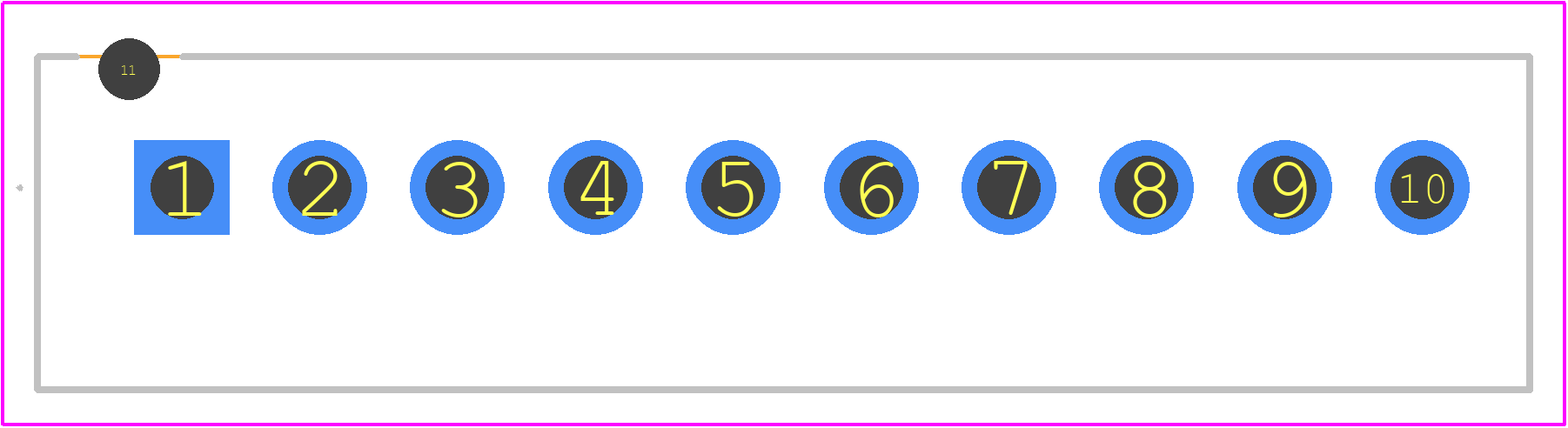

1-1744427-0 - TE Connectivity PCB footprint - Other - Other - 1-1744427-0-2
click to zoom
3D Models
1-1744427-0 - TE Connectivity - 3D model - Other - 1-1744427-0-2
click to zoom

1-1744427-0 Details

  • Manufacturer Part Number:

    1-1744427-0

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    6.6

  • Body Depth:

    0.472 inch

  • Body Length:

    1.68 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    NATURAL

  • Insulator Material:

    POLYAMIDE

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    39.37u inch

  • Rated Current (Signal):

    8 A

  • Rated Voltage:

    250 V

  • Reference Standard:

    UL

  • Terminal Length:

    0.142 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-2

1-1744427-0 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-1744427-0 connector is typically between 0.5 to 1.5 Nm (4.4 to 13.3 in-lbs), but it's best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • The 1-1744427-0 connector is designed to meet the requirements of various industries, including automotive and industrial, which often involve high-vibration environments. However, it's essential to evaluate the specific application and consult with TE Connectivity's technical support to ensure the connector meets the required vibration specifications.
  • The 1-1744427-0 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F). While it can withstand some harsh environments, it's crucial to review the specific application requirements and consult TE Connectivity's technical support to ensure the connector meets the necessary environmental specifications.
  • The mating cycle life of the 1-1744427-0 connector is typically around 500 to 1000 cycles, depending on the specific application and environmental conditions. However, it's recommended to consult TE Connectivity's application notes or contact their technical support for more detailed information.
  • Yes, it's essential to follow TE Connectivity's recommended PCB layout and design guidelines to ensure proper connector operation and prevent issues such as signal integrity problems or mechanical stress. Consult the TE Connectivity application notes or contact their technical support for specific guidance.
