1-1747277-4 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

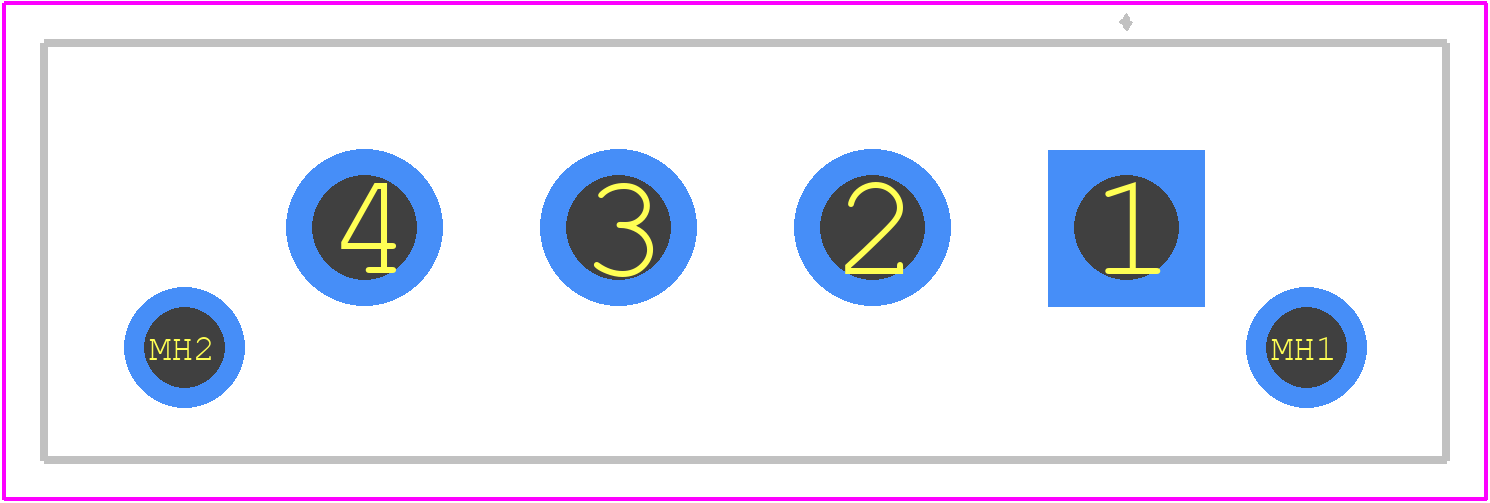

1-1747277-4 - TE Connectivity PCB footprint - Other - Other - 1-1747277-4-2

click to zoom

3D Models

1-1747277-4 - TE Connectivity - 3D model - Other - 1-1747277-4-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1747277-4
Part Number 1-1747277-4
Manufacturer TE Connectivity
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 1-1747277-4-2
Released Date Sep 7, 2021
Pinout / Pin List Click Here (Member Only)

1-1747277-4 Details

Manufacturer Part Number:
1-1747277-4
Brand Name:
AMP
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
TE Connectivity
YTEOL:
7.4
Board Mounting Option:
SOLDERABLE RETENTION CLIPS
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
MIL Conformance:
NO
Mains Connector Rating:
22A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
15u inch
Polarization Key:
POLARIZED
Rated Current (Signal):
22 A
Reference Standard:
UL
Terminal Pitch:
6.35 mm
Termination Type:
SOLDER
Total Number of Contacts:
4
UL Flammability Code:
94V-0

1-1747277-4 Frequently Asked Questions (FAQs)

The recommended torque value for the 1-1747277-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
Yes, the 1-1747277-4 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Category 2 vibration standard, making it suitable for applications with high vibration levels.
The 1-1747277-4 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific application requirements.
The 1-1747277-4 connector has a mating cycle life of at least 500 cycles, making it suitable for applications that require frequent mating and unmating.
Yes, the 1-1747277-4 connector is RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) compliant, meeting the European Union's regulations for environmental sustainability.

Trust Checks

Community Provided

System Verified

Community Approved

1-1747277-4 Overview

Use the download button to access the 1-1747277-4 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-174, or try a keyword search, such as Headers and Edge Type Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
