1-178203-6 - TE Connectivity

1-178203-6 Details

• Manufacturer Part Number:

  1-178203-6

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  TE Connectivity

• YTEOL:

  0

• Additional Feature:

  AMP

• Body Breadth:

  1.063 inch

• Body Depth:

  1.209 inch

• Body Length:

  4.913 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  COMBINATION LINE CONNECTOR

• Contact Finish Mating:

  NOT SPECIFIED

• Contact Gender:

  MALE

• Contact Material:

  NOT SPECIFIED

• Contact Pattern:

  STAGGERED

• Contact Resistance:

  20 mΩ

• Contact Style:

  SQ PIN-SKT

• DIN Conformance:

  NO

• Dielectric Withstanding Voltage:

  1000VAC V

• Durability:

  30 Cycles

• Empty Shell:

  NO

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  5.7824 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  GRAY

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• MIL Conformance:

  NO

• Mating Contact Pitch:

  0.142 inch

• Mating Contact Row Spacing:

  0.189 inch

• Mating Information:

  MULTIPLE MATING PARTS AVAILABLE

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  4

• Number of Rows Loaded:

  4

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -30 °C

• Option:

  GENERAL PURPOSE

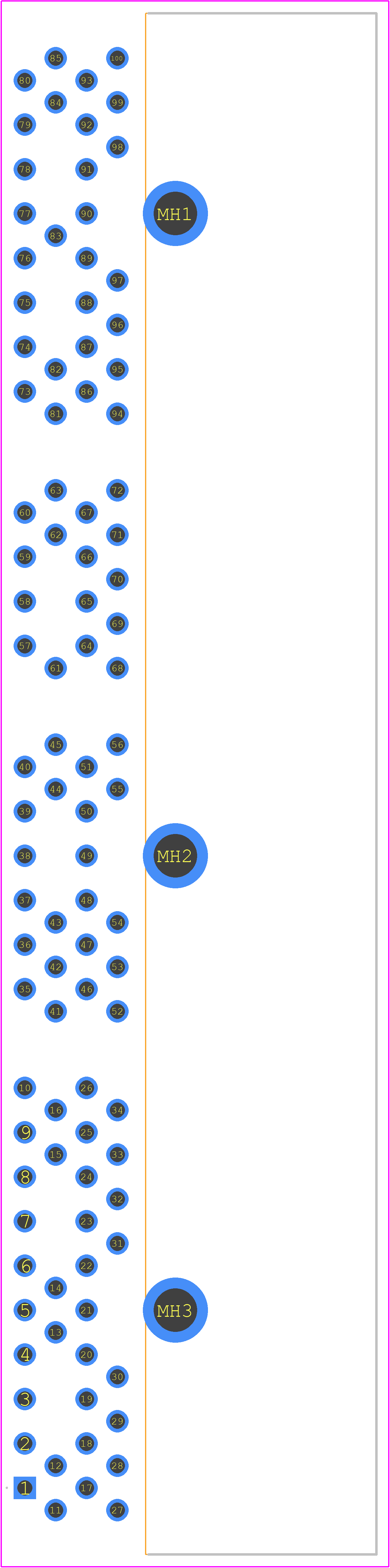

• PCB Contact Pattern:

  STAGGERED

• PCB Contact Row Spacing:

  2.4892 mm

• Polarization Key:

  POLARIZED HOUSING

• Terminal Length:

  0.157 inch

• Terminal Pitch:

  3.6068 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  100

• Withdrawl Force-Min:

  .5004 N
