1-178294-3 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

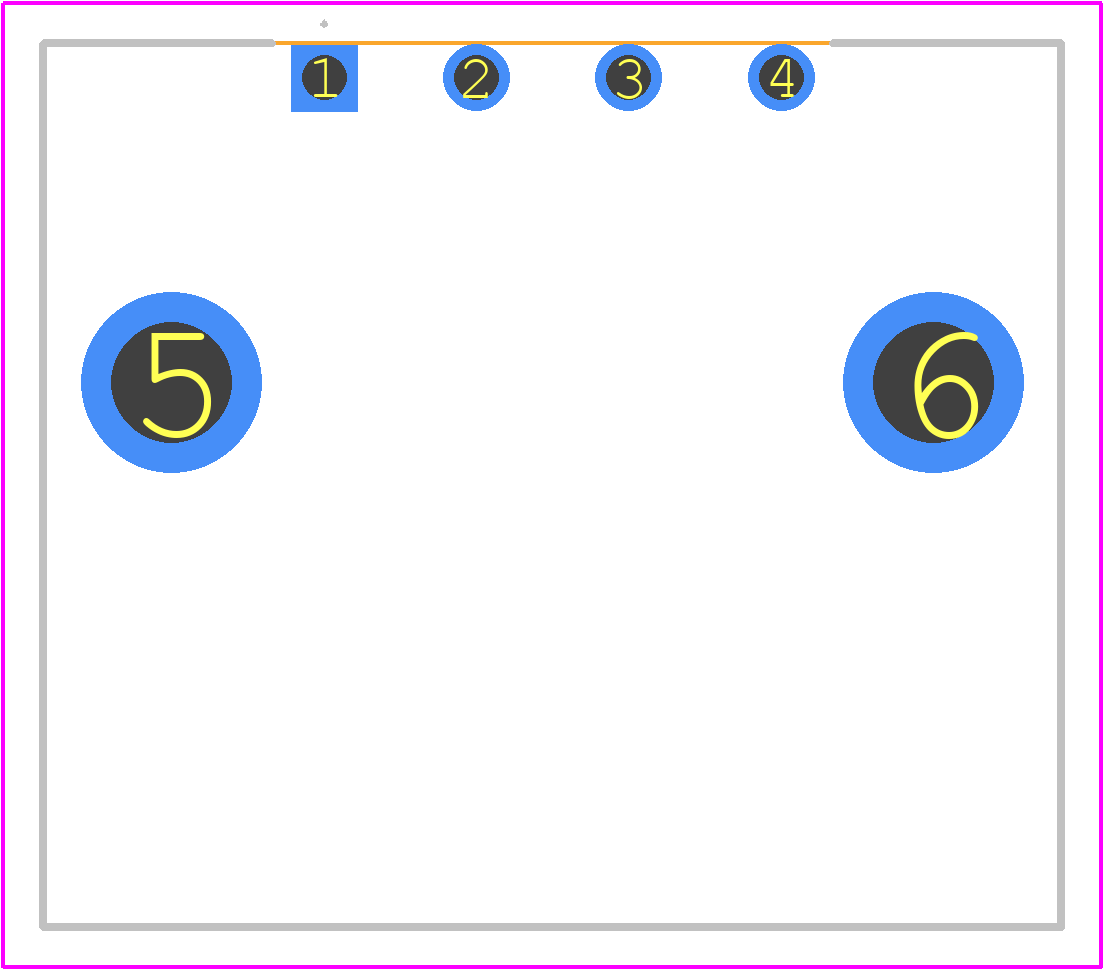

1-178294-3 - TE Connectivity PCB footprint - Other - Other - 1-178294-3-3

click to zoom

3D Models

1-178294-3 - TE Connectivity - 3D model - Other - 1-178294-3-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-178294-3
Part Number 1-178294-3
Manufacturer TE Connectivity
Pin Count 6
Part Category Connector
Package Category Other
Footprint Name Other - 1-178294-3-3
Released Date Dec 24, 2024
Pinout / Pin List Click Here (Member Only)

1-178294-3 Details

Manufacturer Part Number:
1-178294-3
Brand Name:
AMP
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
7.3
Board Mounting Option:
SOLDERABLE RETENTION CLIPS
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
MIL Conformance:
NO
Mains Connector Rating:
8A
Mating Information:
1-178288-4
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
30u inch
Polarization Key:
POLARIZED
Rated Current (Signal):
8 A
Reference Standard:
UL
Terminal Pitch:
3.81 mm
Termination Type:
SOLDER
Total Number of Contacts:
4
UL Flammability Code:
94V-0

1-178294-3 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (5-7 in-lbs) for the screw terminals. However, it's essential to consult the TE Connectivity application notes or contact their technical support for specific guidance.
Yes, the 1-178294-3 connector is designed to withstand vibrations. However, it's crucial to ensure proper mounting and secure the connector to prevent damage. Consult TE Connectivity's vibration testing data and application notes for more information.
The 1-178294-3 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
While it's technically possible to use a different wire gauge, it's not recommended. The 1-178294-3 connector is designed for specific wire gauges (22-18 AWG). Using a different gauge may compromise the connector's performance, reliability, and safety.
To ensure proper mating and unmating, follow the recommended mating and unmating sequences outlined in TE Connectivity's application notes. Additionally, ensure the connector is properly cleaned and inspected before use.

Trust Checks

Community Provided

System Verified

Community Approved

1-178294-3 Overview

Use the download button to access the 1-178294-3 schematic symbol, PCB footprint, and 3D model.
