1-178296-5 - TE Connectivity

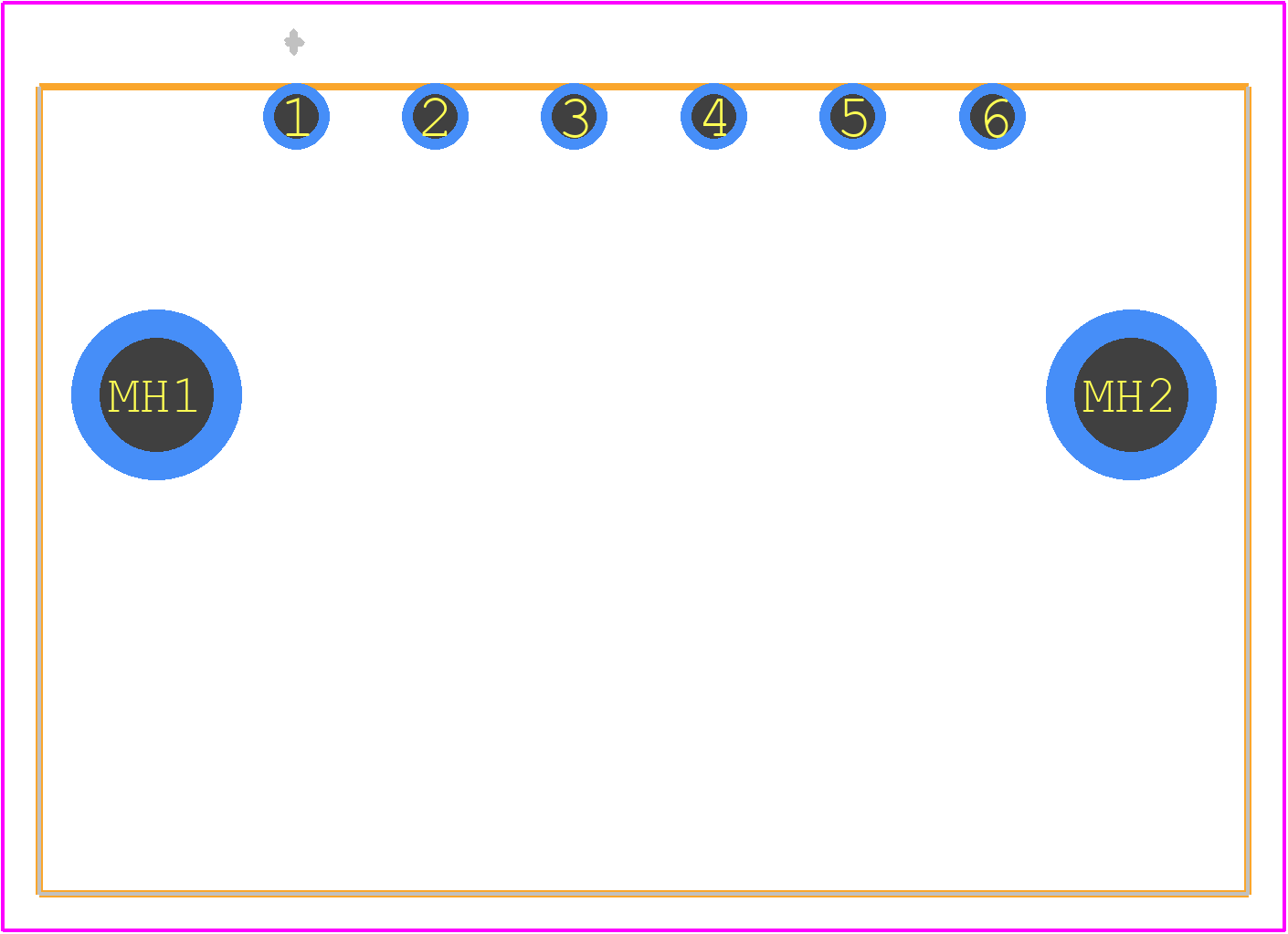

1-178296-5 Details

• Manufacturer Part Number:

  1-178296-5

• Brand Name:

  AMP

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.30

• Manufacturer:

  TE Connectivity

• YTEOL:

  7.3

• Additional Feature:

  POLARIZED

• Board Mounting Option:

  SOLDERABLE RETENTION CLIPS

• Body Breadth:

  0.427 inch

• Body Depth:

  0.87 inch

• Body Length:

  1.301 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  RECTANGULAR POWER CONNECTOR

• Contact Arrangement:

  S0P6

• Contact Finish Mating:

  NOT APPLICABLE

• Contact Gender:

  MALE

• Contact Material:

  NOT APPLICABLE

• Contact Style:

  BLADE PIN-SKT

• DIN Conformance:

  NO

• Durability:

  100 Cycles

• EMI Shielded:

  NO

• Empty Shell:

  YES

• Filter Feature:

  NO

• IEC Conformance:

  NO

• Insertion Force-Max:

  4.8928 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  GLASS FILLED POLYESTER

• MIL Conformance:

  NO

• Mains Connector Rating:

  15A

• Mating Information:

  1-178288-6

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number of Ports:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• Panel Mount:

  NO

• Plating Thickness:

  80u inch

• Polarization Key:

  POLARIZED

• Rated Current (Signal):

  15 A

• Reference Standard:

  UL

• Shell Material:

  GLASS FILLED POLYETHYLENE POLYESTER

• Terminal Length:

  0.15 inch

• Terminal Pitch:

  3.81 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  6

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  .4726 N
