1-178298-2 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

PCB Footprints

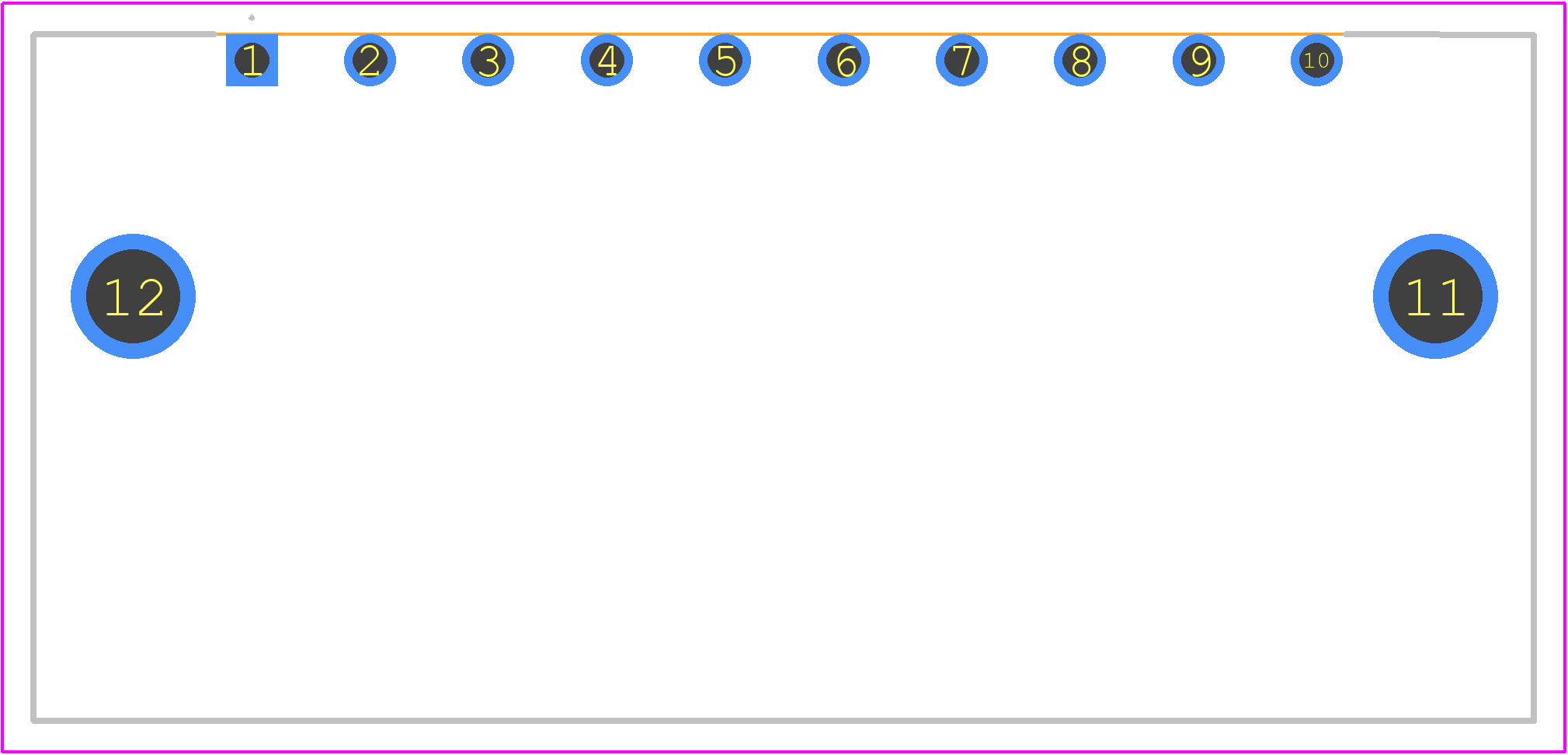

1-178298-2 - TE Connectivity PCB footprint - Other - Other - 1-178298-2-2

click to zoom

3D Models

1-178298-2 - TE Connectivity - 3D model - Other - 1-178298-2-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-178298-2
Part Number 1-178298-2
Manufacturer TE Connectivity
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - 1-178298-2-2
Released Date Jan 20, 2026
Last Modified Date Jan 20, 2026 7:08 AM UTC
Pinout / Pin List Click Here (Member Only)

1-178298-2 Details

Manufacturer Part Number:
1-178298-2
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Factory Lead Time:
11 Weeks, 5 Days
Manufacturer:
TE Connectivity
YTEOL:
7
Board Mounting Option:
SOLDERABLE RETENTION CLIPS
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
MIL Conformance:
NO
Mains Connector Rating:
8A
Mating Information:
1-178288-8
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
1
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
15u inch
Polarization Key:
POLARIZED
Rated Current (Signal):
8 A
Reference Standard:
UL
Terminal Pitch:
3.81 mm
Termination Type:
SOLDER
Total Number of Contacts:
10
UL Flammability Code:
94V-0

1-178298-2 Frequently Asked Questions (FAQs)

The recommended torque value is 0.5-0.7 Nm (4.4-6.3 in-lbs) for the screw terminals.
Yes, the 1-178298-2 connector is designed to withstand high-vibration environments, but it's recommended to consult with TE Connectivity's application engineers for specific vibration testing and validation.
The operating temperature range for the 1-178298-2 connector is -40°C to 125°C (-40°F to 257°F).
Yes, the 1-178298-2 connector is designed to be resistant to harsh environments, including high humidity and exposure to certain chemicals. However, it's recommended to consult with TE Connectivity's application engineers for specific environmental testing and validation.
While the 1-178298-2 connector is designed for use with AWG 20-24 wires, it may be possible to use it with other wire sizes. However, this would require consultation with TE Connectivity's application engineers and may require custom testing and validation.
