1-178298-3 - TE Connectivity

Description: D-3100S,Header,Plug,r/a,10 tab contact

Download 1-178298-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-178298-3 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

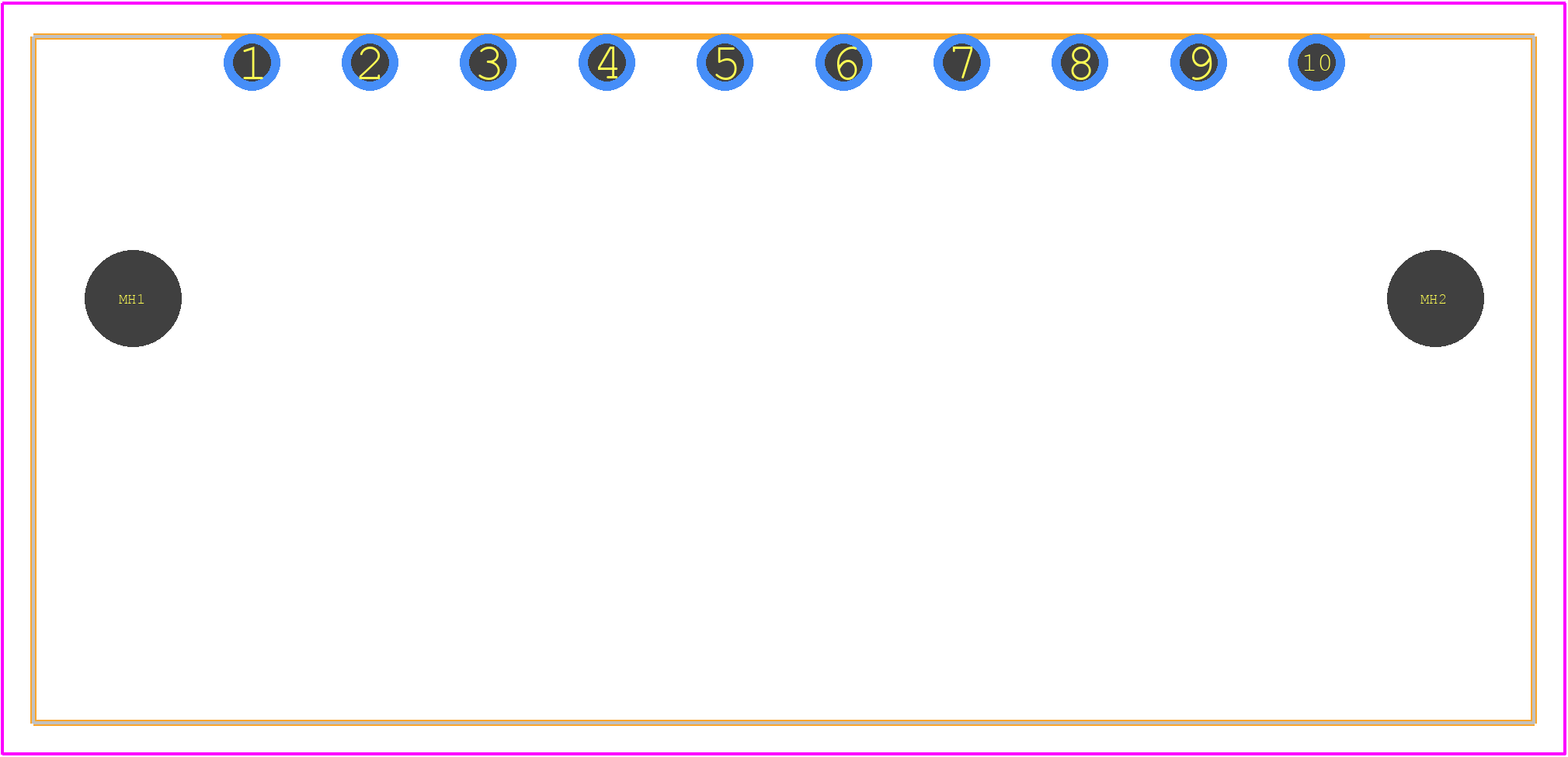

1-178298-3 - TE Connectivity PCB footprint - Other - Other - 1-178298-3-1
click to zoom
3D Models
1-178298-3 - TE Connectivity - 3D model - Other - 1-178298-3-1
click to zoom

1-178298-3 Details

  • Manufacturer Part Number:

    1-178298-3

  • Brand Name:

    AMP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    8A

  • Mating Information:

    1-178288-8

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    30u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    8 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    3.81 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0
