1-179959-2 - TE Connectivity

Description: TE Connectivity D-5000 Series, 10.16mm Pitch 6 Way Right Angle PCB Header, Solder Termination

Download 1-179959-2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

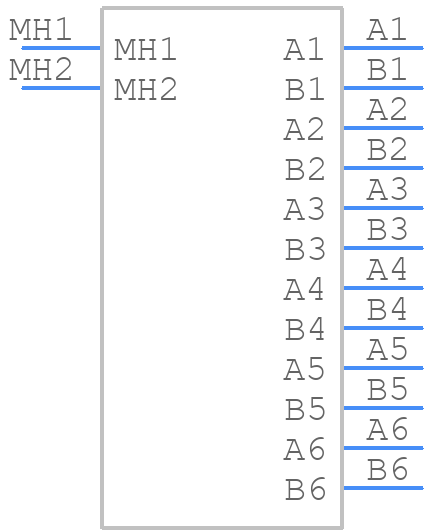

1-179959-2 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

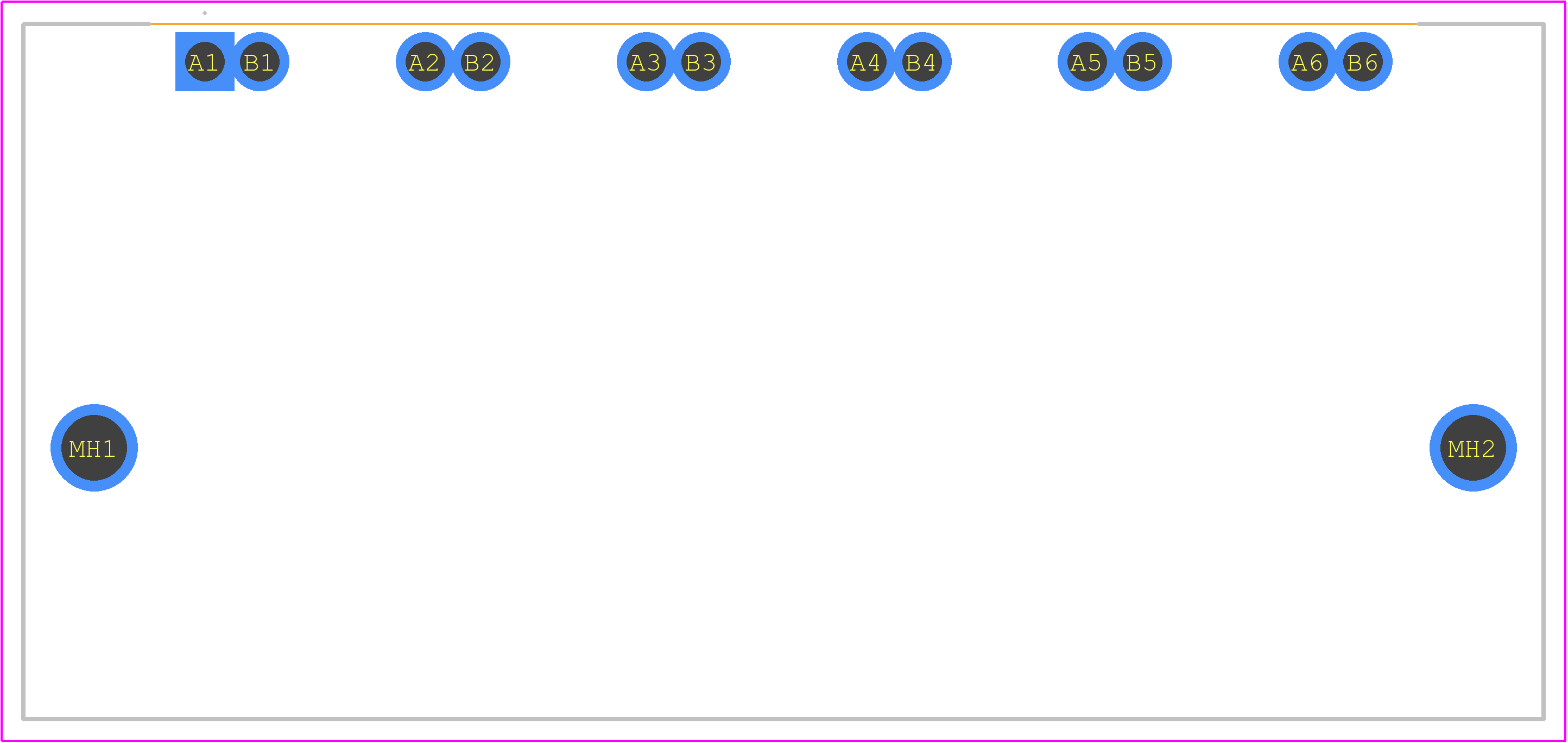

1-179959-2 - TE Connectivity PCB footprint - Other - Other - 1-179959-2-3
click to zoom
3D Models
1-179959-2 - TE Connectivity - 3D model - Other - 1-179959-2-3
click to zoom

1-179959-2 Details

  • Manufacturer Part Number:

    1-179959-2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7.3

  • Additional Feature:

    POLARIZED

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    30A

  • Mating Information:

    1-179958-6

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    30 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    10.16 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    6

  • UL Flammability Code:

    94V-0

1-179959-2 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
  • Yes, the 1-179959-2 connector is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels. However, it's essential to ensure proper mounting and secure the connector to prevent damage or disconnection.
  • The 1-179959-2 connector has a rating of IP20, which means it provides some protection against solid objects and limited protection against water. While it can be used in outdoor applications, it's essential to provide additional protection, such as a waterproof enclosure or sealant, to ensure reliable operation in harsh environments.
  • While the datasheet specifies AWG 20-18 wire sizes, the connector can accommodate a range of wire sizes. However, it's essential to ensure the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or disconnection.
  • The 1-179959-2 connector has an operating temperature range of -40°C to 105°C (-40°F to 221°F). It's essential to ensure the connector is used within this temperature range to maintain reliable operation and prevent damage.
