1-1823504-1 - TE Connectivity

Description: Body Features: Connector & Keying Code A-B | Primary Product Color Black | Configuration Features: Number of Signal Positions 124 | PCB Mount Orientation Vertical | Number of Positions 124 | Number of Rows 4 | Number of Sections 1 | Number of Rows 3 | Contact Features: Contact Type Tab | Mating Tab Thickness .8 MM | Mating Tab Thickness .025 INCH | Mating Tab Width 1.5 MM | Contact Size 2.8mm | Mating Tab Thickness .031 INCH | Contact Size 1.5mm | Mating Tab Width 2.8 MM | Mating Tab Thickness .6 MM | Matin

Download 1-1823504-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1823504-1 - TE Connectivity - PCB symbol
click to zoom

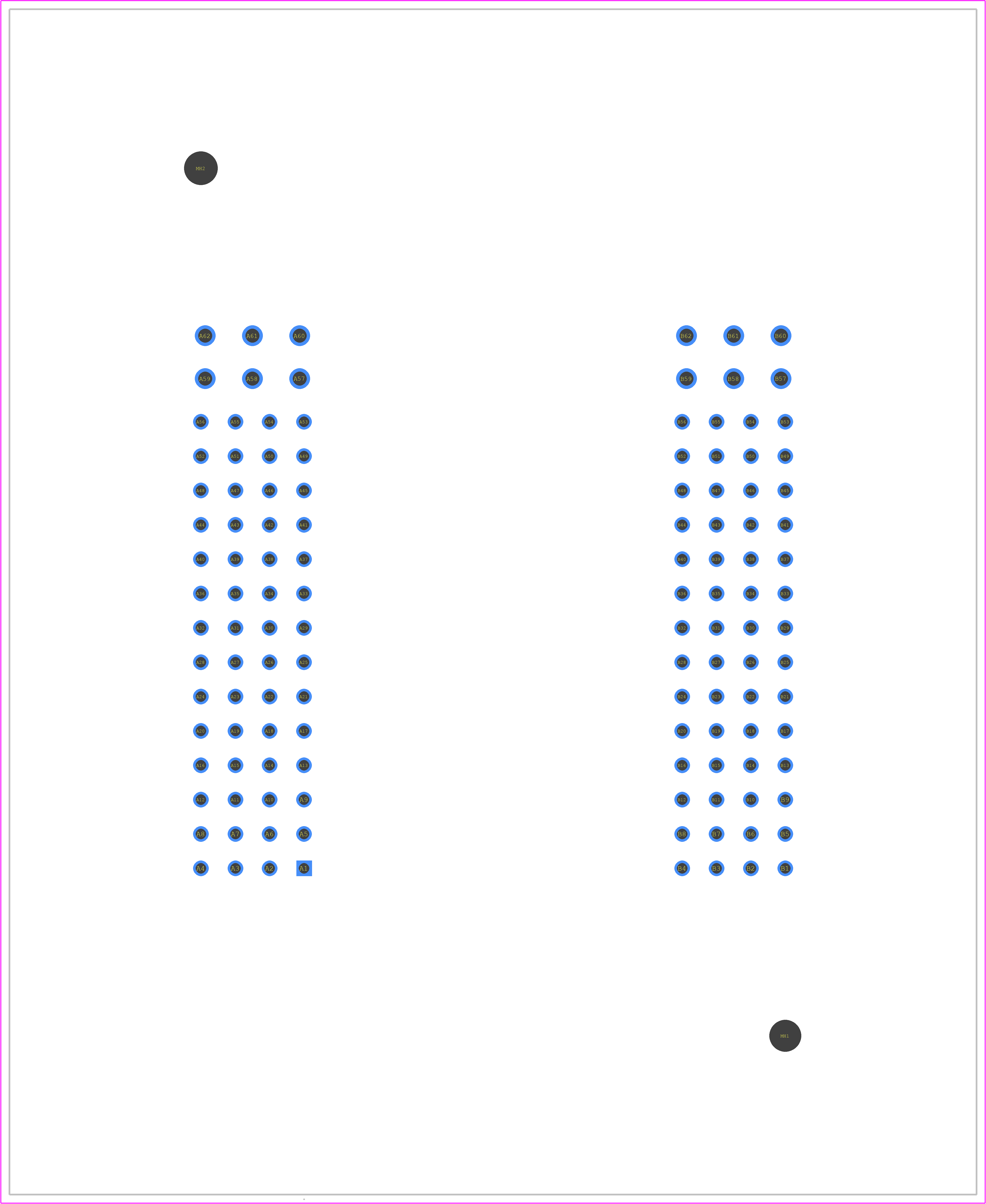

PCB Footprints
1-1823504-1 - TE Connectivity PCB footprint - Other - Other - 1-1823504-1-2
click to zoom
3D Models
1-1823504-1 - TE Connectivity - 3D model - Other - 1-1823504-1-2
click to zoom

1-1823504-1 Details

  • Manufacturer Part Number:

    1-1823504-1

  • Brand Name:

    TE Connectivity

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    TE Connectivity

  • Body Breadth:

    5.433 inch

  • Body Length:

    4.433 inch

  • Connector Type:

    RACK AND PANEL CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    YES

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    115/230VAC

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number of Ports:

    1

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Rated Voltage:

    36 V

  • Reference Standard:

    UL

  • Terminal Pitch:

    4 mm

  • Termination Type:

    SOLDER

  • UL Flammability Code:

    94V-0

1-1823504-1 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-1823504-1 connector is typically between 0.5-1.5 Nm (5-15 in-lbs), but it's best to consult the TE Connectivity application notes or contact their technical support for specific guidance.
  • The 1-1823504-1 connector is designed to meet the requirements of various industries, including automotive and industrial, which often involve high-vibration environments. However, it's essential to evaluate the specific application and consult with TE Connectivity or a qualified engineer to ensure the connector meets the necessary vibration and shock requirements.
  • The 1-1823504-1 connector is designed to operate in a variety of environments, including outdoor and humid climates. However, it's crucial to consider the specific environmental conditions, such as temperature, humidity, and exposure to chemicals or water, and consult with TE Connectivity or a qualified engineer to ensure the connector meets the necessary environmental requirements.
  • The maximum operating temperature for the 1-1823504-1 connector is typically around 125°C (257°F), but it's essential to consult the datasheet or contact TE Connectivity for specific temperature ratings and derating information.
  • The 1-1823504-1 connector is designed to be versatile, but its compatibility with a specific PCB or module design depends on various factors, such as the PCB layout, module dimensions, and connector orientation. It's recommended to consult with TE Connectivity or a qualified engineer to ensure the connector is compatible with your design and meets the necessary mechanical and electrical requirements.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1823504-1 Overview

Use the download button to access the 1-1823504-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-182, or try a keyword search, such as Multiway Rack and Panel Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
