1-1825008-0 footprint, schematic symbol and 3D model by TE Connectivity

Symbol

click to zoom

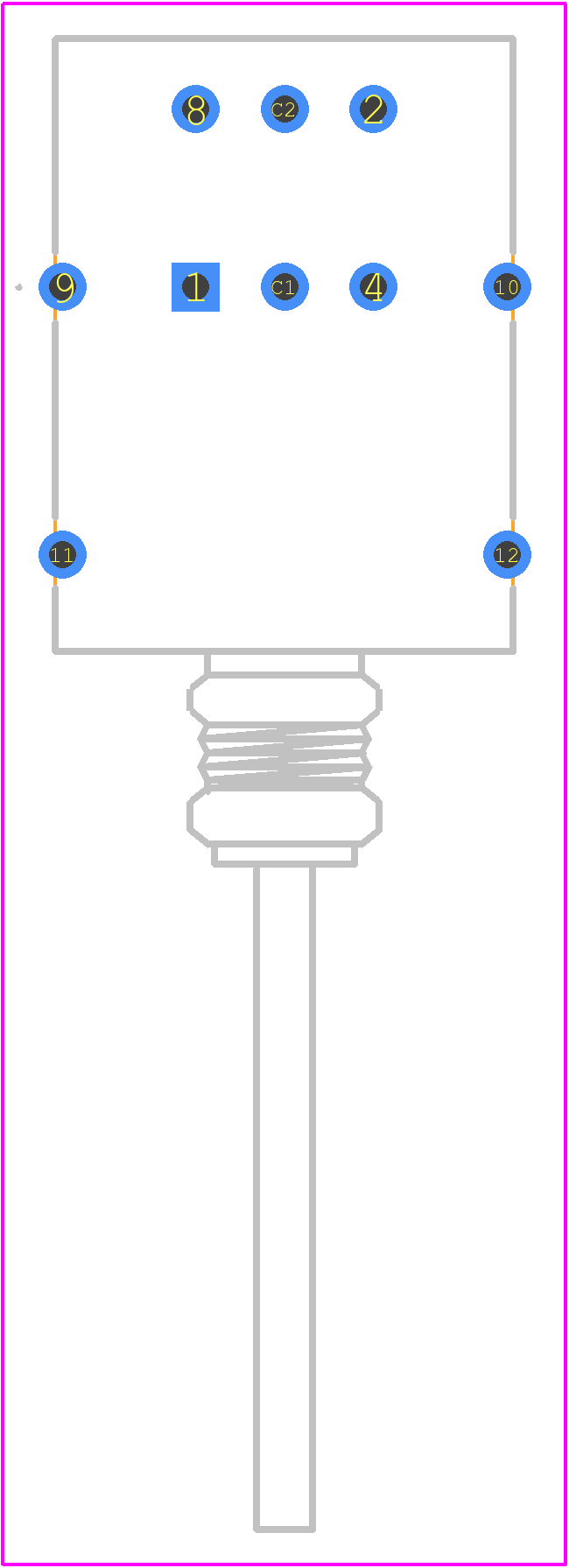

PCB Footprints

1-1825008-0 - TE Connectivity PCB footprint - Other - Other - 1-1825008-0-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1825008-0
Part Number 1-1825008-0
Manufacturer TE Connectivity
Pin Count 10
Part Category Switch
Package Category Other
Footprint Name Other - 1-1825008-0-6
Released Date Oct 17, 2022
Last Modified Date Dec 3, 2024 9:24 AM UTC
Pinout / Pin List Click Here (Member Only)

1-1825008-0 Details

Manufacturer Part Number:
1-1825008-0
Brand Name:
TE Connectivity
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
ROHS COMPLIANT
ECCN Code:
EAR99
HTS Code:
8536.50.90.20
Manufacturer:
TE Connectivity
YTEOL:
0
Actuator Type:
METAL SHAFT
Body Breadth:
10 mm
Body Height:
10 mm
Body Length or Diameter:
12 mm
Center Contact Plating:
GOLD OVER NICKEL
Contact (AC) Max Rating R Load:
.02A@20VAC
Contact Current(AC)-Max:
0.4 A
Contact Current(DC)-Max:
0.4 A
Contact (DC) Max Rating R Load:
.02A@20VDC
Contact Voltage(AC)-Max:
20 V
Contact Voltage(DC)-Max:
20 V
Electrical Life:
10000 Cycle(s)
End Contact Material:
COPPER ALLOY
End Contact Plating:
GOLD OVER NICKEL
Housing Material:
POLYETHYLENE
Mounting Feature:
PANEL MOUNT
Number of Positions:
10
Number of Switch Sections:
16
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-30 °C
Surface Mount:
NO
Switch Action:
LATCHED
Switch Function:
BINARY CODED HEXADECIMAL
Switch Type:
ROTARY CODED SWITCH
Termination Type:
SOLDER

1-1825008-0 Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals of the 1-1825008-0 connector is 0.5-0.7 Nm (5-7 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the connector.
Yes, the 1-1825008-0 connector is designed to withstand vibrations and can be used in high-vibration applications. However, it's crucial to ensure that the connector is properly secured and that the screw terminals are tightened to the recommended torque to maintain reliable connections.
The 1-1825008-0 connector is designed for indoor use, but it can be used in outdoor applications with proper protection. It's recommended to use a protective enclosure or sealant to prevent moisture and environmental factors from affecting the connector's performance.
The maximum operating temperature of the 1-1825008-0 connector is 105°C (221°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
While the 1-1825008-0 connector is designed for use with AWG 20-18 wires, it can be used with other wire sizes. However, it's crucial to ensure that the wire size is compatible with the connector's terminal design and that the wire is properly secured to prevent damage or electrical issues.

Trust Checks

Community Provided

System Verified

Community Approved

1-1825008-0 Overview

Use the download button to access the 1-1825008-0 schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-182, or try a keyword search, such as Rotary Switches
