1-1825136-4 - TE Connectivity

Description: 5 A Toggle Switch, Single Pole - Double Throw Configuration (Pole-Throw), On On, 2 Position, 28 VDC, 125 VAC, Alcoswitch Gemini A Series

Download 1-1825136-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1825136-4 - TE Connectivity - PCB symbol
click to zoom

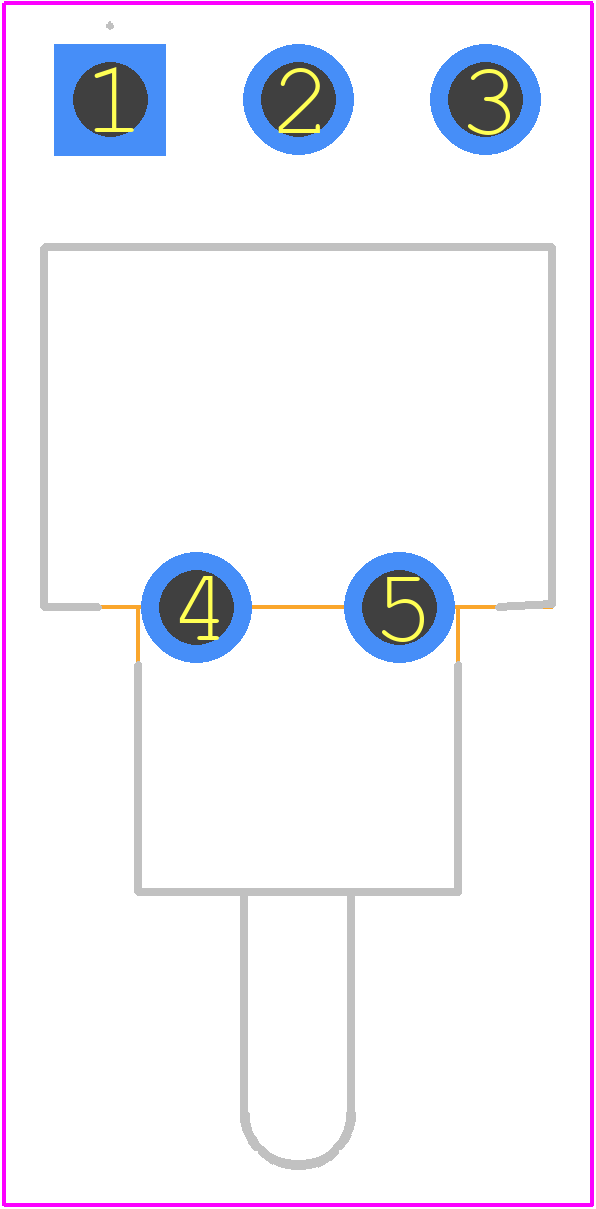

PCB Footprints
1-1825136-4 - TE Connectivity PCB footprint - Other - Other - 1-1825136-4-1
click to zoom
3D Models
1-1825136-4 - TE Connectivity - 3D model - Other - 1-1825136-4-1
click to zoom

1-1825136-4 Details

  • Manufacturer Part Number:

    1-1825136-4

  • Brand Name:

    Alcoswitch

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.65

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Actuator Finish:

    NICKEL

  • Actuator Type:

    SHORT LEVER

  • Body Breadth:

    12.7 mm

  • Body Height:

    6.86 mm

  • Body Length or Diameter:

    12.7 mm

  • Bushing Length:

    0.28 inch

  • Center Contact Plating:

    SILVER

  • Contact (AC) Max Rating R Load:

    5A@120VAC

  • Contact Current(AC)-Max:

    5 A

  • Contact Current(DC)-Max:

    5 A

  • Contact (DC) Max Rating R Load:

    5A@28VDC

  • Contact Function:

    ON-ON

  • Contact Resistance:

    0.01 mΩ

  • Contact Voltage(AC)-Max:

    125 V

  • Contact Voltage(DC)-Max:

    28 V

  • Dielectric Withstand Volts:

    1000 V

  • Electrical Life:

    6000 Cycle(s)

  • End Contact Material:

    COPPER ALLOY

  • Insulation Resistance:

    1000000000 Ω

  • Mounting Feature:

    PANEL MOUNT

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -30 °C

  • Sealing:

    EPOXY TERMINAL SEALED

  • Surface Mount:

    NO

  • Switch Action:

    LATCHED

  • Switch Function:

    SPDT

  • Switch Type:

    TOGGLE SWITCH

  • Termination Type:

    SOLDER

1-1825136-4 Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.7 Nm (4.4-6.3 in-lbs) to ensure secure connections.
  • Yes, the 1-1825136-4 connector is designed to withstand high-vibration environments, but it's recommended to follow TE Connectivity's guidelines for vibration testing and to consult with their application engineers for specific requirements.
  • The 1-1825136-4 connector has a rating of IP67, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes. However, it's recommended to apply additional protection, such as conformal coating or potting, for extended outdoor use.
  • While the datasheet specifies AWG 20-24 wire sizes, the connector can accommodate other wire sizes with some adjustments. Consult with TE Connectivity's application engineers to determine the feasibility of using alternative wire sizes.
  • The 1-1825136-4 connector has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for a wide range of applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1825136-4 Overview

Use the download button to access the 1-1825136-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-182, or try a keyword search, such as Toggle Switches

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
