1-1827872-4 - TE Connectivity

Description: Header vert 28 way TAB 2mm Black D-1

Download 1-1827872-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

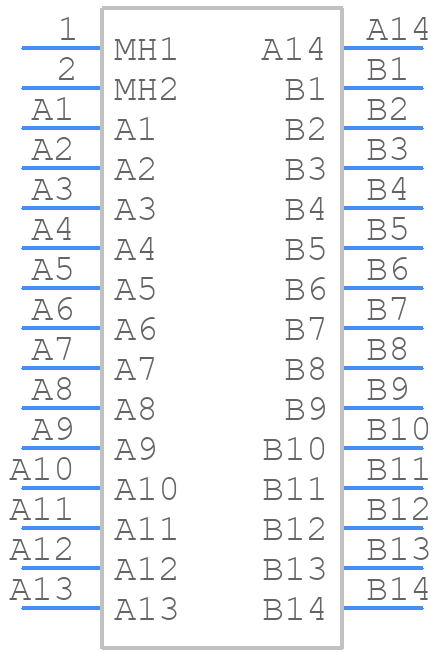

1-1827872-4 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

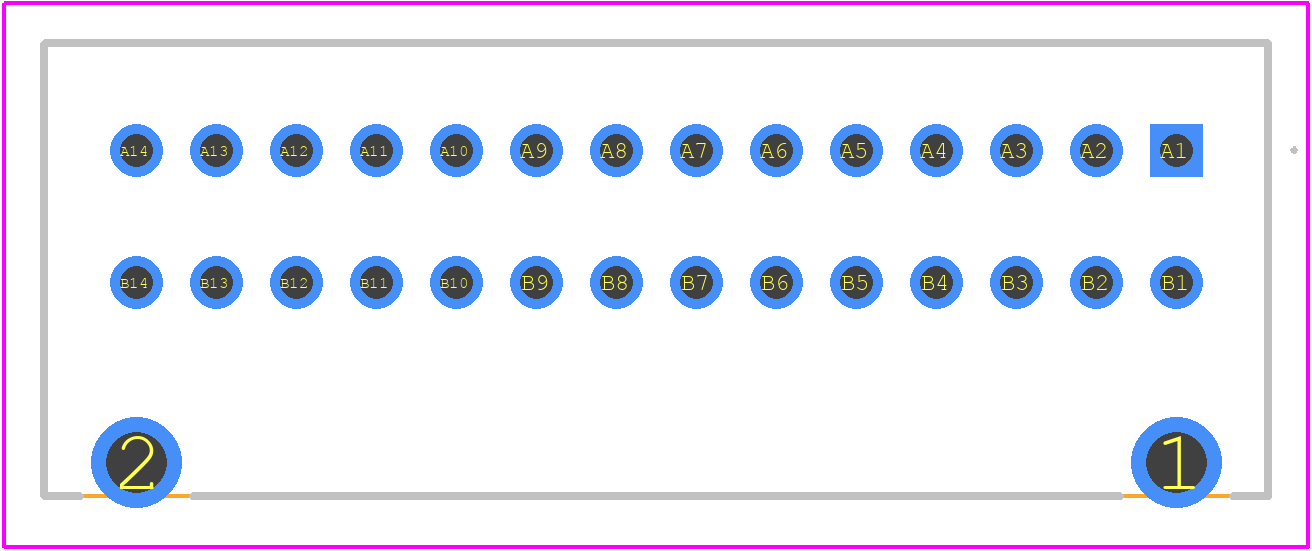

1-1827872-4 - TE Connectivity PCB footprint - Other - Other - 1-1827872-4-3
click to zoom
3D Models
1-1827872-4 - TE Connectivity - 3D model - Other - 1-1827872-4-3
click to zoom

1-1827872-4 Details

  • Manufacturer Part Number:

    1-1827872-4

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    3A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    28

  • UL Flammability Code:

    94V-0

1-1827872-4 Frequently Asked Questions (FAQs)

  • The recommended torque value for the 1-1827872-4 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow the recommended torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the 1-1827872-4 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications where vibration is a concern, such as in industrial, automotive, or aerospace industries.
  • The 1-1827872-4 connector is designed to operate in a temperature range of -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's essential to consult the datasheet and application notes for specific guidance on using the connector in harsh environments.
  • Yes, the 1-1827872-4 connector is designed to be compatible with other TE Connectivity products, including cable assemblies, connectors, and accessories. However, it's essential to verify compatibility before using the connector with other products.
  • The typical lead time for delivery of the 1-1827872-4 connector varies depending on the region, quantity, and availability. It's best to check with TE Connectivity or an authorized distributor for the most up-to-date lead time information.
