1-1827872-6 footprint, schematic symbol and 3D model by TE Connectivity

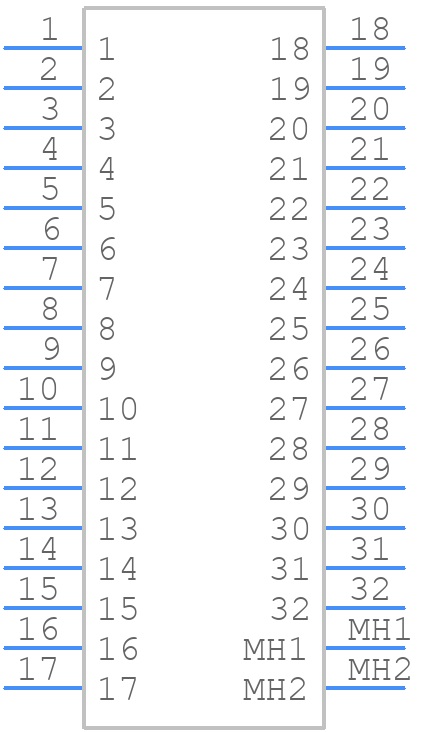

Symbol

click to zoom

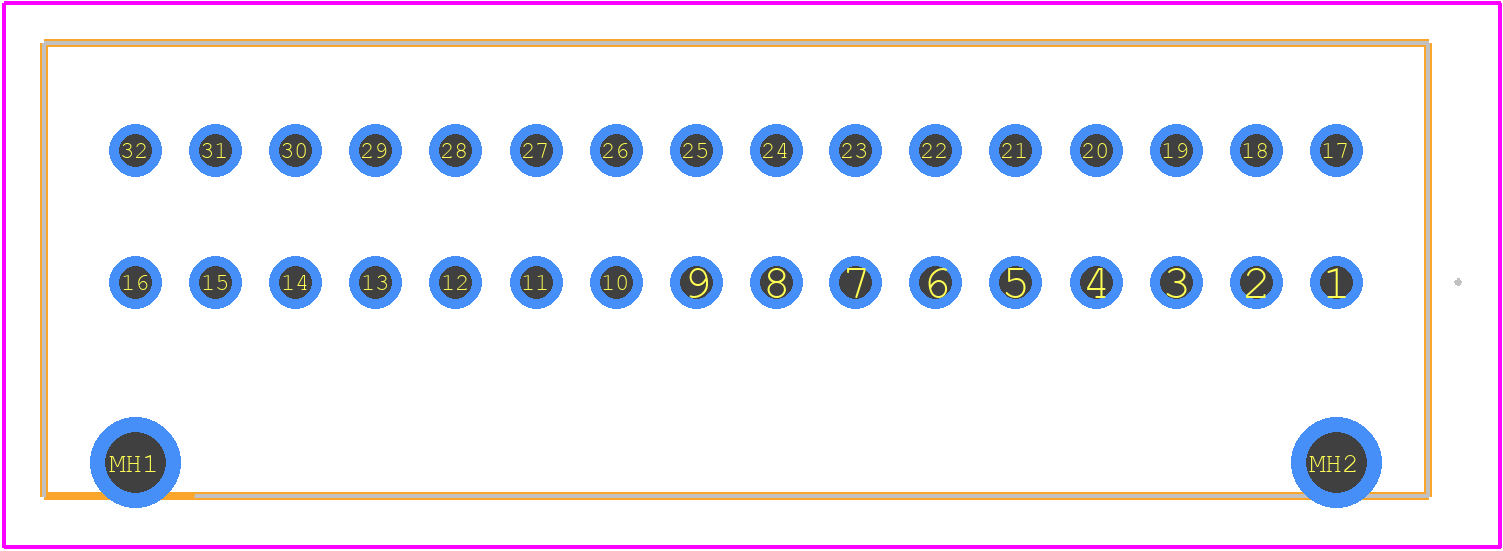

PCB Footprints

1-1827872-6 - TE Connectivity PCB footprint - Other - Other - 1-1827872-6-2

click to zoom

3D Models

1-1827872-6 - TE Connectivity - 3D model - Other - 1-1827872-6-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1827872-6
Part Number 1-1827872-6
Manufacturer TE Connectivity
Pin Count 34
Part Category Connector
Package Category Other
Footprint Name Other - 1-1827872-6-2
Released Date Oct 26, 2020
Pinout / Pin List Click Here (Member Only)

1-1827872-6 Details

Manufacturer Part Number:
1-1827872-6
Brand Name:
TE Connectivity
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Unknown
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
8
Board Mounting Option:
SOLDERABLE RETENTION CLIPS
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
MIL Conformance:
NO
Mains Connector Rating:
3A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
15u inch
Polarization Key:
POLARIZED
Rated Current (Signal):
3 A
Reference Standard:
UL
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
32
UL Flammability Code:
94V-0

1-1827872-6 Frequently Asked Questions (FAQs)

The recommended torque value for the 1-1827872-6 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque specifications.
Yes, the 1-1827872-6 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
The 1-1827872-6 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to consult TE Connectivity's documentation and environmental specifications to ensure the connector meets the specific requirements of your application.
The 1-1827872-6 connector is rated for a minimum of 500 mating cycles, ensuring reliable connections and minimizing the risk of wear and tear.
The 1-1827872-6 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's crucial to verify compatibility and consult TE Connectivity's documentation or contact their technical support for specific guidance.

Trust Checks

Expert Contribution

System Verified

Community Approved

1-1827872-6 Overview

Use the download button to access the 1-1827872-6 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-182, or try a keyword search, such as Power Connectors
