1-1827872-7 footprint, schematic symbol and 3D model by TE Connectivity

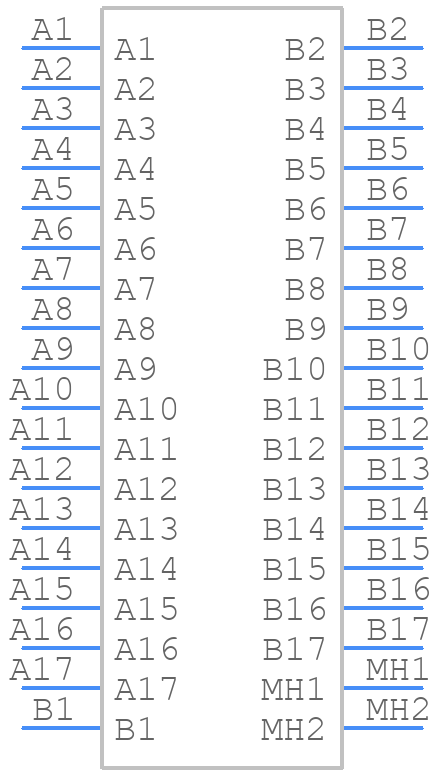

Symbol

click to zoom

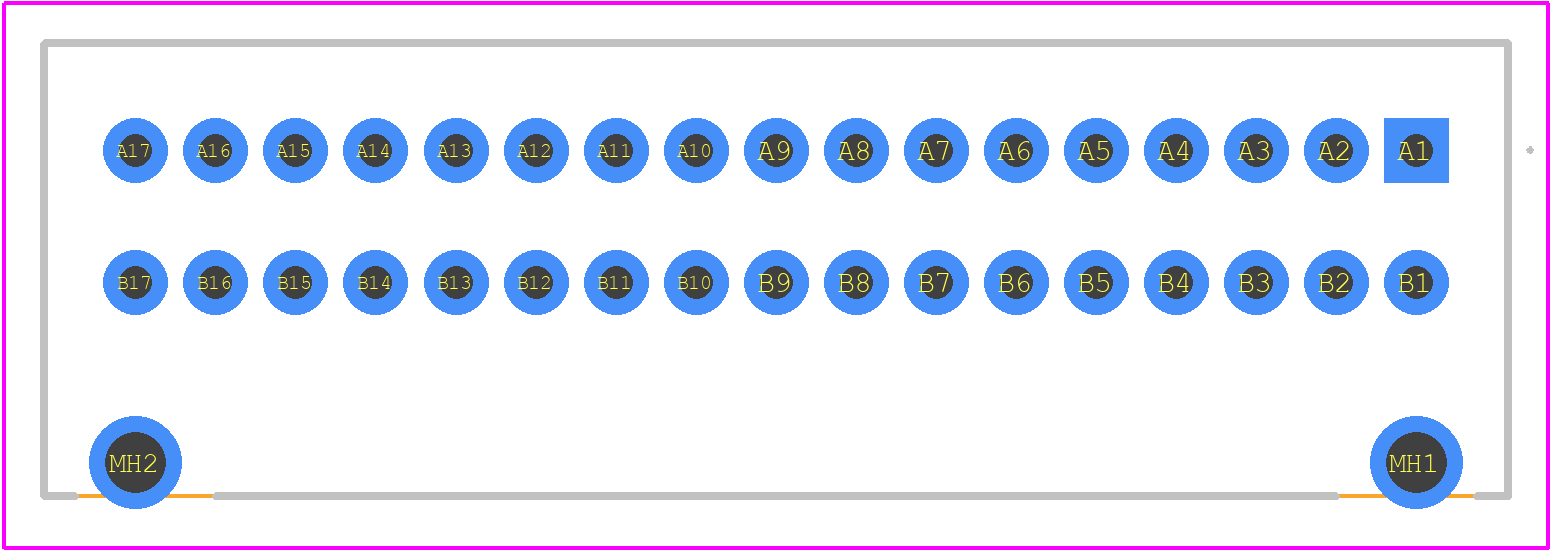

PCB Footprints

1-1827872-7 - TE Connectivity PCB footprint - Other - Other - 1-1827872-7-6

click to zoom

3D Models

1-1827872-7 - TE Connectivity - 3D model - Other - 1-1827872-7-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for 1-1827872-7
Part Number 1-1827872-7
Manufacturer TE Connectivity
Pin Count 36
Part Category Connector
Package Category Other
Footprint Name Other - 1-1827872-7-6
Released Date Oct 26, 2020
Pinout / Pin List Click Here (Member Only)

1-1827872-7 Details

Manufacturer Part Number:
1-1827872-7
Brand Name:
TE Connectivity
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Reach Compliance Code:
Compliant
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
TE Connectivity
YTEOL:
8
Board Mounting Option:
SOLDERABLE RETENTION CLIPS
Connector Type:
RECTANGULAR POWER CONNECTOR
Contact Finish Mating:
NOT APPLICABLE
Contact Gender:
MALE
Contact Material:
NOT APPLICABLE
DIN Conformance:
NO
EMI Shielded:
NO
Empty Shell:
YES
Filter Feature:
NO
IEC Conformance:
NO
Insulator Color:
BLACK
Insulator Material:
GLASS FILLED POLYESTER
MIL Conformance:
NO
Mains Connector Rating:
3A
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Ports:
1
Number of Rows Loaded:
2
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Panel Mount:
NO
Plating Thickness:
15u inch
Polarization Key:
POLARIZED
Rated Current (Signal):
3 A
Reference Standard:
UL
Terminal Pitch:
2 mm
Termination Type:
SOLDER
Total Number of Contacts:
34
UL Flammability Code:
94V-0

1-1827872-7 Frequently Asked Questions (FAQs)

The recommended torque value for the 1-1827872-7 connector is 0.5-1.5 Nm (4.4-13.3 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque specifications.
Yes, the 1-1827872-7 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
The 1-1827872-7 connector is designed to operate in a wide range of temperatures (-40°C to 125°C) and can withstand high humidity. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific requirements of your application.
The 1-1827872-7 connector is rated for a minimum of 500 mating cycles. However, this may vary depending on the specific application, usage, and environmental conditions.
The 1-1827872-7 connector is designed to be compatible with other TE Connectivity products and may be compatible with third-party connectors that meet the same industry standards. However, it's essential to verify compatibility before integrating the connector into your design.

Trust Checks

Community Provided

System Verified

Community Approved

1-1827872-7 Overview

Use the download button to access the 1-1827872-7 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like 1-182, or try a keyword search, such as Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
