Part Image

1-1827875-6 - TE Connectivity

Description: PCB Mount Header, Vertical, Wire-to-Board, 12 Position, 2.5 mm [.099 in] Centerline, Fully Shrouded, Gold (Au), Dynamic 1000 Series

Download 1-1827875-6 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
1-1827875-6 - TE Connectivity - PCB symbol
click to zoom

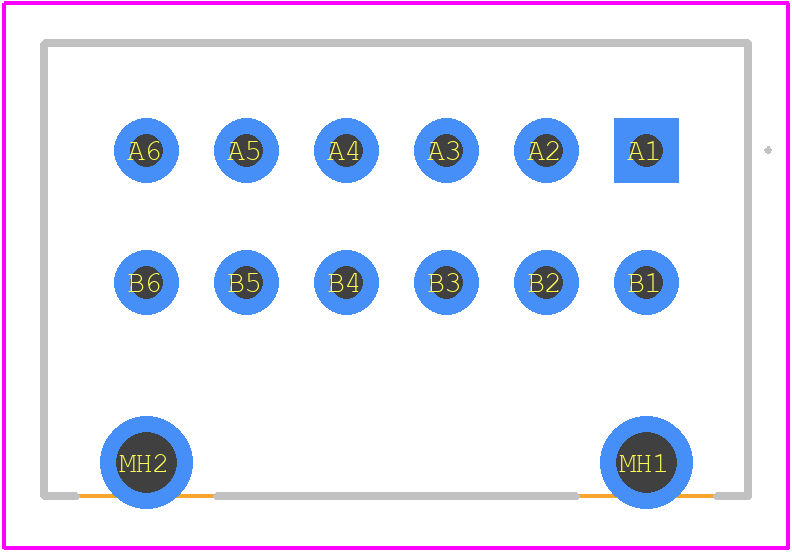

PCB Footprints
1-1827875-6 - TE Connectivity PCB footprint - Other - Other - 1-1827875-6-4
click to zoom
3D Models
1-1827875-6 - TE Connectivity - 3D model - Other - 1-1827875-6-4
click to zoom

1-1827875-6 Details

  • Manufacturer Part Number:

    1-1827875-6

  • Brand Name:

    TE Connectivity

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Unknown

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    TE Connectivity

  • YTEOL:

    7

  • Board Mounting Option:

    SOLDERABLE RETENTION CLIPS

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT APPLICABLE

  • DIN Conformance:

    NO

  • EMI Shielded:

    NO

  • Empty Shell:

    YES

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Color:

    BLACK

  • Insulator Material:

    GLASS FILLED POLYESTER

  • MIL Conformance:

    NO

  • Mains Connector Rating:

    5A

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Ports:

    1

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • Panel Mount:

    NO

  • Plating Thickness:

    15u inch

  • Polarization Key:

    POLARIZED

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Pitch:

    2.5 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    12

  • UL Flammability Code:

    94V-0

1-1827875-6 Frequently Asked Questions (FAQs)

  • The recommended torque for the 1-1827875-6 connector is 0.5-1.5 Nm (4-12 in-lbs). However, it's always best to consult the specific application requirements and TE Connectivity's documentation for precise torque values.
  • Yes, the 1-1827875-6 connector is designed to withstand high-vibration environments. It features a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
  • The 1-1827875-6 connector is rated for operating temperatures between -40°C to 125°C (-40°F to 257°F) and can withstand humidity up to 95% RH. However, it's essential to consult TE Connectivity's documentation and perform thorough testing to ensure the connector meets the specific environmental requirements of your application.
  • The 1-1827875-6 connector is rated for a minimum of 500 mating cycles. However, this can vary depending on the application, usage, and environmental conditions. It's recommended to consult TE Connectivity's documentation and perform testing to determine the connector's performance in your specific use case.
  • The 1-1827875-6 connector is designed to be compatible with other TE Connectivity products and some third-party components. However, it's essential to verify compatibility and consult TE Connectivity's documentation or contact their technical support to ensure seamless integration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1827875-6 Overview

Use the download button to access the 1-1827875-6 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-182, or try a keyword search, such as Power Connectors

About TE Connectivity

TE Connectivity, a global leader in connectivity and sensor solutions, designs and manufactures products that enable a more connected world. Serving a diverse range of industries, including automotive, industrial, medical, aerospace, and telecommunications, TE Connectivity offers a broad portfolio of products such as connectors, sensors, relays, and passive components. The company's innovations help improve the reliability and performance of electronic systems.
