1-1871315-7 - TE Connectivity

Description: Body Features: Connector & Keying Code X | PCB Retention Feature Material Copper Alloy | PCB Retention Feature Plating Material Pre-Tin | Primary Product Color Black | Configuration Features: Number of Rows 2 | Connector Contact Load Condition Fully Loaded | Number of Positions 34 | Number of Loaded Positions 34 | PCB Mount Orientation Vertical | Number of Columns 17 | Contact Features: Mating Tab Width .7 MM | Mating Tab Width .028 INCH | Contact Shape & Form Rectangular | Mating Tab Thickness .02 INCH | C

Download 1-1871315-7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

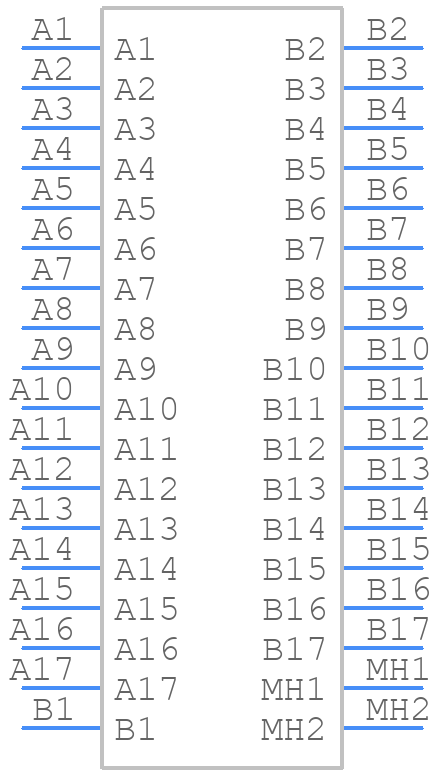

1-1871315-7 - TE Connectivity - PCB symbol
click to zoom
PCB Footprints

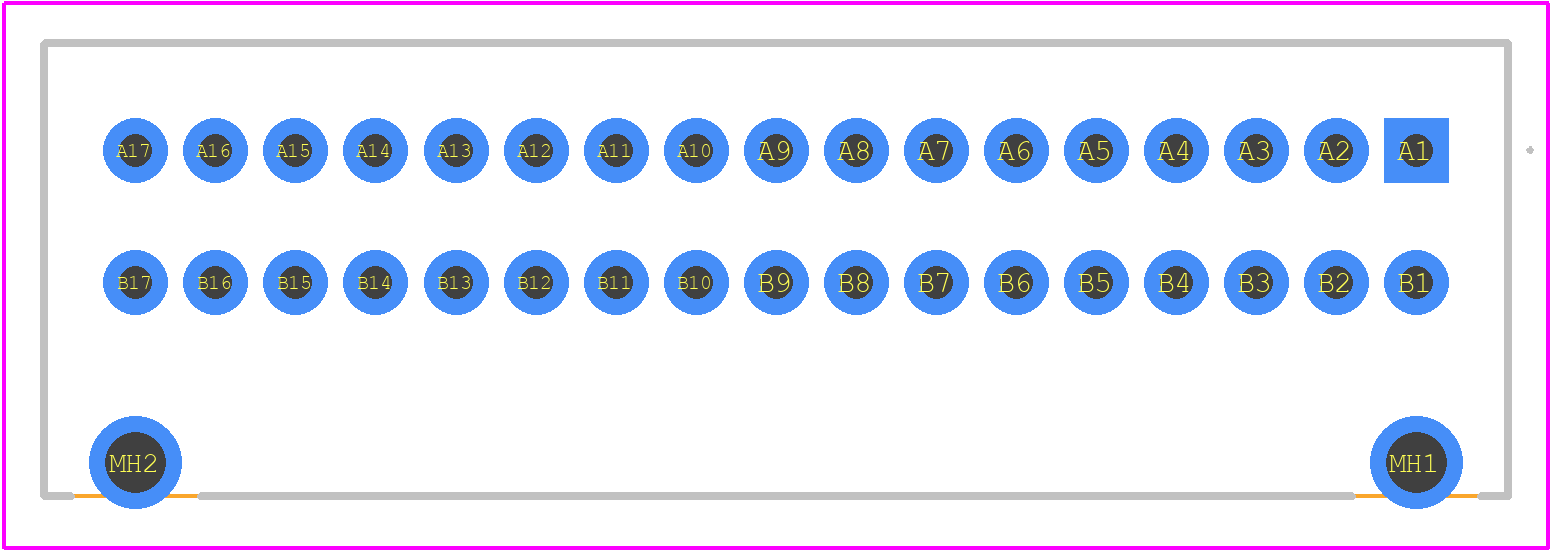

1-1871315-7 - TE Connectivity PCB footprint - Other - Other - 1-1871315-7-2
click to zoom
3D Models
1-1871315-7 - TE Connectivity - 3D model - Other - 1-1871315-7-2
click to zoom

1-1871315-7 Details

  • Manufacturer Part Number:

    1-1871315-7

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    28 Weeks, 1 Day

  • Manufacturer:

    TE Connectivity

  • Connector Type:

    RECTANGULAR POWER CONNECTOR

  • Contact Finish Mating:

    NOT APPLICABLE

  • Contact Material:

    NOT APPLICABLE

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

1-1871315-7 Overview

Use the download button to access the 1-1871315-7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like 1-187, or try a keyword search, such as Power Connectors
